ATC SCM50ASL (Active) |
|
|---|---|
| Drivers | HF 25mm Mid 75mm LF 234mm Super Linear |
| Amplitude Linearity ±2dB | 70Hz – 20kHz |
| Frequency Response -6dB | 38Hz & 25kHz |
| Matched Response | ±0.5dB |
| Dispersion | ±80° Coherent Horizontal ±10° Coherent Vertical |
| Max Continuous SPL @1m | 112dB SPL |
| Crossover Frequency | 380Hz & 3.5kHz |
| Input Connector | XLR |
| Input Sensitivity | 1V |
| Input Impedance | >10k Ohms Balanced XLR |
| Amplifier Output | HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMS |
| Overload Protection | Active FET Momentary Gain Reduction (Amplifiers) |
| Power Requirements | Voltage|| 100, 115, 230 (Factory Set) |
| Frequency | 50/60Hz |
| Power | Nominal 90 Watts, Driven 350 Watts |
| Accessories Inc. (Per Pair) | 2 X Speaker Stands (As Shown), 2 X Fabric Wrapped Grills, 8 X M8 X 1.25mm Stand Spikes And Nuts. |
| Cabinet Dimensions(HxWxD) | 717 X 304 X 480mm / 28.23 X 11.97 X 18.89″ Including Amps (Stands Add 250mm To Height) |
| Weight | 48.9kg |
SCM50SL (Passive) |
|
| Drivers | HF 25mm Mid 75mm LF 234mm Super Linear |
| Amplitude Linearity ±2dB | 70Hz – 20kHz |
| Frequency Response -6dB | 40Hz & 25kHz |
| Matched Response | ±0.5dB |
| Dispersion | ±80° Coherent Horizontal ±10° Coherent Vertical |
| Sensitivity (Sine Wave) | 85dB @ 1W @ 1m |
| Max Continuous SPL @1m | 112dB SPL |
| Crossover Frequency | 380Hz & 3.5kHz |
| Input Connector | Binding Posts/4mm Banana Plugs |
| Recommended Power Amplifier | 100 To 1500 Watts |
| Nominal Impedance | 8 Ohms (5.5 Ohm Minimum) |
| Accessories Inc. (Per Pair) | 2 X Speaker Stands (As Shown), 2 X Fabric Wrapped Grills, 8 X M8 X1.25mm Stand Spikes And Nuts. |
| Cabinet Dimensions(HxWxD) | 717 X 304 X 425mm / 28.23 X 11.97 X 16.73″ (Stands Add 250mm To Height) |
| Weight | 41.1kg |

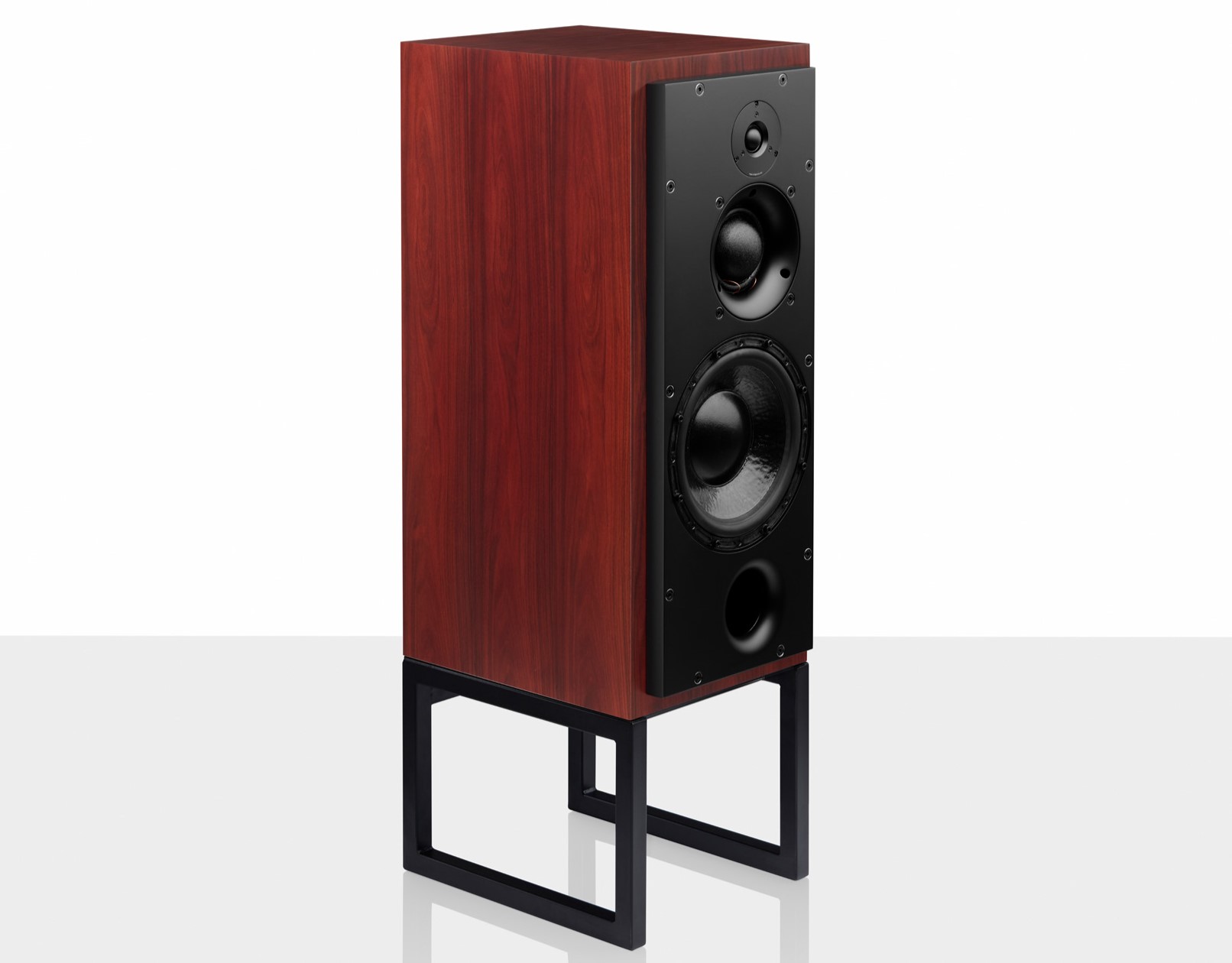

The SCM50 ASL (active) and SCM50 SL (passive) are designed to perform at their best in the recording studio or at home with the finest quality hi-fi equipment.
The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.
Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. Our active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.
Speakers are supplied with stands and fabric-wrapped grills.
| Colour | Black Ash (ATC), Cherry (ATC), Oak (ATC), PippyOak (ATC), Rosewood (ATC), Walnut (ATC) |
|---|---|
| Passive/ Active | Active, Passive |
