Features
- Transformer Coupled, Balanced Driven
- Vacuum Tube Headphone Amplifier
- 4-Pin XLR, 4.4mm, and 6.35mm Headphone Output
- ~A4 Footprint, Desktop Friendly Design
- Low, Mid, High Impedance Matched Headphone Outputs

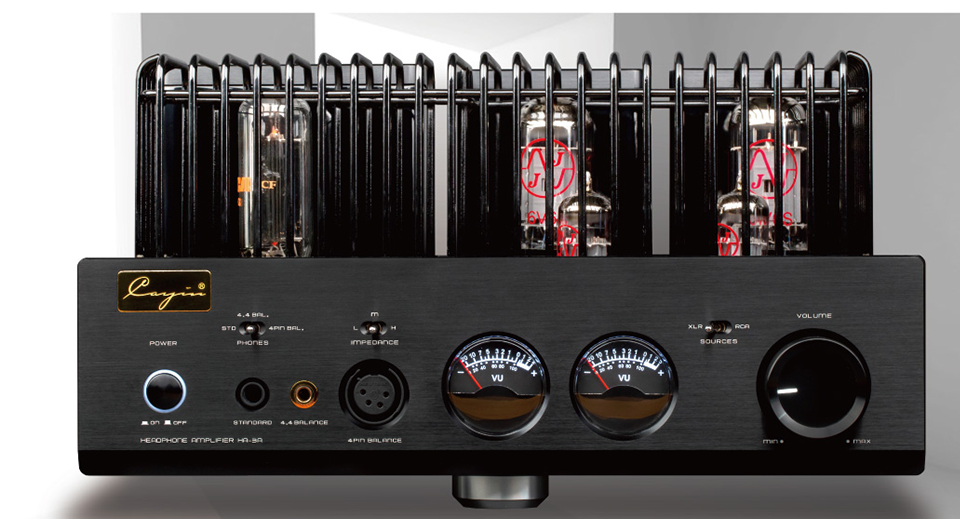

Cayin Audio HA-3A Vacuum Tube Headphone Amplifier
Cayin Audio HA-3A Vacuum Tube Headphone Amplifier
Available On Demo In Store
Available On Demo In Store
Guaranteed In Stock
Guaranteed In Stock
Free Delivery 2 - 4 DaysFree Delivery 2 - 4 Days
1-year-warranty
Trade in productTrade in product
Book a Demonstration
Available to collect immediatelyAvailable to collect immediately£1,499
Specifications
| Input Connector||XLR x2, RCA x 2 | |
|---|---|
| Tube | |
| Output | JJ 6V6S x2 |
| Driver | JJ 12AU7/ECC82 x2 |
| Rectifier | RCA 22DE4 x1 |
| Dimension | 306mm x 260mm x 170mm |
| Net Weight | 12kg |
| Output Tube Fuse | T1 25mAE250V |
| Power Consumption | 80W |
| Frequency Range | 18 Hz- 30kHz ±3dB |
| Headphone Impedance | L|| 8-64 0; M|| 65-2500; H|| 251-6000 |
| Headphone Connector | 4pin XLR x1, 4.4mm x1, 6.35mm x1 |
| S/N Ratio | 100dB (A-Weighted) |
Description
HA-3A- Accomplished by First Class Engineering
When exquisite design is accomplished by first-class engineering, aesthetics is backed up by rigorous production. The HA-3A vacuum tube headphone amplifier lets you enjoy your beloved music through your choice of headphones or earphones in a dedicated, engaging, and indulging retreat.
HA-3A might look compact and simple, but Cayin has devoted our renowned engineering, decades of audio equipment manufacturing and carefully selected performance-based
components to make this happen.
It contains a set of three 39x18mm XL shock-absorbing aluminium foot pads to provide firm and stable
amplifier placement on any hard flat surface.
2-rear & 1-front self-levelled placement to handle the extra weight on the back of the amplifier due to the power and output transformers.

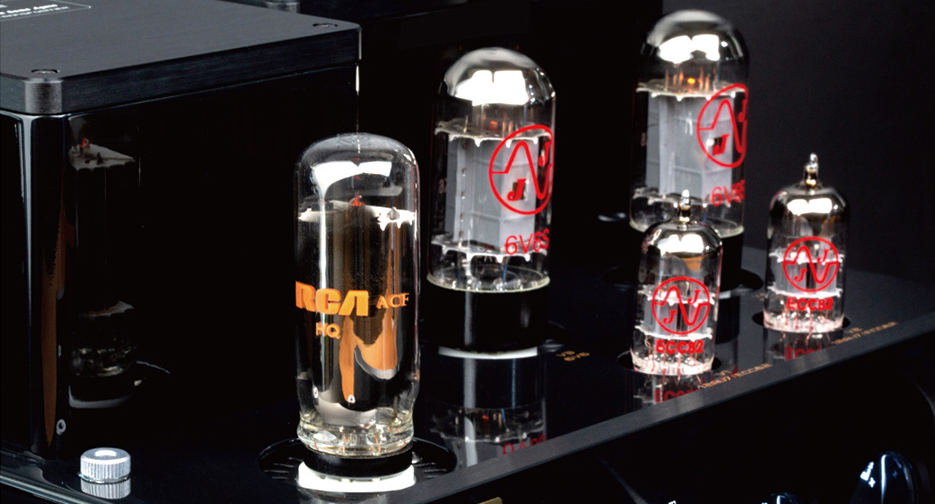

Single-ended Vacuum Tube Circuit
The HA-3A vacuum tube amplification is designed as a 2-stage single-ended circuit.
The 12AU7/ECC82 driver tubes will amplify the voltage level of the incoming audio signal so that the 6V6S output tubes will perform their amplification at a very linear condition.
Single-ended circuit design displaces the beautiful tone of your vacuum tubes without any cancellation.
Single-ended uses matched pairs instead of matched quad-set tubes, you can enjoy greater flexibility when you perform tube rolling.
Transformer-coupled, Balanced Driven
The 6V6S output drives a pair of proprietary output transformers that support single-ended and balanced headphone outputs.
The secondary winding of the output transformer provides an alternative phase and composes a balanced output, enabling a balanced driver from a single-ended vacuum tube amplification circuit. Both single-ended and balanced headphones are “original” outputs from the transformers.

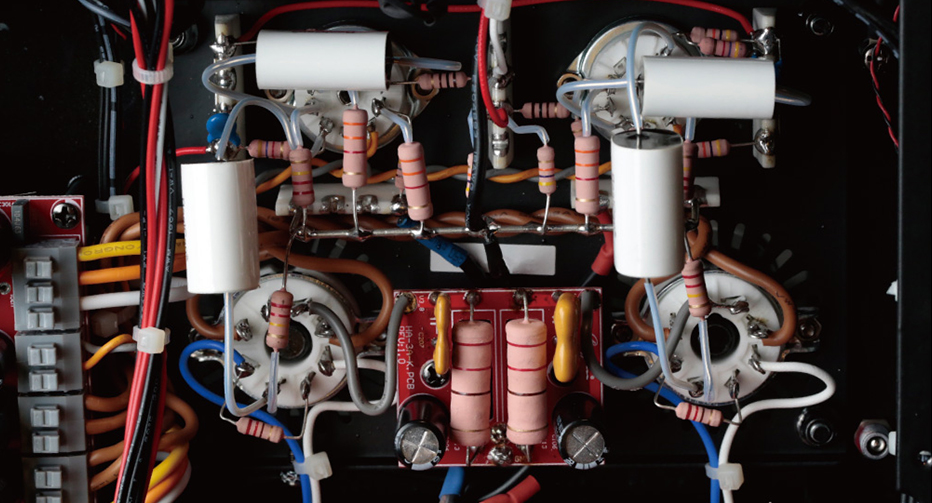

Point-to-Point Wiring with Craftmanship
Time-consuming, shortest signal path, better attention to detail, the entire circuitry is
hardwired by skilful craftsmen.
Implement circuit design with a high level of transparency and refinement, improving overall efficiency and conductivity.
In-house Designed Premium Power Transformers
Cayin always designs, winds and uses high inductance, high-efficiency power transformers in our products.
Reinforcing shielding design minimizes interference and noise while ensuring HA-3A works in the best condition.
High-Quality Volume Control
The High-performance 50KA*2 Dual Unit smooth potentiometer from ALPS offers durable, high-precision volume control with excellent operational fee.
Bundled Protection
Specially designed vacuum tube shielding cage to protect users from touching the red hot vacuum tubes during operation.
Dual Inputs
Balanced (XLR) and Single-ended (RCA) to cover a variety of inputs.
Balanced input will go through a pair of input transformers, and the + and – half cycle will merge to become a single-ended signal.
Additional information
| Colour | Black, Silver |
|---|
Warranty
Backed with a 1-year Cayin warranty
