Available to collect immediatelyAvailable to collect immediately£2,990
|
Parameter |
Specification |
|
Physical Specifications |
|
|
Model |
Cayin HA-6A MK2 |
|
Dimensions (Power Supply) |
160 ร 297 ร 185 mmยณ |
|
Dimensions (Amplifier) |
285 ร 297 ร 185 mmยณ |
|
Net Weight (Power Supply) |
8.2 kg |
|
Net Weight (Amplifier) |
11.2 kg |
|
Technical Specifications |
|
|
Tube Configuration |
JJ 12AU7/ECC82 ร2, Genalex KT88 ร2, JJ GZ34/5AR4 ร2 |
|
Power Consumption |
130 W |
|
External Main Fuse |
220Vโ240V: T1AL250V; 100Vโ120V: T2AL250V |
|
External High Voltage Fuse |
T160mAE250V |
|
Working Condition |
Temp: 0ยฐCโ40ยฐC, Humidity: 20%โ80% |
|
Storage Condition |
Temp: โ20ยฐCโ70ยฐC, Humidity: 20%โ90% |
|
Audio Specifications |
|
|
Headphone Output Power (6.35 mm) |
UL: 3500 mW + 3500 mW; TR: 2300 mW + 2300 mW |
|
Headphone Output Power (4.4 BAL) |
UL: 1000 mW + 1000 mW; TR: 650 mW + 650 mW |
|
Headphone Output Power (4-Pin BAL) |
UL: 4500 mW + 4500 mW; TR: 3000 mW + 3000 mW |
|
Frequency Range |
10 Hzโ26 kHz +3 dB; 1 Hzโ21 kHz ยฑ1 dB |
|
THD+N (Headphone) |
0.3% (1 kHz, 200 mW; Rated output power <5%) |
|
Sensitivity |
240 mVโ820 mV |
|
S/N Ratio (Headphone) |
104 dB (A-Weighted) |
|
Headphone Impedance Range |
L: 8โ64 ฮฉ; M: 65โ250 ฮฉ; H: 251โ600 ฮฉ |
|
Preamplifier Specifications |
|
|
Maximum Output Voltage |
6 V |
|
Gain |
20 dB |
|
THD (Preamp) |
0.2% (2 V RMS) |
|
S/N Ratio (Preamp) |
98 dB (A-Weighted) |
|
Input Sensitivity (Preamp) |
200 mV |
|
Connectivity Specifications |
|
|
Input Impedance |
RCA: 32 kฮฉ; XLR: 16 kฮฉ |
|
Input Connectors |
XLR, RCA |
|
Headphone Connectors |
6.35 mm ร1; 4.4 mm BAL ร1; 4-pin XLR ร1 |
|
Preamp Output Connector |
RCA |
|
Tube Substitution Options |
|
|
Genalex KT88 Compatible |
EL34, KT66, 6CA7, 6L6, KT77, KT88, 6550, KT90, KT120, KT150 |
|
JJ GZ34/5AR4 Compatible |
GZ34, GZ37, 5AR4, 5V4G, 5R4G, 5U4G, 5Y3GT, 5DJ4 |
|
JJ 12AU7/ECC82 Compatible |
12AU7, ECC82, ECC802S |
| Feature | HA-6A MK2 | HA-6A |
| Appearance | Dual-chassis Design | Single-chassis Design |
| Power Supply | Outboard Power Supply Design; Multi-stage Tube Regulate Power Supply | Multi-stage Tube Regulate Power Supply |
| Preamp Tubes | High Voltage Rectifier: JJ GZ34/5AR4 ร2 (stable power supply with enhanced current output)Voltage Amplification Stage: JJ 12AU7/ECC82 ร2 | High Voltage Rectifier: RCA 22DE4 ร2Voltage Amplification Stage: Electro-Harmonix 12AU7EH ร2 |
| Power Tubes | Gold Lion Genalex KT88 | Electro Harmonix EL34 |
| Headphone Output Specification | THD: 0.3% (1 kHz)S/N Ratio: 104 dB | THD: 1% (1 kHz)S/N Ratio: 98 dB |
| Pre Output | Preamplifier Output to connect with Power Amplifier | No Pre Output |
| Remote | Standard with Remote | No Remote |
In-house output transformers provide impedance-matched outputs for low (8โ64ฮฉ), mid (65โ250ฮฉ), and high (251โ600ฮฉ) loads, ensuring natural, balanced sound. With 6.35mm, 4.4mm, and 4-pin XLR outputs, it delivers up to 4500mW per channel for demanding headphones, while the optimized 4.4mm jack suits sensitive IEMs with reduced output and improved S/N performance

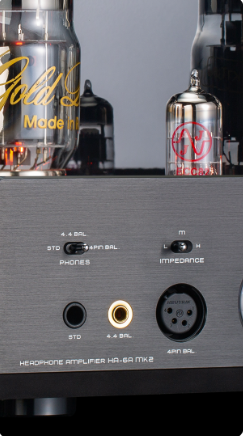

The 4-pin XLR output is a full-fetched balanced output but the 4.4mm headphone output is optimized for a wider range of applications, including high-sensitivity portable headphones and IEMs:
4-pin XLR (Balanced): UL 4500mW + 4500mW; TR 3000mW + 3000mW
4.4mm (Balanced):UL 1000mW + 1000mW; TR 650mW + 650mW
6.35mm (Single-ended):UL 3500mW + 3500mW; TR 2300mW + 2300mW

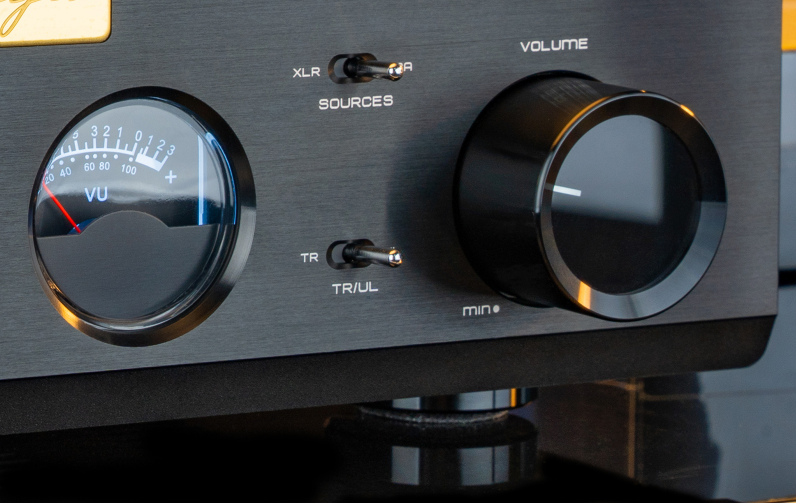

The HA-6A MK2 features a front-panel switch that lets you choose between Triode (TR) and Ultra-linear (UL) operation. Enjoy the lush, smooth presentation of Triode mode or the dynamic, powerful performance of Ultra-linear mode tailored to your music and mood with a single touch.
The HA-6A MK2 introduces a dedicated PRE-OUT output, elevating it from a headphone amplifier into the centrepiece of your audio system. Connect it to external power amplifiers or active speakers to create a refined desktop or small-scale Hi-Fi setup.
| Colour | Black, Silver |
|---|
