£999
| IDAC-8 Digital Inputs | |
|---|---|
| I2S | |
| Connector | HDMI Type A (The device transmits I2S signal with HDMI connector, it is not compatible with standard HDMI device) |
| PCM Input | 16Bit to 32Bit, 44.1kHz to 768kHz |
| DSD Input | DSD-64 to DSD512 (22.6MHz) |
| USB DAC Input | |
| Connector | USB Type-B |
| PCM Input | 16Bit to 32Bit, 44.1kHz to 768kHz |
| DSD Input | DSD-64 to DSD512 (22.6MHz) Native; DoP256 (11.2MHz) |
| Compatibility | Windows 10/11, macOS, Android, iOS* |
| Mode of Operation | Asynchronous USB Audio 2.0 Class |
| AES/EBU | |
| Connector | XLR3 Male |
| PCM Input | 16Bit to 24Bit, 44.1kHz to 192kHz |
| DSD Input | DoP64 (DSD over PCM 2.82MHz) |
| Impedance | 1100 |
| Coaxial | |
| Connector | RCA, BNC |
| PCM Input | 16Bit to 24Bit, 44.1kHz to 192kHz |
| DSD Input | DoP64 (DSD over PCM 2.82MHz) |
| Impedance | 75Ω |
| Optical | |
| Connector | TOSLINK |
| PCM Input | 16Bit to 24Bit, 44.1kHz to 176.4kHz |
| DSD Input | DoP64 (DSD over PCM 2.82MHz) |
| ¡DAC-8 Product Information | |
| DAC | AK4191 Digital ΔΣ Modulator 2x AK4499EX (Mono Mode) |
| Volume Control | NJW1195AV 4-channel electronic controlled analog volume |
| Display | 3.12″ 256 x 64 OLED Dot-matrix |

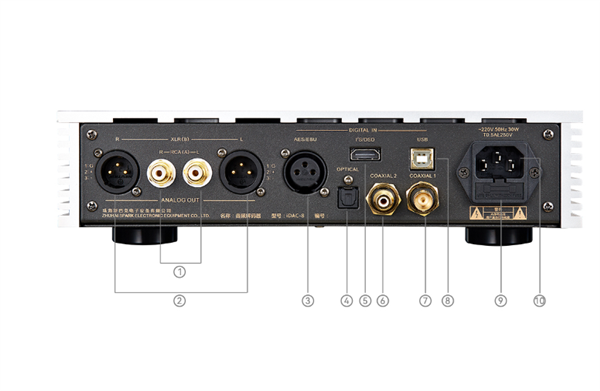

| Digital Inputs | I2S, USB Audio, Coaxial (RCA), Coaxial (BNC), AES/EBU, Optical, |
| Analog Outputs | Balanced|| XLR x2, Single-ended|| RCA x2 |
| Weight | ~4.6kg |
| Vacuum Tube | RCA|| 6H6b-B x2, XLR|| 6H6b-B x2 |
| Output Modes | Fixed level||Line Out, Variable level||Pre Amp Out |
| Power Supply | 45W toroidal transformer |
| Power Management | 29,200uF Nichicon filtering capacitors + LDO + Regulators |

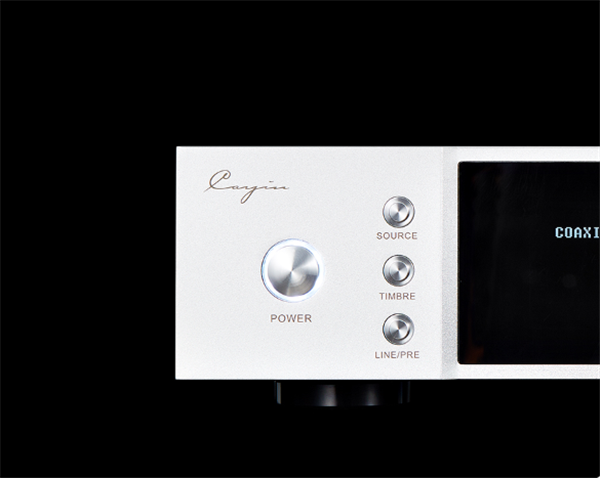

| Physical Control | Power On/Off, Source, Timbre, Line/Pre, Menu/Volume Knob |
| Dimension | 270x215x70 (mm) (L×W×H) |

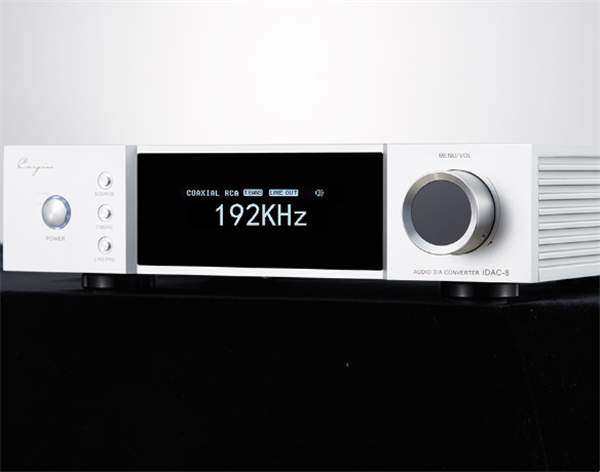

Dual Timbre Digital Analog Converter
You can select the desired output mode to match your amplifiers at the push of a button. Pre Out: variable output (with volume control) suitable with power amplifier and active speakers. Line Out: fixed level output (bypassing volume control) suitable with integrated amplifiers.
Fully Balanced AK4191+ Dual AK4499EX DAC Circuit AKM’s new flagship AK4191+AK4499EX chipset was employed to handle the digital-to-analogue conversion function. With two AK4499EX, one for each channel, the DAC will always operate in MONO mode, delivering the full potential of the chipset in a fully balanced circuit.
Single-ended: 2x 6H6b-B, one per channel. The first stage of the timber circuit consists of two triodes operating in parallel inside the 6H6b-B tube as a cathode follower. This will enhance current drive capability and reduce noise. A fast switching on-resistance MOSFET from Vishay is connected in series as a second-stage voltage follower. Balanced: 2x 6H6b-B, one per channel. The two triode tubes inside the 6H6b-B cathode follower are responsible for the current amplification and driving of the positive and negative phases of the same channel respectively.
High-performance dual-channel, low-noise, audio-grade operational amplifiers from Texas Instruments are used in the solid-state timbre circuit. The single-ended circuit requires one Op-Amp only while the balanced circuit involves two pieces.

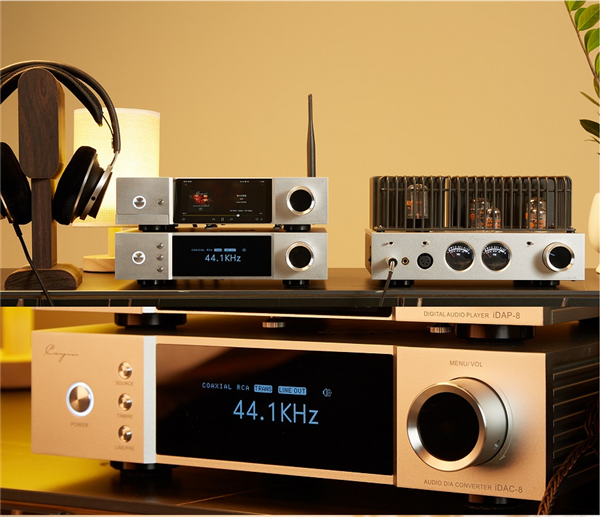

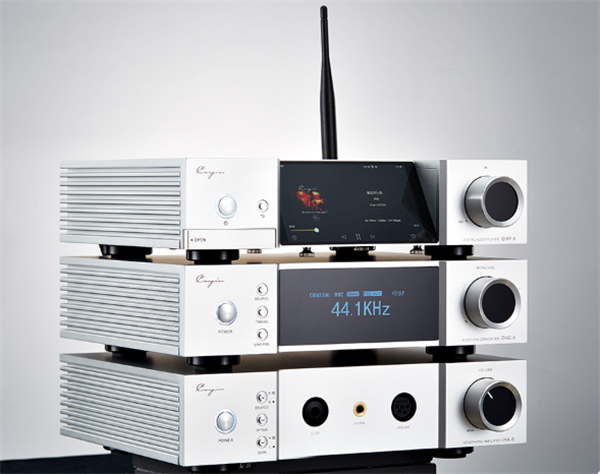

The iDAC-8 is a new member of the Cayin i-series products, it shares a unified design language with the iDAP-8 digital streamer and the iHA-8 headphone amplifier. Each product can be used individually or can be combined to form a set.

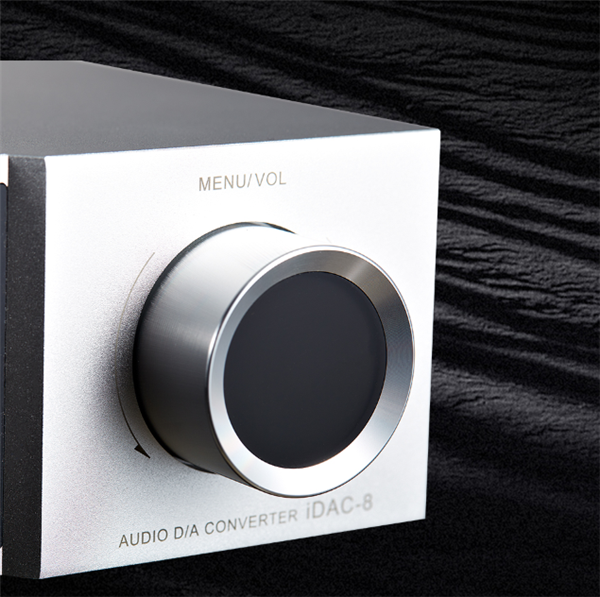

Volume control plays an important role when Preamp mode is engaged. On top of providing a precise adjustment, it is the key to transparent and accurate playback.
The NJW1195AV volume controller in iDAP- 8 adjusts volume via a 4-channel low noise, low distortion resistance ladder circuit that offers good inter-channel consistency and a highly accurate audio experience.
While controlled electronically, the volume is adjusted purely in the analogue domain.
Featuring an L-shaped aluminium cover plate, precision mould extrusion, CNC precision machining, fine sandblasting, and anodized surface treatment, the DAC has a uniform and delicate texture, making it durable over time.
The left and right side panels are designed as ridged heat sinks. The extra surface area enhances heat exchanges and improves heat dissipation capacity. The optimized operation condition allows the DAC to deliver its best performance.
| Colour | Black |
|---|
