Features
- Featuring an L-shaped aluminium cover plate
- Precision mould extrusion
- CNC precision machining
- fine sandblasting
- anodized surface treatment
- The digital streamer has a uniform and delicate texture, making it durable over time.

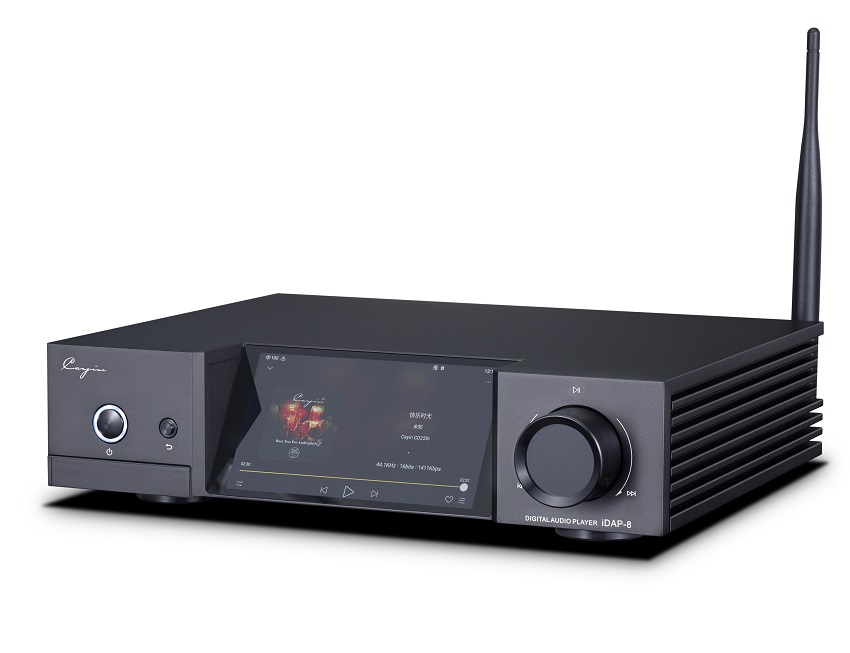

Cayin Audio iDAP-8 Fully-customized Android Digital Streamer
Cayin Audio iDAP-8 Fully-customized Android Digital Streamer
Available For Demonstration In Store
Available For Demonstration In Store
Guaranteed In Stock
Guaranteed In Stock
Free Delivery 1 - 3 DaysFree Delivery 1 - 3 Days
1-year-warranty
Trade in productTrade in product
Book a Demonstration
Available to collect immediatelyAvailable to collect immediately£1,149
Specifications
| ¡DAP-8 Product Information | |
|---|---|
| MCU | Snapdragon 660 2.2GHz |
| Memory | 6GB LPDDR4 RAM |
| Storage | 128GB Internal Storage; 2.5″ SATA3.0 x1 (up to 4TB) SD x1 (up to 1TB); External USB |
| Oscillator | Accusilicon Ultra-low 20ppm phase noise Femtosecond (Oscillator x 2) |
| Antenna | 2.4G/5G 5dBi High Gain |
| Digital Interface | I2S, USB Audio, AES/EBU, Optical, Coaxial (RCA), Coaxial (BNC), |
| Display | 5″ FHD (1920 x 1080) TFT multi-point touch screen |
| Power | 45W toroidal transformer |
| Physical Control | Standby On/Off, Return Playback Control Knob |
| Weight | ~4.4kg |
| System | Customized Android 9 |
| Google Play | Preinstalled Applications |
| File format | DSF/DFF/SACD-ISO/ FLAC/AIFF/WAV/APE/ALAC/ WMA/MP3/AAC/OGG/Opus |
| Preinstalled | Cayin Music, HiBy Music (with HiByCast) |
| Lossless | DTA bypass Android SRC |
| LAN | IEEE 802.3/IEEE 802.3u, Support 1000M/100M/10M |
| Wi-Fi | 2.4GHz/5GHz, EEE 802.11a/b/g/n/ac |
| Bluetooth | BTv5.0 + BR/EDR + BLE |
| Firmware Update | USB/SD/OTA |
| Dimension | 270x215x70 (mm) (L×W×H) |
| ¡DAP-8 Digital Interface | |
| I2S | |
| Connector | HDMI Type A (The device transmits an I2S signal with an HDMI connector, it is not compatible with a standard HDMI device) |
| USB DAC Out | |
| Connector | USB Type-A |
| PCM Output | 16Bit to 32Bit, 44.1kHz to 768kHz |
| DSD Output | DSD-64 to DSD512 (22.6MHz) |
| AES/EBU | |
| Connector | XLR Male |
| PCM Output | 16Bit to 32Bit, 44.1kHz to 768kHz |
| DSD Output | DSD-64 to DSD512 (22.6MHz) |
| Coaxial | |
| Connector | RCA, BNC |
| PCM Output | 16Bit to 24Bit, 44.1kHz to 192kHz |
| DSD Output | DoP64 (DSD over PCM 2.82MHz) |
| Optical | |
| Connector | TOSLINK |
| PCM Output | 16Bit to 24Bit, 44.1kHz to 192kHz |
| DSD Output | DoP64 (DSD over PCM 2.82MHz) |
| PCM Output | 16Bit to 24Bit, 44.1kHz to 192kHz |
| DSD Output | DoP64 (DSD over PCM 2.82MHz) |
| Bluetooth | |
| BTv5.0 | |
| Transmit Codec | LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) |
| Receive Codec | LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) |
Description
Cayin Audio ¡DAP-8
Support Browsing and Playback on LAN
Once connected to the (NAS), you can read all the music files on the iDAP-8 conveniently, and play your favorite tunes on the NAS without downloading to the digital streamer.
Expandable Storage for Jumbo Music Library
Dedicated HDD/SSD Compartment
SATA3.0 data interface supports up to 4TB 2.5-inch hard disk or SSD,
Facilitates local music library that can be reliably playback via different music player applications.
The displayed hard drive is for illustrative purposes only and needs to be purchased separately
Your Choice of Storage
Your Choice of Playback
Supports playback of music files stored internally, on SD cards, USB disks, hard disks, and card readers
Fully-customized Android- based Audio System
Enjoy Music From All Over the Internet
Built on a powerful operating system, the iDAP-8 is meticulously crafted. Popular music apps are pre-installed and users can download and install more apps, it is user-friendly from the moment you turn it on and you can enjoy an intuitive music experience.
All-New UI Design Provides Interactive Music Experience
Equipped with a 5″ FHD TFT multi-touch screen, displaying text, graphical and high-res album art sharp and clear
Intuitive and comprehensive, all information is well organized and properly presented
Based on ergonomic principles, the 59° tilted screen makes it easy to view and control
Cayin iDAP-8 Digital Streamer Functional Diagram
Carefully Select Premium Components
A Compliment to Cutting-edge Engineering
Accurate Conversion: The Key to Musicality in Digital Audio
Two specialized Accusilicon audio-grade active femtosecond oscillators were users. 45.1584MHz: DSD and multiplies of 44.1kHz 49.152MHz:
multiplies of 48kHz
Ultra-low phase noise at 200fS (@100MHz) minimizes jitter, digital artefact, and signal loss, this will enhance conversion accuracy and provide a better audio experience.
In-house Developed High-quality Power Supply Transformer
Cayin insists on designing and building our transformers because they play a vital role in audio equipment.
The 45W toroidal transformer in iDAP-8 is winded by high-purity copper enamelled wire and coupled with specialized shielding packaging. We have also introduced numerous circuit protection measures in our design. These techniques will lower the magnetic interference and protect the circuit from noise interference dramatically.
Powered by Qualcomm SDM660 eight-core processor
Faster data read/write speeds, high-performance, low-latency memory pool.
Smooth and effective multitasking, manage internal storage, SD card, USB, and hard disk files simultaneously.
Remote Control as if the World Is Your Oyster
Select your preferred control option to manoeuvre your local and online music library in different scenarios.
• Touch screen
Physical buttons and menu knob
HibyCast screen mirroring on
iOS/Android devices
• HibyLink BT resource sharing on
iOS/Android devices
• Universal BLE (Bluetooth Low Energy) Remote Controller
Exquisite, Compact, and Blend In
The iDAP-8 is a new member of the Cayin i-series products, it shares a unified design language with the iDAC-8 digital-analogue converter and the iHA-8 headphone amplifier.
Each product can be used individually or can be combined to form a set.
Dimensions: 270*215*70(mm)
Weight: 4.4KG
It has a small and compact body, making it easy to place and match with other home audio or desktop devices.
Featuring an L-shaped aluminium cover plate, precision mould extrusion, CNC precision machining, fine sandblasting, and anodized surface treatment, the digital streamer has a uniform and delicate texture, making it durable over time.
The left and right side panels are designed as ridged heat sinks.
The extra surface area enhances heat exchanges and improves heat dissipation capacity.
The optimized operation condition allows the DAC to deliver its best performance.
Panel Description
1) Standby ON/Off
2) USB Port and SD Card Slot
3) Power Indicator
4) Return
5) Display Screen
6) Playback Control (Next/Pre/Play/Pause)
Additional information
| Colour | Black, Silver |
|---|
Warranty
Backed with a 1-year Cayin Audio warranty
