DCS Bartók APEX Streaming DAC

DCS Bartók APEX Streaming DAC

Product code:
BARTÓK APEXBARTÓK APEX
Available For demonstration In Store
Available For demonstration In Store
Product codeN/A
Availability In Stock
Guaranteed In Stock
Guaranteed In Stock
Store Purchase Only
Store Purchase Only
5-year-warranty
Trade in product
Trade in product
Book a Demonstration
Available to collect immediately
Available to collect immediately

£19,000

Trade In

Want to Trade In? Get in Touch.

Demonstration

Request a demo for

DCS Bartók APEX Streaming DAC

ENQUIRE

Features

  • Latest dCS Digital Processing Platform
  • dCS Ring DAC for high-quality sound
  • Streams from TIDAL, Qobuz, Deezer, and Internet radio
  • Roon Ready, AirPlay, Spotify Connect, and UPnP compatible
  • Multiple digital inputs (USB, AES, Dual AES, S/PDIF)
  • Headphone amplifier with balanced and unbalanced outputs
  • Supports encrypted SACD data
  • Switchable DSD upsampling and user-selectable filters
  • Auto clocking system for minimized jitter
  • Multi-stage power regulation and twin mains transformers
  • Firmware-upgradeable for future updates

Specifications

Type Upsampling Network DAC with Headphone Amplifier
Colour Silver or Black
Dimensions 444mm / 17.5” x 430mm / 17.0” x 115mm / 4.6“. Allow extra depth for cable connectors
Weight 16.7kg / 36.8lbs
Converter Type dCS proprietary Ring DAC™ topology

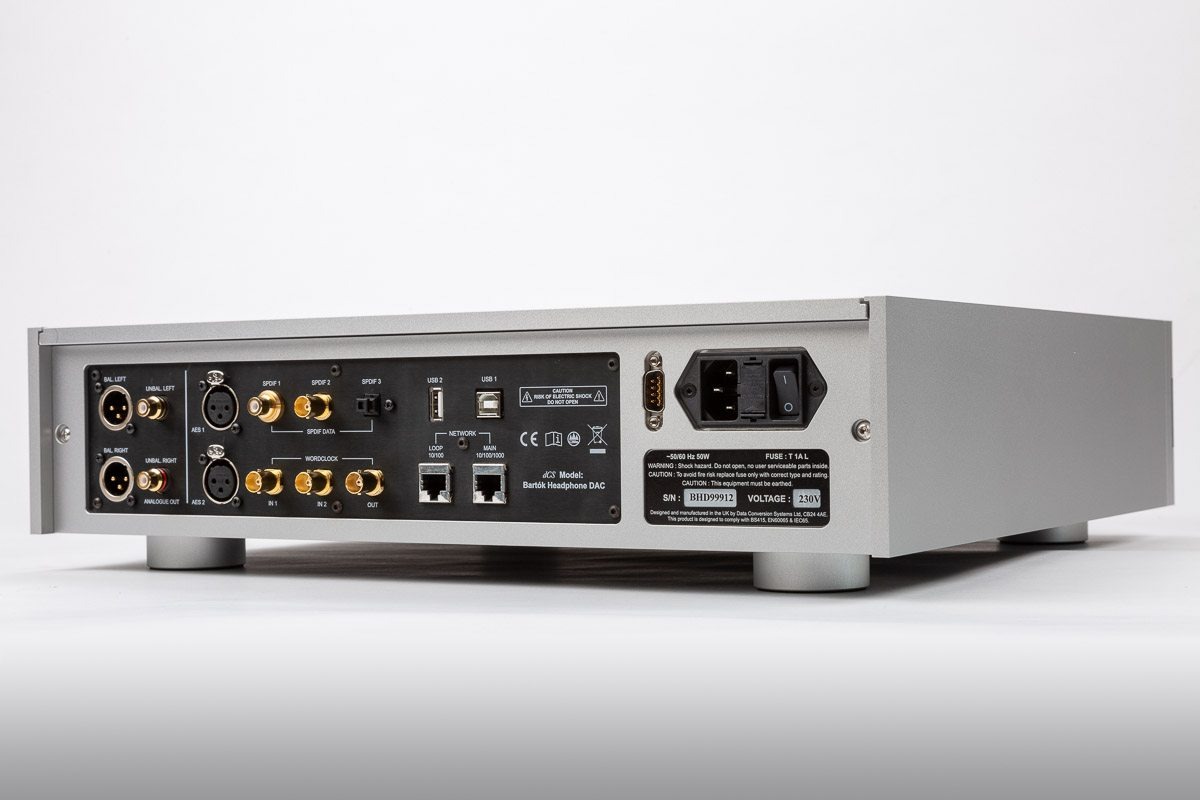

Digital Inputs The Ethernet network port on RJ45 connector accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DFF/DSF format; USB 2.0 interface on B-type connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DoP format; USB On-The-Go interface on A-type connector, accepts 24-bit 44.1 – 384kS/s PCM, DSD/64 & DSD128 in DFF/DSF format; 2 x AES/EBU inputs on 3-pin female XLR connectors, accepts 24-bit 44.1 – 192kS/s PCM, DSD/64 & DSD/128 in DoP format; 1 x Dual AES pair, accepts 24-bit 88.2 – 384kS/s PCM, DSD/64 & DSD/128 in DoP format; 1 x SPDIF on RCA Phono connector, accepts 24-bit 44.1 – 192kS/s PCM & DSD/64 in DoP format; 1 x SPDIF on BNC connector, accepts 24-bit 44.1 – 192kS/s PCM & DSD/64 in DoP format; 1 x SPDIF optical on TOSLINK connector, accepts 24-bit 44.1 – 96kS/s PCM
Analogue Output 1 x pair balanced outputs on 2 x XLR connectors. Output levels|| 0.2V, 0.6V, 2V, 6V rms for a full-scale input, set in the menu. Output impedance|| 3Ω. Maximum load||600Ω (10k-100kΩ is recommended); 1 x pair unbalanced outputs on 2 x RCA connectors. Output levels|| 0.2V, 0.6V, 2V, 6V rms for a full-scale input, set in the menu. Output impedance|| 52Ω. Maximum load|| 600Ω (10k-100kΩ is recommended)
Headphone Outputs 1 x stereo balanced output 4-pin male XLR connector; 1 x stereo unbalanced output on 6.35mm (1/4”) 3-pole jack. Full-scale output levels|| 1.4W rms into 33Ω, 0.15W rms into 300Ω. Minimum headphone impedance|| 33Ω
World clock I/O         2 x Word Clock Inputs on 2 x BNC connectors, accept standard Word Clock at 44.1, 48, 88.2, 96, 176.4 or 192kHz. The data rate can be the same as the clock rate or an exact multiple of the clock rate. Sensitive to TTL levels. 1 x Word Clock Output on 1x BNC connector. With Sync Mode set to Master, a TTL-compatible Word Clock is output
MQA Full decoding and rendering of MQA data from the Network and USB2 inputs. Final rendering of unfolded MQA data only from the other inputs
Residual Noise 24-bit data|| Better than –113dB0, 20Hz – 20kHz unweighted (6V output setting)
LR Crosstalk Better than -115dB0, 20Hz – 20kHz
Spurious Response Better than -105dB0, 20Hz – 20kHz
Filters PCM mode|| Up to 6 filters give different trade-offs between the Nyquist image rejection and the phase response. DSD mode|| 4 filters progressively reduce out-of-audio band noise level
Conversions DXD as standard or optional DSD upsampling
Software Updates Download and update functionality available via dCS Mosaic Control app
Local Control dCS Mosaic Control app for unit configuration and playback. RS232 interface (controlled by a 3rd party automation system). dCS Universal Remote is available as an optional extra
Power Supply Factory set to either 100, 115/120, 220 or 230/240V AC 50/60Hz
Power Consumptions 30 Watts typical / 50 Watts maximum

Description

BARTÓK APEX

Bartók APEX is a distillation of our past, present, and future—30 years of innovation in a single beautiful, flexible, and futureproof chassis embodying the essence of dCS. Combining a DAC, Music Streamer, Upsampler, Pre-amp, and (optional) Headphone Amplifier, the Bartók APEX offers a singular experience for headphone and stereo listeners. Now with the APEX Ring DAC, our next-generation DAC hardware, we’ve once again redefined the state-of-the-art for digital audio. This upgrade allows us to take Bartók world-leading measured performance to a new level—technology that provides an even more immersive musical experience.


APEX

APEX is a new, enhanced version of the dCS Ring DAC: the Digital Analogue conversion system found inside all dCS DACs. First developed for our professional audio products, this unique system has been subject to continuous development and refinement over the past three decades. It remains renowned for its technical and sonic performance.

We’ve reconfigured the Ring DAC’s circuit board with APEX and developed a new analogue output stage. This has allowed us to further reduce distortion, and increase linearity, resulting in a range of measured and sonic improvements – including an even greater sense of dynamic drive, detail, finesse and vitality.


BARTÓK APEX

Designed for ease of use and superior sound, the Bartók APEX can flex to serve whatever mood or music you ask it to. With its wide range of inputs and outputs, high-performance UPnP streamer, and extensive choice of filters, it offers limitless capabilities and an effortless listening experience.

Compatible with all major file formats, it provides instant access to music from a wide range of streaming services, including Roon, TIDAL, Spotify, Qobuz, Deezer and Internet Radio. It also plays files directly from personal devices or storage drives via USB, AES or S/PDIF inputs, and from Apple devices using Apple Airplay.

Its streaming interface supports all major lossless codecs, plus DSD in native and DoP formats, and ensures true 24-bit resolution audio when streaming via Ethernet. Playback is easily managed via our Mosaic app, which allows you to access music from multiple sources and adjust the settings on your system through a single, intuitive interface.

Available on all Android and iOS devices, the Mosaic control app is supported by a powerful processing platform that runs on custom code developed by dCS. This software-driven design means its performance can be upgraded and enhanced over time, allowing us to add new streaming functionalities as platforms and services develop.


HeadFi Reimagined

The Bartók APEX custom headphone amplifier is the embodiment of our uncompromising approach to design. Starting with the dCS analogue output stage, benchmark performance is maintained with true Class A operation through its balanced and unbalanced outputs.

Engineered to deliver a spectacular experience on both high and low impedance headphones, in balanced and unbalanced formats, it can handle a vast range of headphone models regardless of efficiency or impedance.

Its design also features dedicated power supplies for analogue and digital processing, which are isolated from the DAC section of the system for enhanced precision with minimal crosstalk and noise.

This unique architecture allows us to deliver a powerful and transparent performance that uncovers the unique character and potential of your chosen headphones.

Headphone use is simple: just plug in your chosen pair, switch the line output and adjust volume levels using the volume dial or our Mosaic control app (no need for a separate preamp). With a choice of four adjustable gain settings, you can adjust its performance to suit your setup, ensuring optimal sound across a vast range of systems.

Along with its groundbreaking amplifier, the Bartók APEX Headphone DAC features a unique processing platform that reimagines how sound is optimised for headphones. Expanse is an optional feature that can be engaged with a wide range of stereo recordings to provide a heightened sense of realism, and a greater sense of space and depth.


Arresting sound, ingenious design

The Bartók APEX retains the original’s powerful, dynamic and detailed soundscape and adds elements of resolution and refinement previously only achievable with the Rossini or Vivaldi APEX. dCS engineered Bartók APEX to inform and inspire.

APEX sets a new benchmark for transparency. It organically resolves the finest details and uncovers textures and subtleties that most systems overlook. From the broadest dynamic swings in volume to the subtlest shifts in tone, Bartók APEX reveals each aspect of a recording with a sense of effortless refinement and control.

Designed and hand-assembled at our headquarters in Cambridgeshire, England, Bartók APEX is born from meticulous craft, exhaustive development, and obsessive attention to detail—a relentless pursuit of musical purity that has inspired us to reimagine the limits of sound reproduction.

Sharing the same electronics as our Vivaldi and Rossini systems, it features the latest generations of our pioneering Ring DAC™ APEX, clocking architecture, and digital processing platform —a unique combination of hardware and software unrivalled in its sonic and technical performance.

Bartók APEX combines precision engineering with an elegant and timeless aesthetic. Standard-setting build quality means Bartók APEX withstands even the most intensive use and reliably delivers superb sound quality at all volume settings and outputs. With flexible and upgradable software and hardware, Bartók can grow and evolve, providing a state-of-the-art listening experience for years to come.

Additional information

Colour

Black, Silver

Warranty



Backed with a 5-year dSC warranty
