£1,499
Product information
|
Item |
Spec |
|
Model |
Evo Era |
|
Tubes |
KORG Nutube 6P1 × 2 |
|
DAC |
ES9069Q × 2 / String R-2R (OS / NOS) |
|
USB / Bluetooth |
XMOS XU316 / Qualcomm QCC5181 |
|
Battery |
3.87 V / 10,000 mAh |
|
Weight |
Approx. 1,025 g |
|
Dimensions |
182 × 182 × 29 mm (excluding knob) |
Output level and impedance
|
Item |
3.5 mm SE |
4.4 mm Bal |
|
Line output level (47 kΩ) |
2.1 V |
4.2 V |
|
Line output impedance |
100 Ω |
100 Ω |
|
Headphone output impedance |
0.5 Ω |
1 Ω |
Headphone output power (THD+N ≤ 0.5%)
|
Mode / Load |
3.5 mm SE |
4.4 mm Bal |
|
P / 16 Ω |
500 mW |
850 mW |
|
P / 32 Ω |
310 mW |
700 mW |
|
P / 150 Ω |
80 mW |
210 mW |
|
P+ / 16 Ω |
600 mW |
1050 mW |
|
P+ / 32 Ω |
380 mW |
880 mW |
|
P+ / 150 Ω |
98 mW |
260 mW |
|
Turbo / 16 Ω |
710 mW |
1240 mW |
|
Turbo / 32 Ω |
465 mW |
1050 mW |
|
Turbo / 150 Ω |
117 mW |
315 mW |
|
DC IN / 16 Ω |
850 mW |
1700 mW |
|
DC IN / 32 Ω |
550 mW |
1500 mW |
|
DC IN / 150 Ω |
120 mW |
460 mW |
Audio performance: 3.5 mm single-ended
|
Parameter |
Fully_TR |
Hybrid Lumina |
|
Line freq. response |
60k / 30k / 29k Hz |
50k / 30k / 27k Hz |
|
Line THD+N |
0.0022 / 0.0028 / 0.0030% |
0.25% (all) |
|
Line dynamic range |
121 / 107 / 107 dB |
120 / 107 / 107 dB |
|
Line SNR |
123 / 121 / 121 dB |
120 / 119 / 119 dB |
|
Line crosstalk |
90 dB |
90 dB |
|
HP freq. response |
52k / 30k / 27k Hz |
45k / 29k / 26k Hz |
|
HP THD+N |
0.0025 / 0.0022 / 0.0025% |
0.25% (all) |
|
HP dynamic range |
121 / 108 / 107 dB |
119 / 108 / 107 dB |
|
HP SNR |
121 / 118 / 118 dB |
119 / 117 / 117 dB |
|
HP crosstalk |
72 dB |
72 dB |
Audio performance: 4.4 mm balanced
|
Parameter |
Fully_TR |
Hybrid Lumina |
|
Line freq. response |
60k / 30k / 29k Hz |
50k / 30k / 27k Hz |
|
Line THD+N |
0.0025 / 0.0023 / 0.0026% |
0.25% (all) |
|
Line dynamic range |
125 / 109 / 108 dB |
121 / 108 / 108 dB |
|
Line SNR |
126 / 120 / 120 dB |
122 / 118 / 118 dB |
|
Line crosstalk |
105 / 102 / 102 dB |
103 / 100 / 100 dB |
|
HP freq. response |
52k / 30k / 27k Hz |
45k / 29k / 26k Hz |
|
HP THD+N |
0.0025 / 0.0024 / 0.0028% |
0.25% (all) |
|

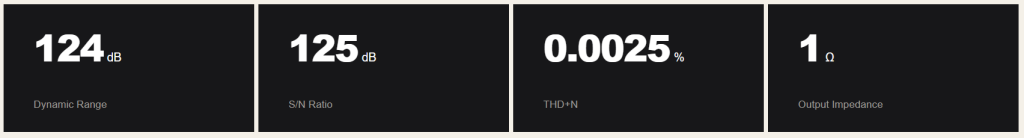

HP dynamic range |
124 / 110 / 107 dB |
118 / 108 / 107 dB |
|
HP SNR |
125 / 115 / 115 dB |
118 / 113 / 113 dB |
|
HP crosstalk |
107 / 103 / 103 dB |
107 / 102 / 102 dB |

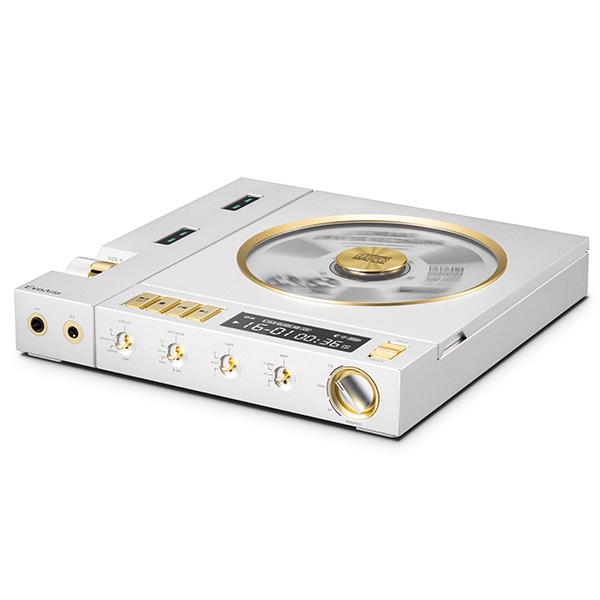

CD · USB · BluetoothAll in One DAC Amplifier

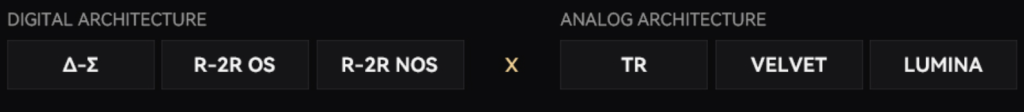

Evo Era brings together two independent digital decoding systems: Delta-Sigma
and discrete String R-2R. Choose the architecture that best suits your music and listening preferences.

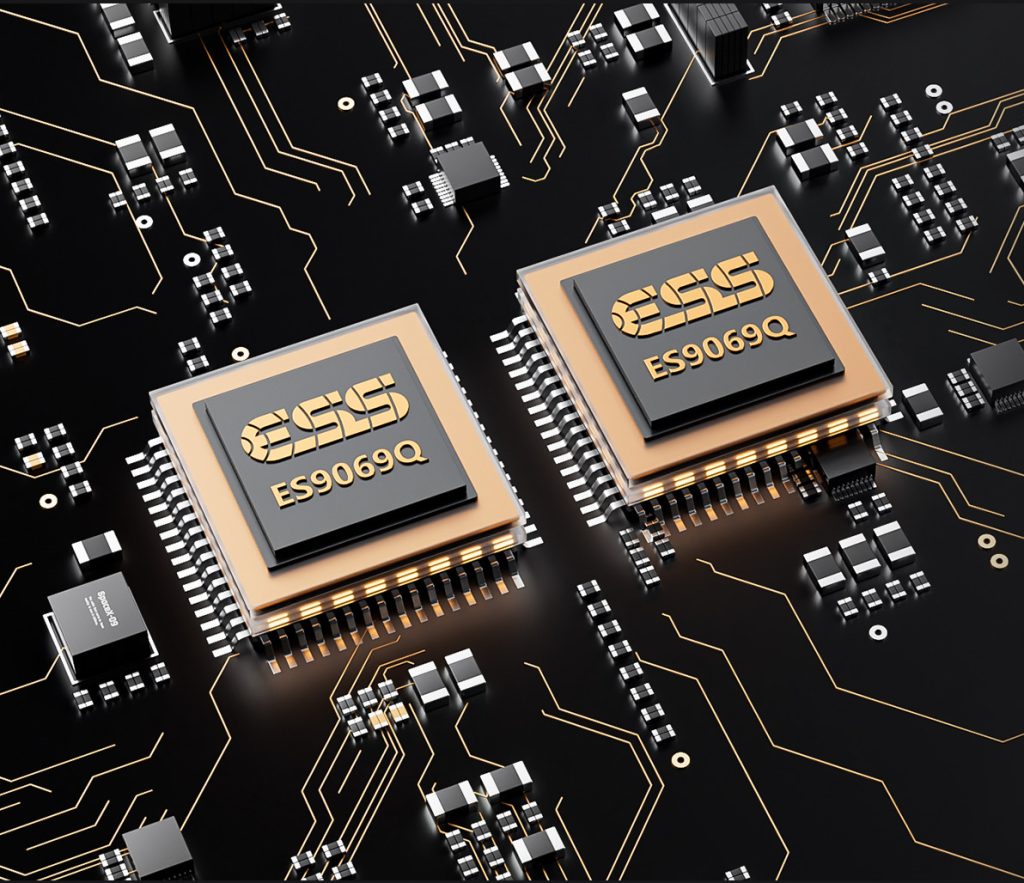

Two ES9069Q DACs operate in mono mode within a fully differential architecture, delivering wide dynamic range, fine detail and precise digital-to-analog conversion.

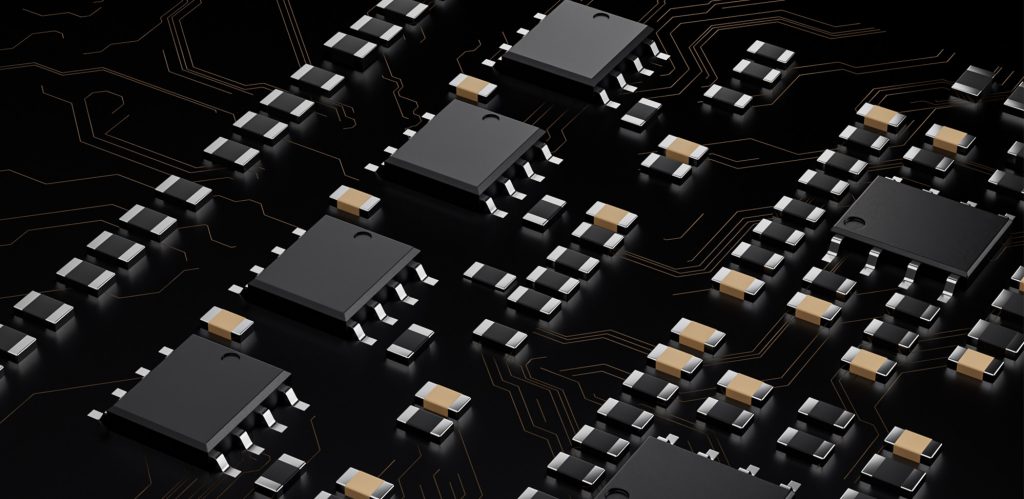

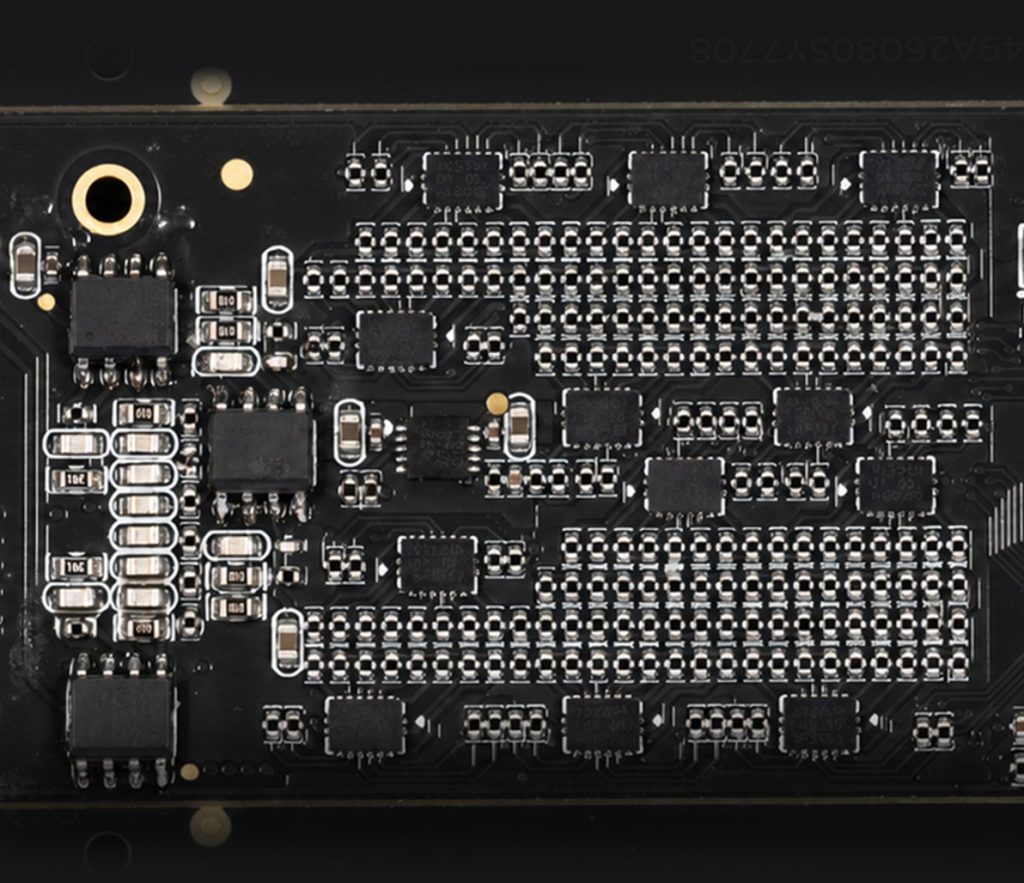

More than 170 precision resistors across four specifications form a two-channel String R-2R decoding network. Independent power supplies serve the left and right channels, while selectable oversampling (OS) and non-oversampling (NOS) modes offer further listening flexibility.
Evo Era brings the analogue architecture of the Evo One flagship player to an All-in-one DAC and Headphone Amplifier.
Choose between two hybrid tube timbres—Velvet and Lumina—and a Fully Transistor signal path,
each offering a distinct sonic character.
Built around a pair of KORG Nutube 6P1 tubes, the circuit combines a buffer stage, a tube voltage-gain stage, and a buffer driver stage to deliver refined, expressive performance. An independent JFET constant-current source circuit in the source load enhances drive capability and control, bringing together tube warmth and solid-state precision. With two selectable sound signatures — Velvet and Lumina — listeners can tailor the presentation to suit their preference.
In FULLY TR mode, the signal path is driven entirely by a fully discrete transistor amplification circuit, bypassing the Nutube stage to deliver exceptional clarity, speed, and control.
Warm, harmonically rich sound with pronounced even-order harmonics, ideal for vocals and relaxed, expressive listening
A clear, transparent presentation with strong definition and evenly balanced harmonics, well suited to a wide range of musical styles.
Ideal for large-scale works such as
classical symphonies and cinematic soundtracks.
A four-channel, fully balanced amplifier combines operational amplifiers with discrete power transistors to deliver low noise, strong transient response and sustained driving power. Adjust the Gain and Power Amplification Mode to suit your headphones’ sensitivity and impedance, as well as your listening preferences.
4.4mm · 32Ω DC Input Mode

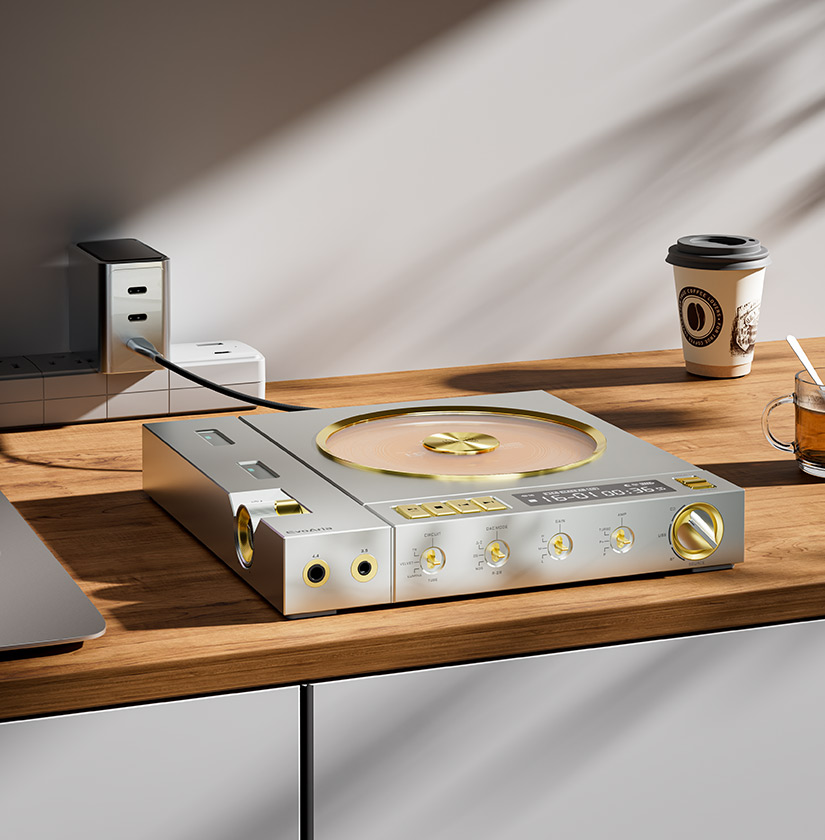

Connect a compatible USB Power Delivery (PD) power supply and select DC INPUT in the menu. The external supply powers Evo Era directly, unlocking its full headphone output power.

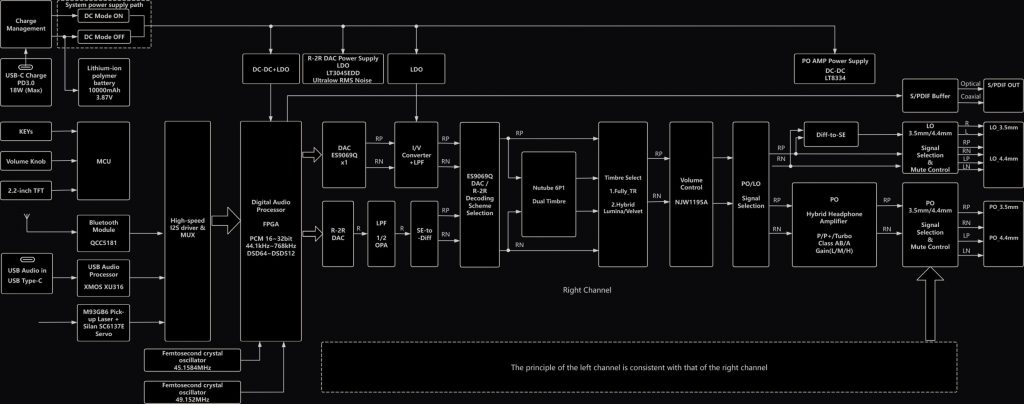

Every stage of the audio chain contributes to what you hear. From digital audio reception and dual DAC decoding to analogue signal handling, headphone amplification and power supply design, every element of Evo Era works together to deliver clean, controlled and powerful sound.

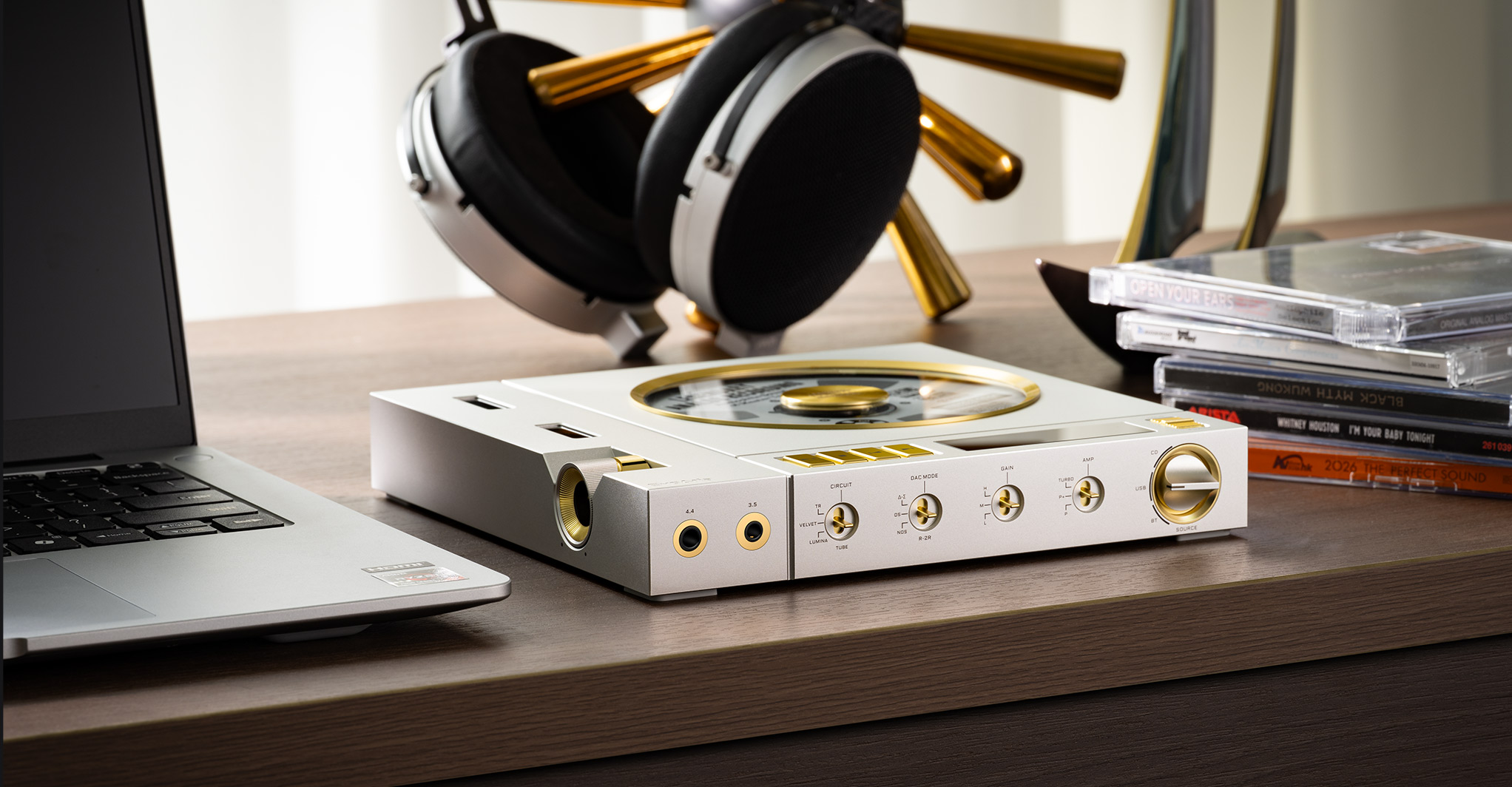

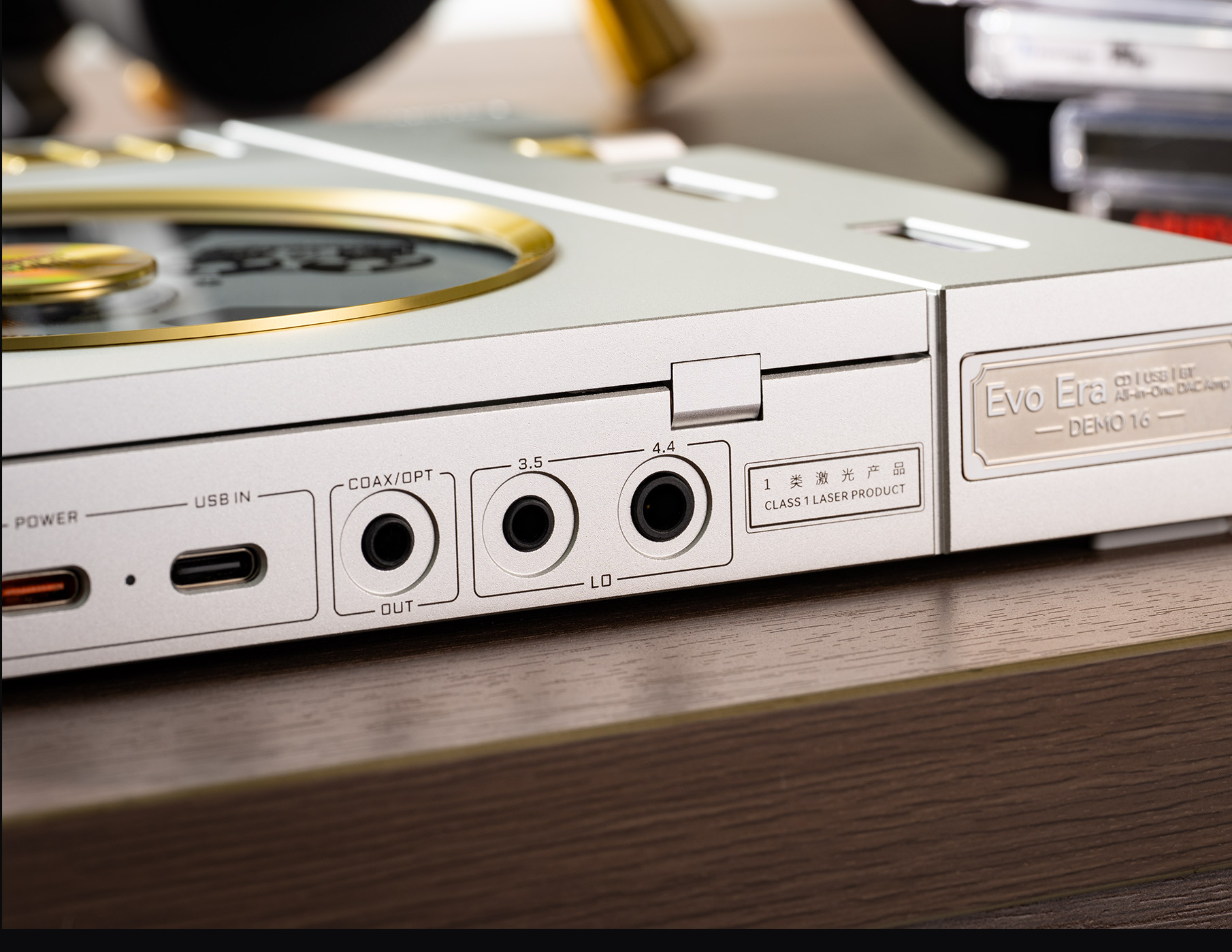

Combining a CD player, DAC and Headphone Amplifier, Evo Era fits naturally into a wide range of listening setups.
Listen directly through headphones, or connect to powered speakers,
a headphone amplifier,preamplifier or an external DAC. The 3.5 mm and 4.4 mm analog outputs feature intelligent connection detection for convenient everyday use.
| 3.5mm PO | 4.4mm BALANCED PO |
| 3.5mm LINE OUT | 4.4mm BALANCED LO |
| COAXIAL / OPTICAL OUT |
Evo Era brings CD playback, USB audio and Bluetooth together in one system. Rediscover your CD collection,enjoy your digital library or play your streaming favourites from a compatible computer, smartphone or tablet.
01 / CD PLAYBACK

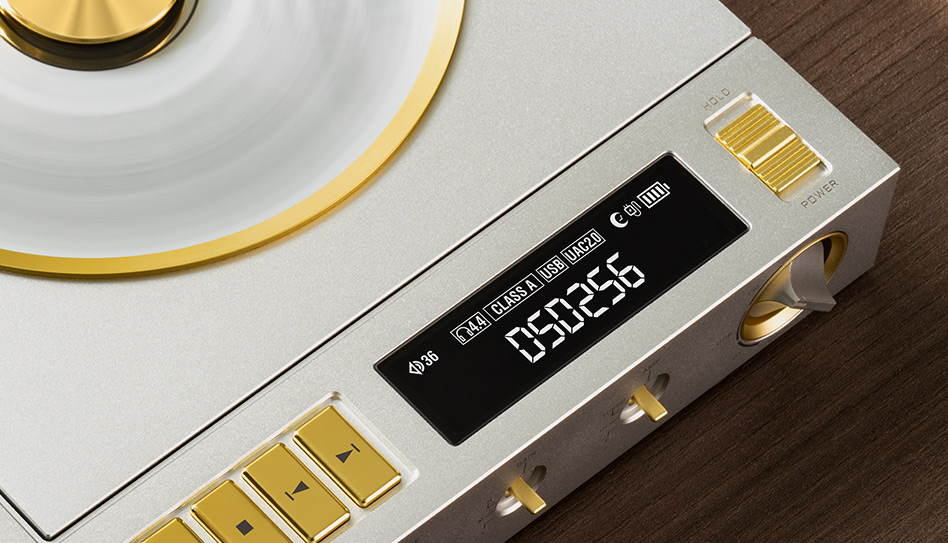

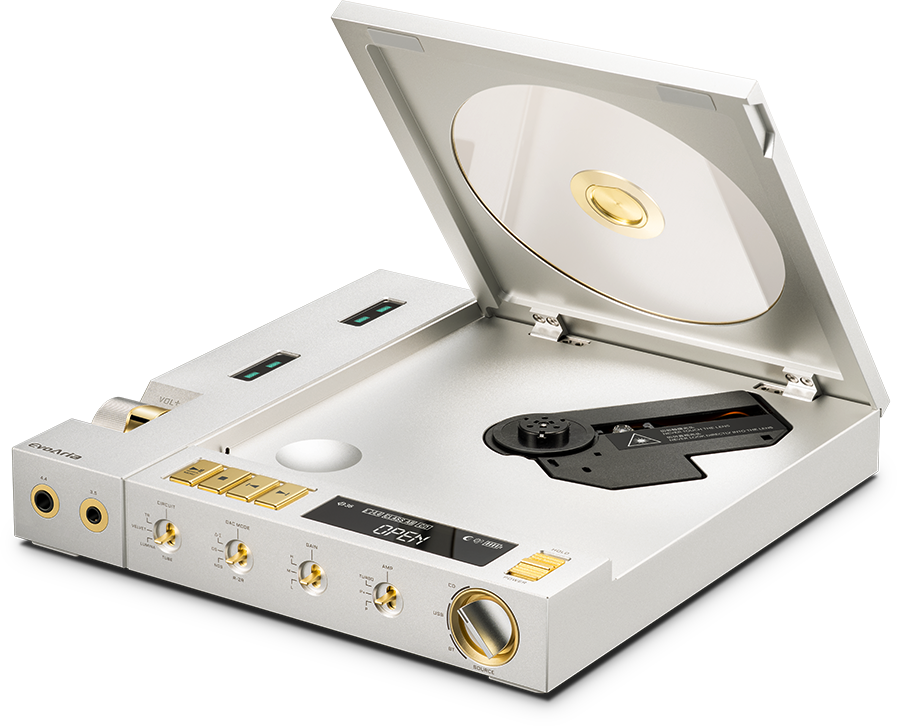

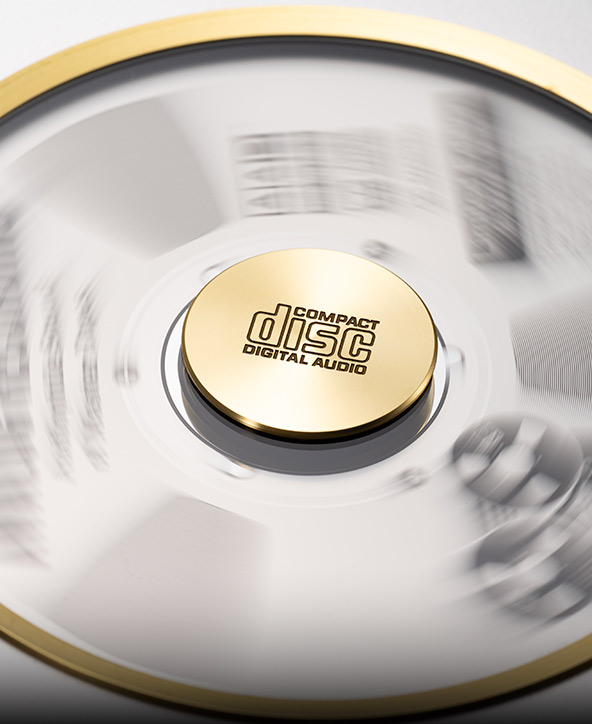

Choose a disc. Press play. Rediscover an album. A custom CD mechanism and dedicated servo system handle disc reading and playback, while physical controls and a clear display make track selection, playback modes and time information easy to access. Bring your CD collection back to the heart of your listening system.
02 / USB AUDIO
Connect a compatible computer or smartphone via USB to enjoy your digital music library and favourite streaming services through Evo Era. Explore the same selectable DAC architectures, analogue sound signatures and powerful headphone amplification available during CD playback.

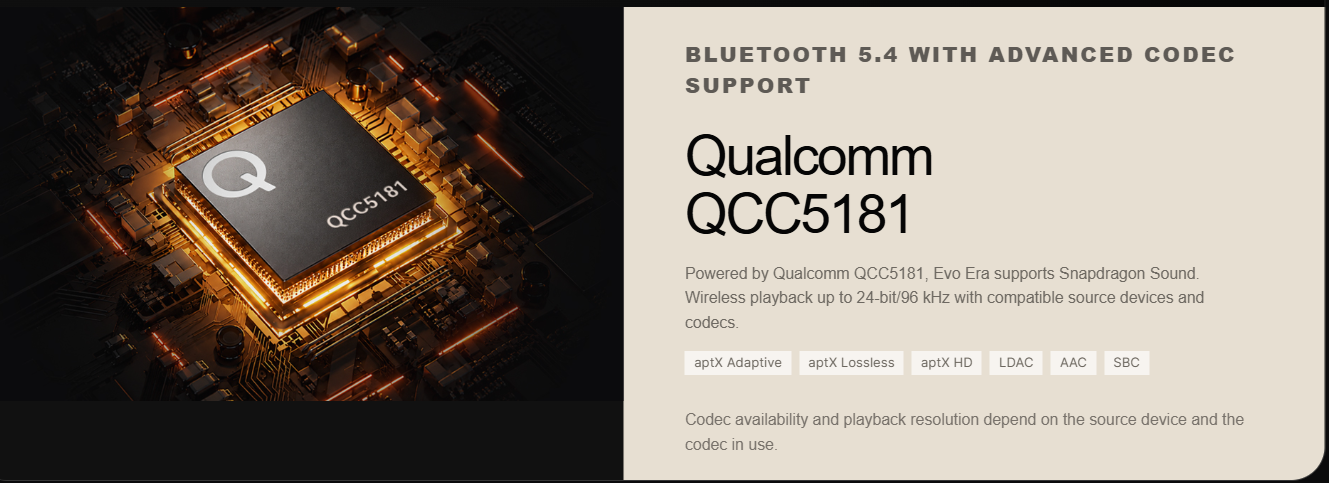

03 / BLUETOOTH AUDIO
Stream music to Evo Era from a compatible smartphone, tablet, computer or other Bluetooth audio source. Enjoy high-quality sound through headphones or an audio system connected to Evo Era.

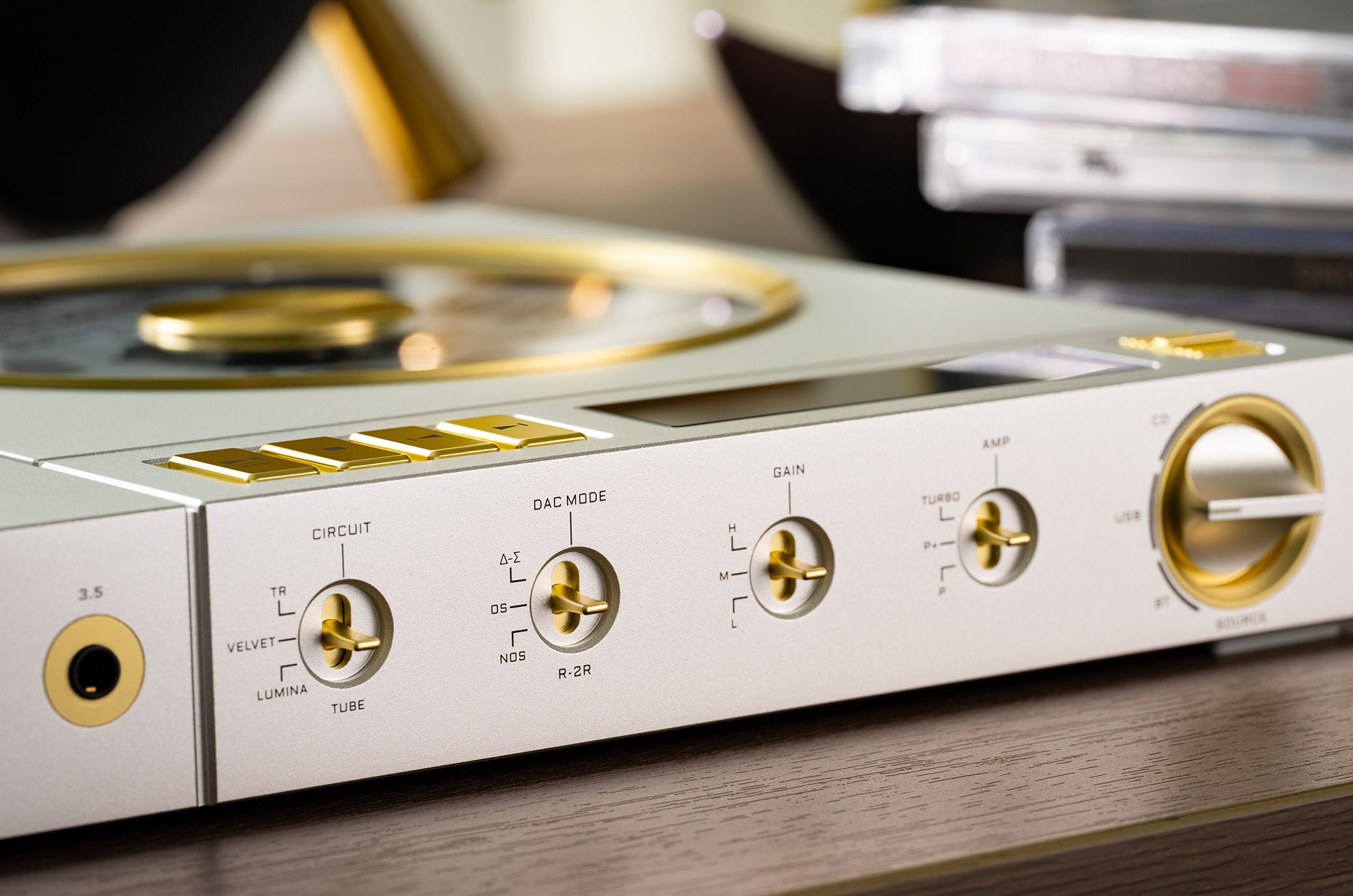

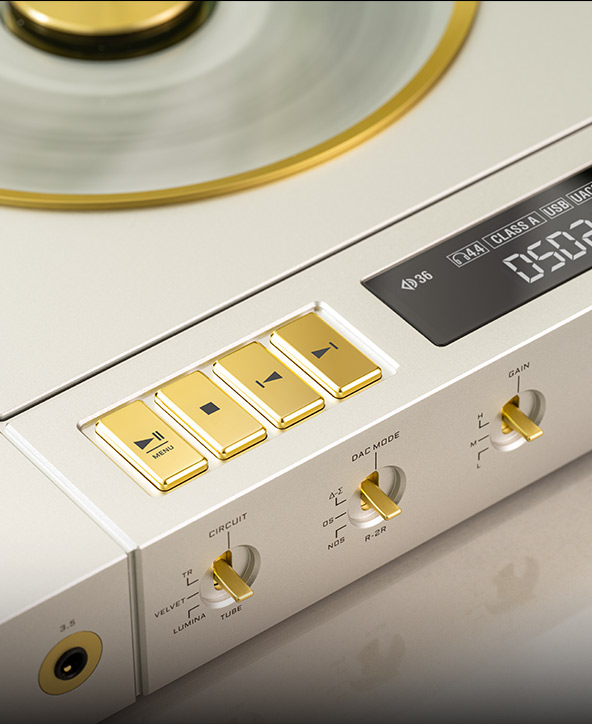

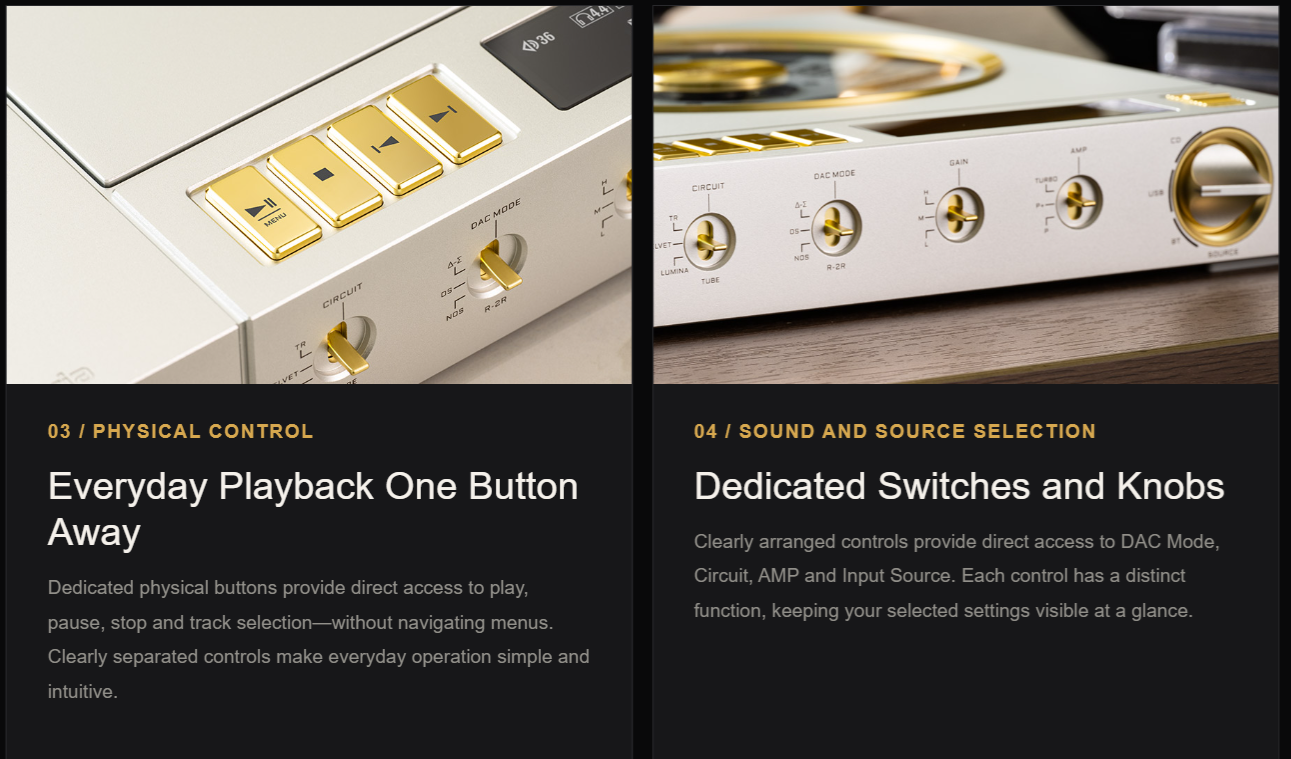

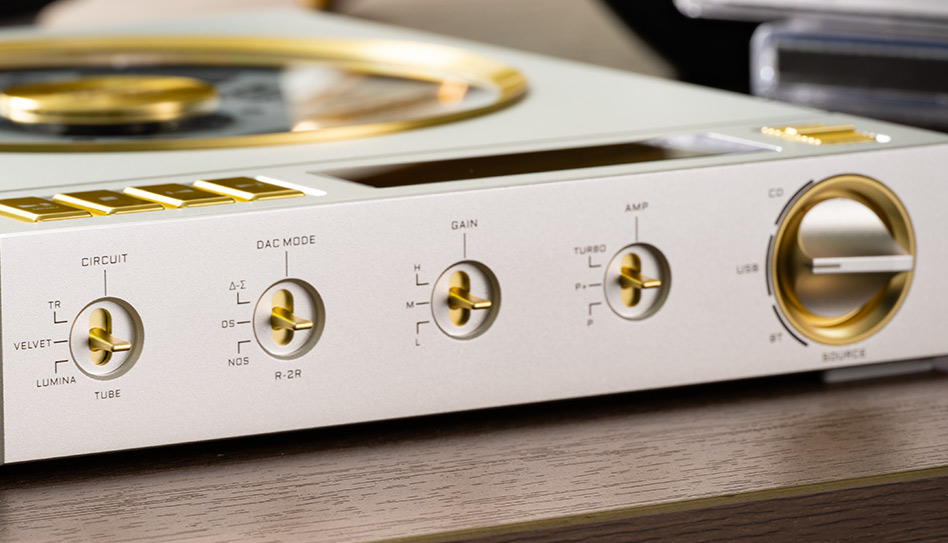

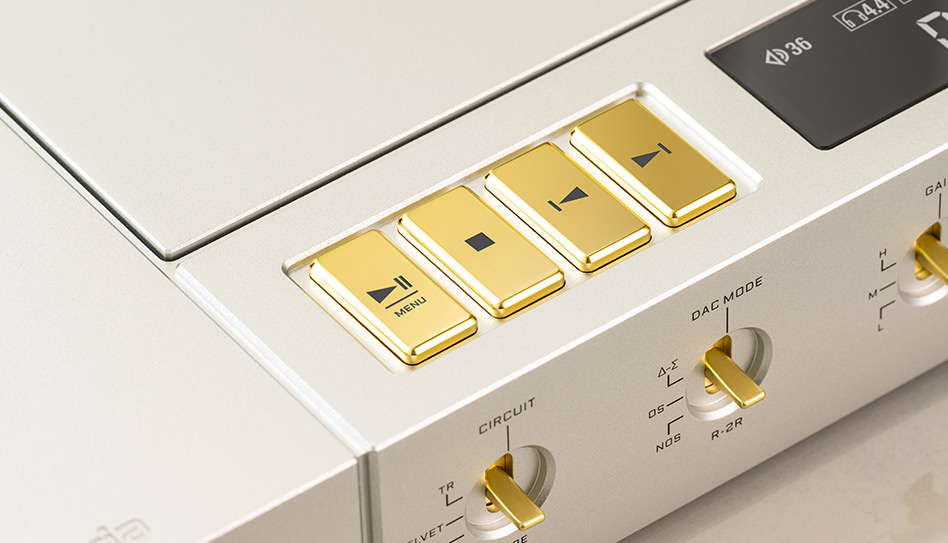

Dedicated switches and knobs put DAC Mode, Analogue Timbre Circuit, Gain and Amplifier Power Mode directly at your fingertips. Explore different combinations to find the sound that suits your headphones, your music and your preferences.
| DAC MODE | Δ-Σ / R-2R OS / R-2R NOS |
| CIRCUIT | TR / VELVET / LUMINA |
| GAIN | H / M / L (Three Hardware Gain Settings） |
| AMP | P / P+ / TURBO |
THE LISTENING EXPERIENCE

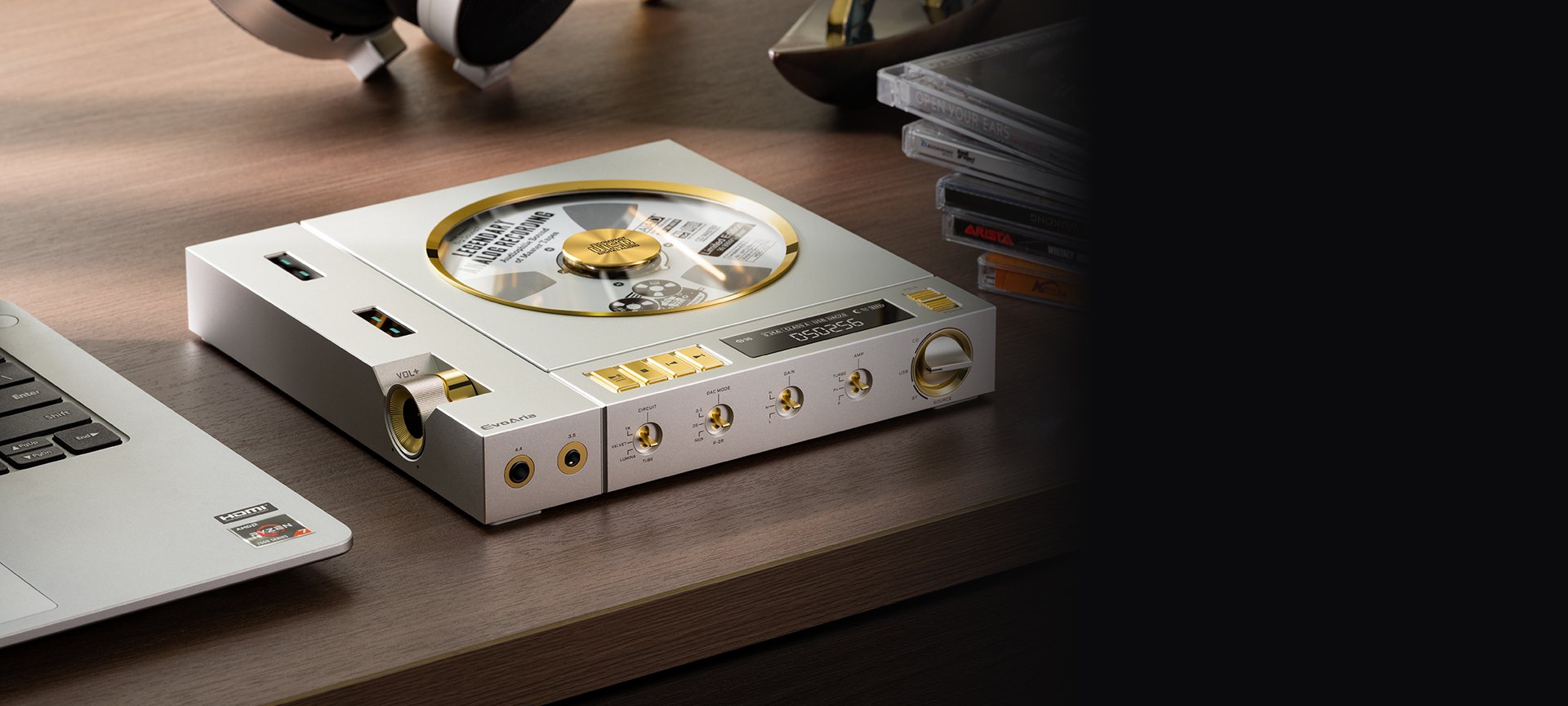

From opening the lid and loading a disc to selecting a track and shaping the sound, Evo Era brings the hands-on pleasure of physical media to a complete, intuitive listening system.

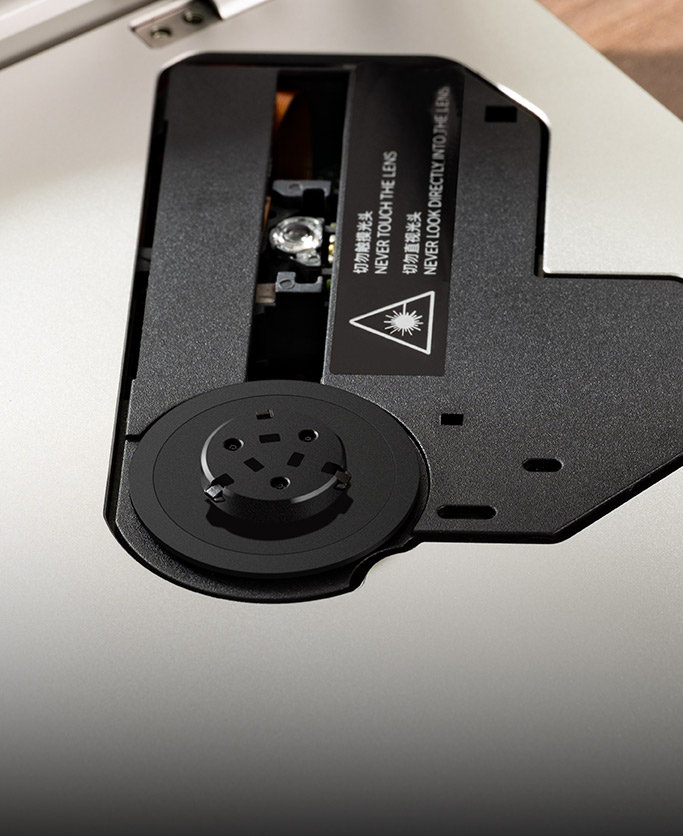

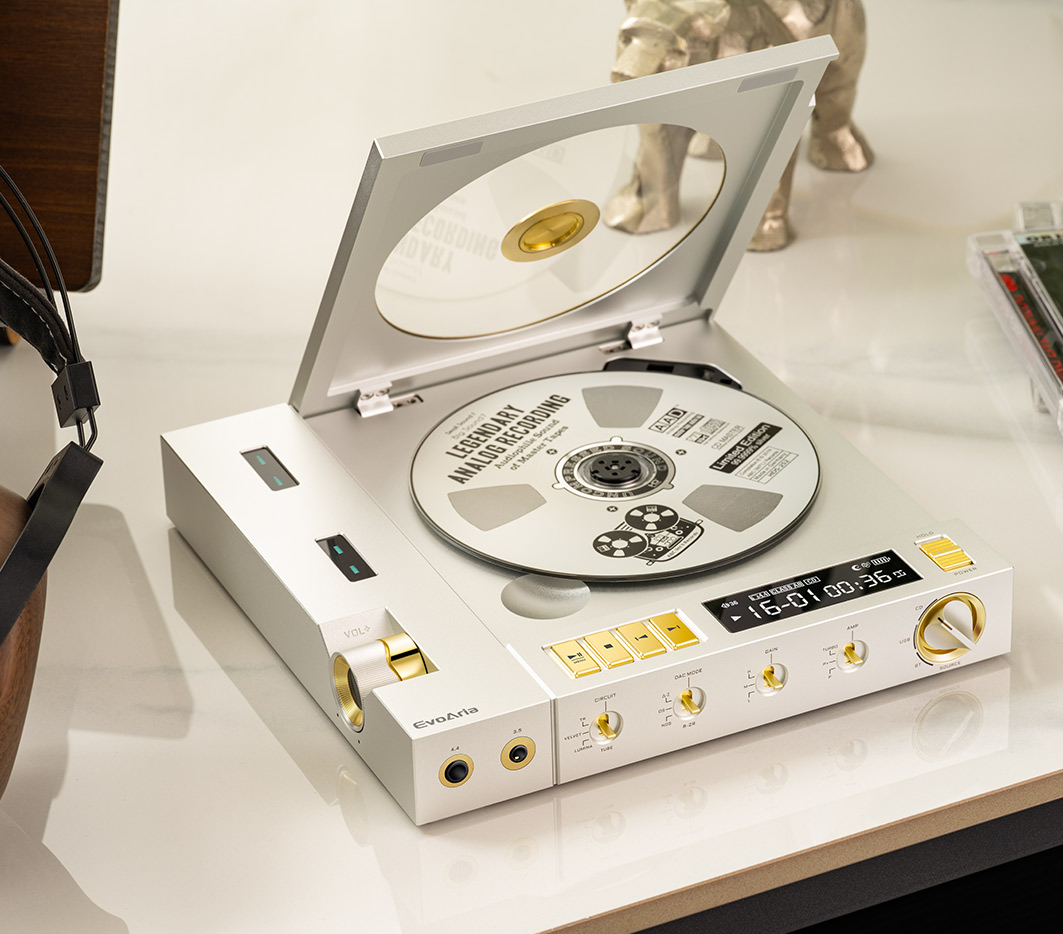

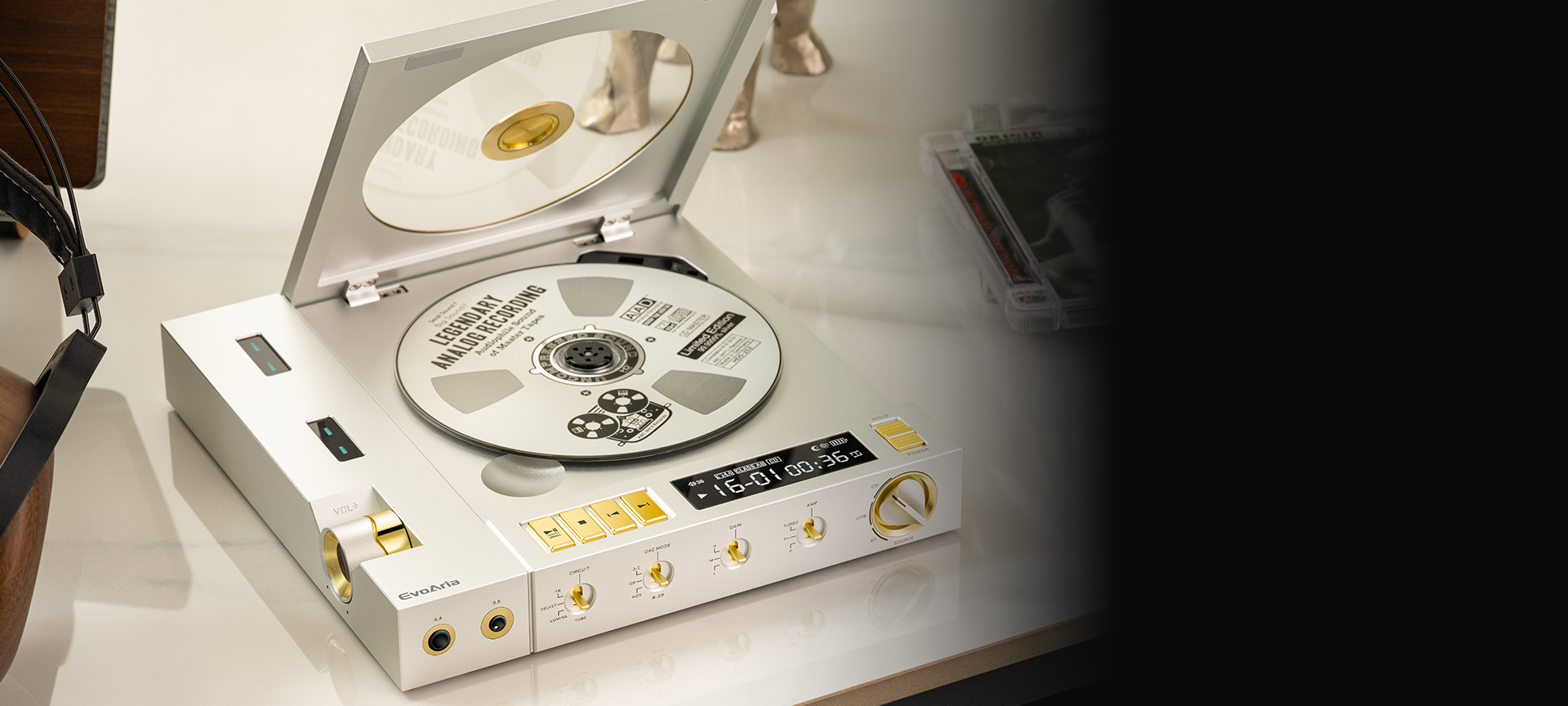

The top-loading CD compartment features a magnetic closure for easy disc loading and removal. Open, load, close and play—each step celebrates the familiar ritual of listening to physical media.
CNC-machined from 6063 aluminum alloy, Evo Era’s chassis combines structural strength with a refined tactile finish. A 200-grit glass-bead blasting process creates a fine matte texture, while the slim 29 mm profile completes its elegant form.
With a built-in 10,000 mAh battery, Evo Era brings hi-fi listening beyond your desk—from room to room and wherever you go.
During CD playback, battery life reaches up to 14 hours through the 3.5 mm headphone output in TR mode, or approximately 9 hours through the 4.4 mm balanced headphone output in a hybrid tube mode. Actual battery life varies with headphone load, volume and operating mode.
LEATHER CARRY CASE INCLUDED
A dedicated leather carry case is included as standard. Designed to fit Evo Era, it helps protect the chassis from everyday scratches and minor knocks, while the shoulder strap makes it easy to carry. The display, playback buttons and volume knob remain accessible with the case fitted, so you can check playback information and operate key controls without removing it.
Tailored FitShoulder StrapEasy Control Access
CLASSIC MEDIA. MODERN POSSIBILITIES
CD · USB · BT · All-in-One DAC and Headphone Amplifier
Backed with 1-Year of Manufacturer Warranty
