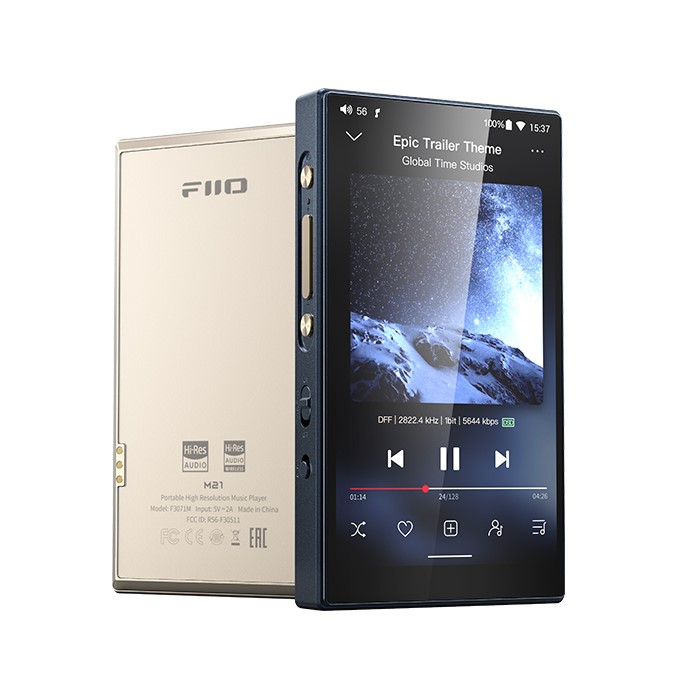

FiiO M21 Digital Audio Player (DAP)

FiiO M21 Digital Audio Player (DAP)

Product code:
M21-BlueFIIOM21-TITANIUM
Available for demonstration in store
Available for demonstration in store
Product codeN/A
Availability In Stock
Available To Order
Available To Order
Free delivery 5 - 7 Days
Free delivery 5 - 7 Days
1-year-warranty
Trade in product
Trade in product
Book a Demonstration
Available to collect immediately
Available to collect immediately

£279

Trade In

Want to Trade In? Get in Touch.

Demonstration

Request a demo for

FiiO M21 Digital Audio Player (DAP)

Features

  • Quad CS43198 DACs deliver pure balanced high-resolution audio
  • Dual-stage amplifier ensures clean, powerful, distortion-free sound
  • Desktop mode outputs up to 950 mW at 32 Ω
  • Supports PCM 768kHz/32-bit, DSD512, and full MQA decoding
  • 3.5mm and 4.4mm outputs with versatile connectivity options
  • Up to 15 hours playback with fast PD charging
  • Aluminum body with frosted glass and retro case option

Specifications

Model M21
SoC Qualcomm Snapdragon 680

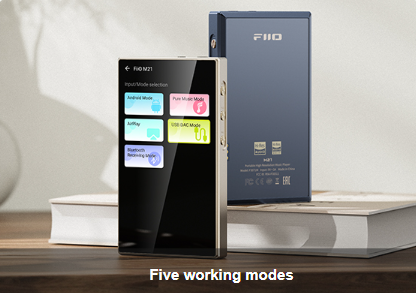

Operating Modes Android / Pure Music / AirPlay / USB DAC / Bluetooth Receiver
Firmware Upgrade Local storage, memory card, OTA
Colours Titanium Gold, Dark Blue
Dimensions 121 × 68 × 17 mm (approx.)
Weight 193g (approx.)
Display 4.7-inch bezel-less, 750 × 1334
RAM 4GB
Internal Storage 64GB (approx. 52GB usable)
Memory Card Slot Single microSD, up to 2TB (theoretical)
DAC 4 × Cirrus Logic CS43198
Amplifiers 2 × OPA1692 + 2 × SGM8262-2
Adaptive Impedance PO: 8–350Ω / BAL: 8–350Ω
Channel Separation L20, R20 (0.5dB per level)
Volume Control Button control

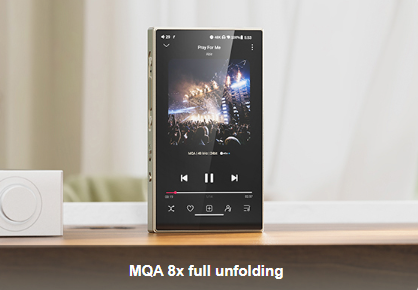

Special Decoding MQA full decoding, All-to-DSD
EQ 10-band EQ (±12dB), 8 presets, custom EQ
Wi-Fi 2.4GHz/5GHz, DLNA, AirPlay, Wi-Fi song transfer, Roon Ready
Bluetooth Reception (5.0) SBC, AAC, LDAC
Bluetooth Transmission (5.0) SBC, AAC, aptX, aptX HD, LDAC, LHDC
FiiO Link Wi-Fi + Bluetooth (Android); Bluetooth only (iOS)
USB DAC Mode Up to 384kHz/32bit, DSD256 (Native)
USB Audio Up to 768kHz/32bit, DSD512 (DoP/D2P/Native)
Coaxial Output Up to 384kHz/24bit, DSD128 (DoP)
Physical Buttons Power, Multifunction, Volume, Play/Pause, Previous, Next
Switches HOLD, D.MODE
Line Out (LO) 3.5mm (shared PO)
Balanced Line Out 4.4mm (shared BAL)
Headphone Output 3.5mm
Balanced Headphone Output 4.4mm
Coaxial Output 3.5mm (shared PO)
Special Connectors Cassette-style protective case contacts
PO (3.5mm) Super High Gain ≥480mW+480mW (16Ω), ≥405mW+405mW (32Ω), ≥45mW+45mW (300Ω); SNR ≥124dB; THD+N ≤0.0003%; Crosstalk ≥74dB; Noise ≤2μV
PO (3.5mm) High Gain ≥380mW+380mW (16Ω), ≥290mW+290mW (32Ω), ≥35mW+35mW (300Ω)
BAL (4.4mm) Super High Gain ≥540mW+540mW (16Ω), ≥950mW+950mW (32Ω), ≥185mW+185mW (300Ω); SNR ≥126dB; Crosstalk ≥109dB; Peak 21.2Vp-p; Noise ≤2.7μV
BAL (4.4mm) High Gain ≥600mW+600mW (16Ω), ≥720mW+720mW (32Ω), ≥90mW+90mW (300Ω)
LO Output 1.9Vrms (SE) / 3.9Vrms (BAL); THD+N ≤0.0005%; Crosstalk ≥111dB
Charging D2.0 and PD3.0 fast charging
Charging Time Approx. 1.5h (PD3.0)
Battery Life 15h (3.5mm SE) / 12.5h (4.4mm BAL) – MP3 44kHz/16bit, 32Ω, screen off, EQ off, high gain
Power-Off Timers Sleep/Idle supported
Navigation Modes Gesture, 2-button, 3-button
Double Tap to Wake Supported

Description

Portable High-Res Lossless Music Player

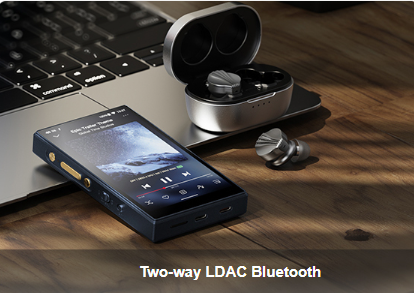

Experience studio-grade Hi-Res audio anywhere with the FiiO M21 Portable High-Res Lossless Music Player. Dual Cirrus Logic CS43198 DACs, Snapdragon 680, custom Android 13 OS, dual balanced & single-ended outputs, advanced DAPS system, 3 gain levels, two-way LDAC Bluetooth 5.0 and asynchronous USB DAC with up to 768kHz/32bit support deliver pure, powerful sound wherever you go.



A “Hearty” Benchmark New Paradigm


The M21 redefines the entry-level class with its flagship lineage.
Its internal and external “hearts” are full of “heart” in providing you with enjoyment.
Its compact screen and class-defying performance are a massive step forward.
Aiming to be a benchmark for an entirely new generation

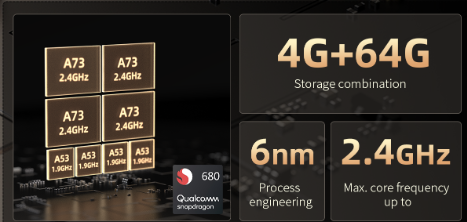

Flagship SoC
A new entry-level benchmark


The Qualcomm Snapdragon 680 has superior performance with less power consumption than the SoCs used by players in the same class. It provides a smooth experience with Android 13.

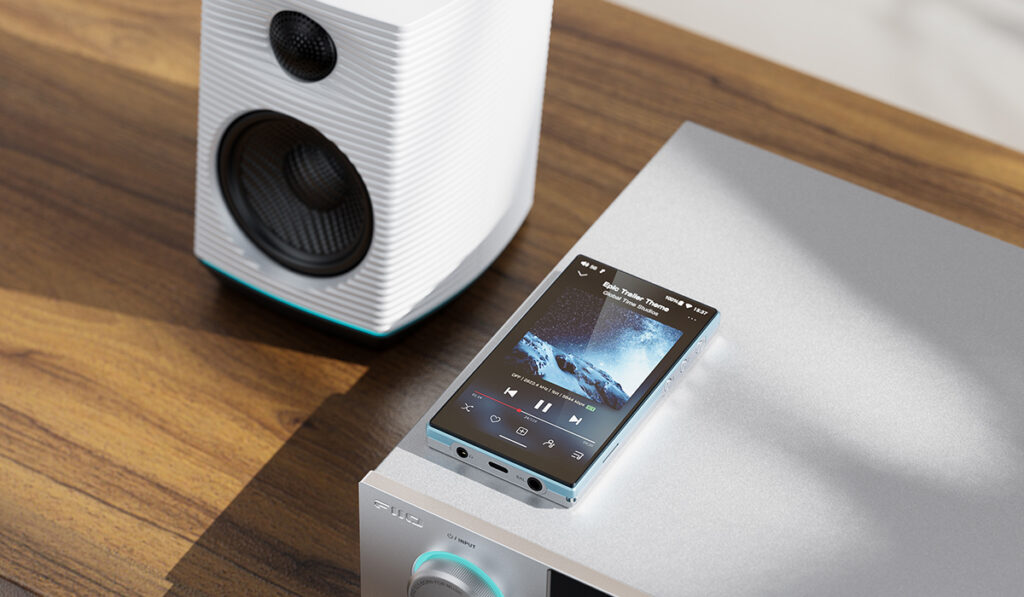

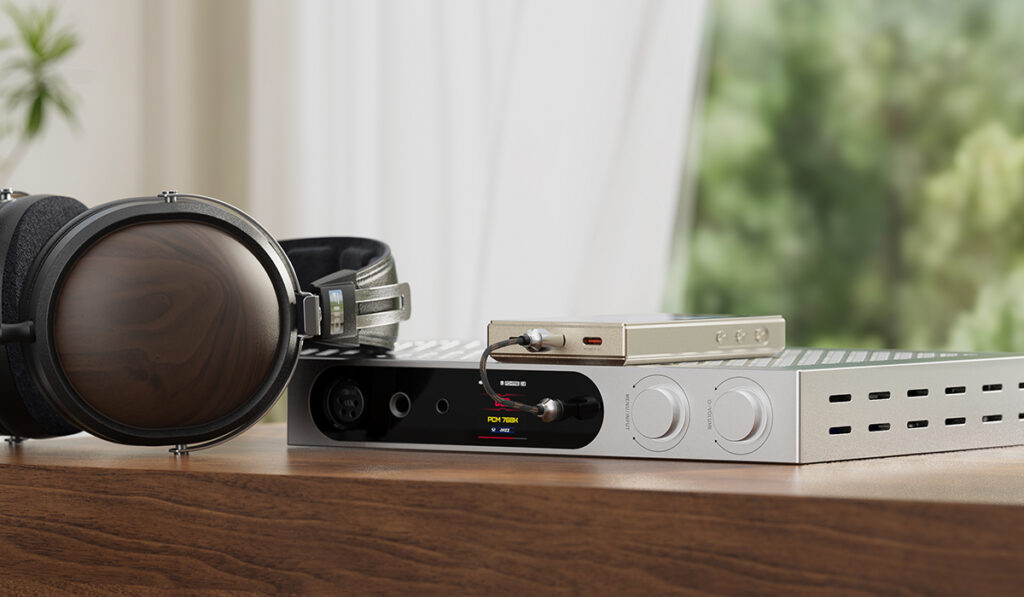

Portable/desktop dual power
supply modes
A jump in performance


In portable mode, it operates with standard voltage power supply. When using the external power “Super high gain mode, the player automatically switches to using a high-voltage power supply with 21Vpp (3000) peak drive voltage and 950mW (320) massive output power. This delivers desktop-level power output, making the player a better fit with a wider range of earbuds or headphones for a truly extraordinary auditory feast.



Go back to the Walkman era With just one touch


The custom cassette-style protective case paired with an exclusive retro Ul and tailored vintage sound effects all take you on a nostalgic journey back to the Walkman era.. Remove the protective case to seamlessly switch back to the original system, giving you the flexibility to use it how you want to.

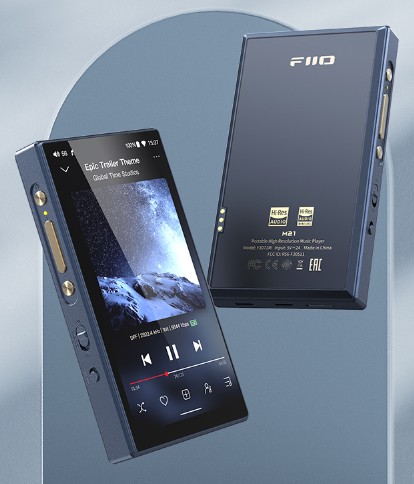

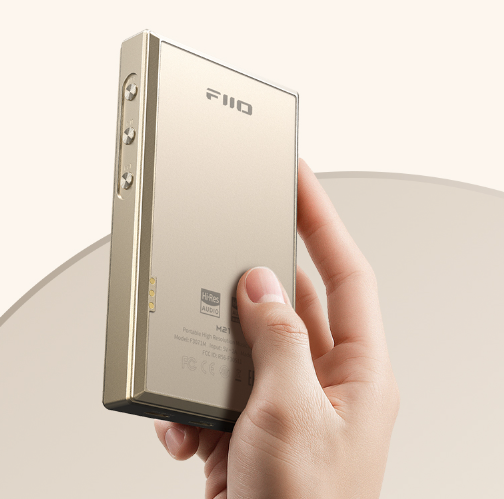

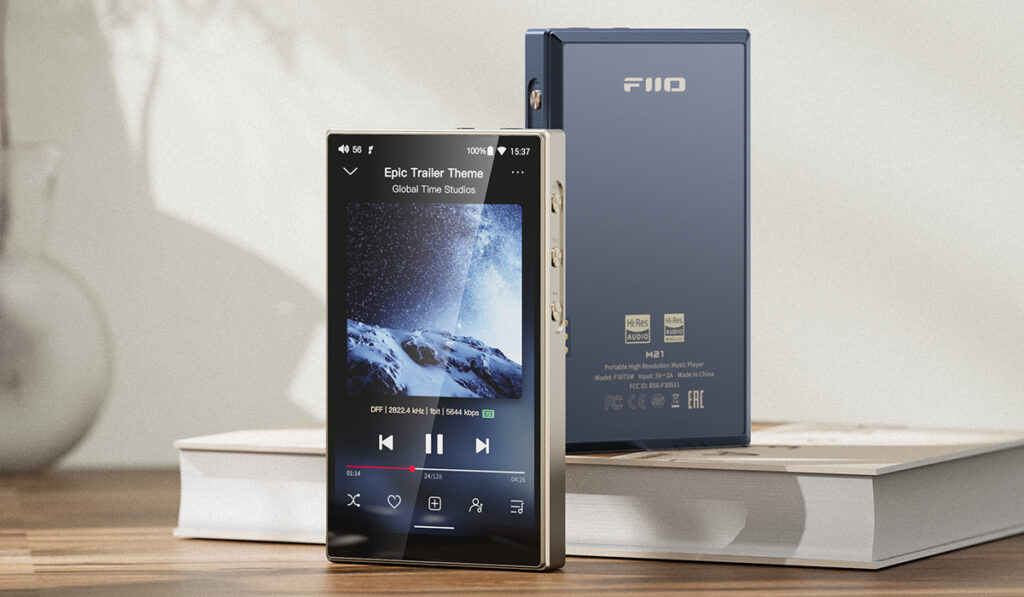

True quality Inside and out


The fully aluminum alloy body with an AG frosted glass back offers a delicate texture and comfortable grip. The screen features an oleophobic coating that significantly reduces fingerprints and smudges, making for smoother touch operation.



High-end HiFi Parts For better sound


In the M21’s audio circuit are high-precision thin-film resistors and low-temperature-drift capacitors that ensure refined and stable sound quality – specifically the greater consistency between the left and right channels and across all frequency ranges. Additionally, fine circuits such as the DAC and headphone amplifier are equipped with over 10 low-impedance, high-capacity tantalum capacitors. These provide abundant energy reserves and a robust power supply for more powerful, dynamic sound.



Digital and analog partition shielding Purely heavenly sound


The digital and headphone amplifier sections exist in separate partitions and each is equipped with independent shielding covers for isolation. This not only further reduces signal crosstalk but also enables efficient heat dissipation, delivering purer sound.

Flagship-grade power


There are separate power supply paths for the digital and analog circuits, which effectively reduce crosstalk between the two. The result is more precise digital processing, purer analog output, and enhanced driving power. The analog circuit is further subdivided into multiple independent power supplies for components such as the DAC and headphone amplifier. This clean and robust power delivery enhances the dynamic range and leads to greater reproduction of details in the audio for a more refined and natural sound.



Global audio optimization


5th-gen FPGA + dual custom femtosecond crystal oscillators


FIIO developed a custom crystal oscillator specifically for the M21, which has been carefully selected to meet femtosecond-level standards, in order to ensure consistency and stability in its output. With a high-precision, low-jitter unified clock source, it accurately matches PCM and DSD audio at various sampling rates, ensuring precise reproduction of digital audio signals.

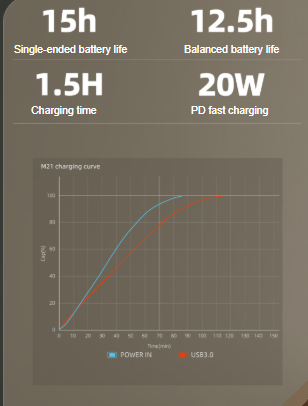

15h long battery life Exploring the world of music


The M21’s 4000mAh high-voltage battery provides up to 15 hours of ultra-long battery life, effortlessly providing the energy for extended listening sessions when commuting or traveling, allowing you to fully immerse yourself in the world of music. It also supports 20W PD fast charging, enabling quick recharges even during short breaks.



Hardware and software Synergy all covered

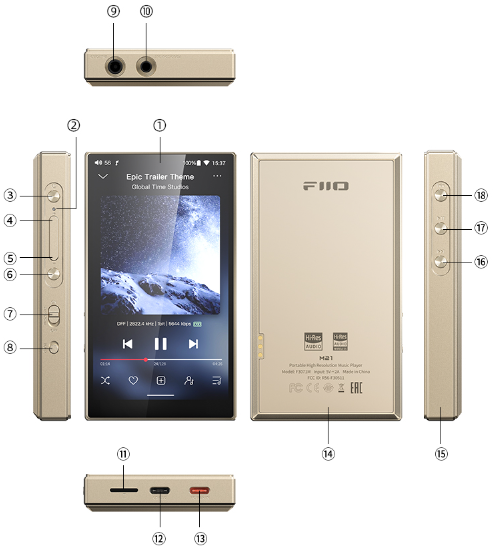

Buttons and ports Labeled

  • Display

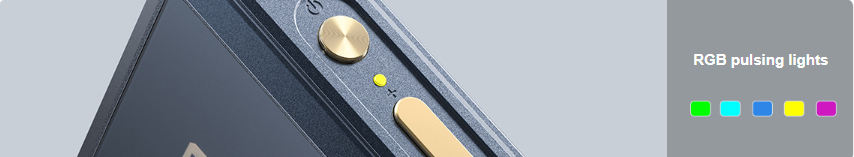

  • Indicator light
  • Power/lock key
  • Volume up key
  • Volume minus key

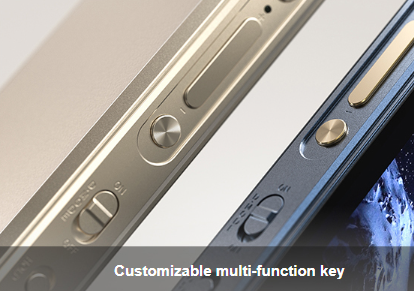

  • Multi-function key
  • Machine mode switch
  • HOLD switch
  • 4.4mm balanced headphone out/line out
  • 3.5mm headphone out/line out/coaxial out
  • MicroSD card slot
  • Type-C data/charging port
  • Type-C charging/power supply port
  • Glass back cover
  • Aluminum alloy Mid-frame
  • Next track
  • Play/Pause
  • Previous track



In the Box

  • M21 x 1
  • Tempered film screen protector (pre-installed at factory) x 1
  • Protective case x 1
  • Warranty card x1
  • Quick Start Guide x 1
  • USB data cable x 1
  • GPL V2 instruction manual x1



Additional information

Colour

Blue, Titanium Gold

Warranty



Backed with a 1-year Fiio warranty
