Features
- Dual Raytheon JAN6418 Tubes
- TUBE + Class AB Dual Modes
- 2000mW + 2000mW @ 32Ī© (12V DC-IN) via 4.4mm balanced output
- 100 stepĀ JRC Volume Control
iBasso AMP16 Amplifier Card
iBasso AMP16 Amplifier Card
Pre-Order
Available To Order
Free delivery 2 - 4 weeks
1-year-warranty
Trade in product
Book a Demonstration
Available to collect immediately
£199
Specifications
| Class AB Mode | |
| 4.4mm Balanced Output | |
| Output Level | Super Gain 8.3Vrms, High Gain 6.0Vrms |
| Output Power | 2000mW + 2000mW @ 32Ī© (12V DC-IN)Ā 1000mW + 1000mW @ 32Ī© (Battery) |
| THD+N | -117dB (A-weighted, 300Ī© load) |
| SNR | 122dB |
| Dynamic Range | 122dB |
| Frequency Response | 10Hz ā 40kHz Ā±0.5dB |
| Crosstalk | -120dB |
| 3.5mm Single-End Output | |
| Output Level | Super Gain 4.1Vrms, High Gain 3.0Vrms |
| Output Power | 500mW + 500mW @ 32Ī© (12V DC-IN)Ā 260mW + 260mW @ 32Ī© (Battery) |
| THD+N | -108dB (A-weighted, 300Ī© load) |
| SNR | Ā 120dB |
| Dynamic Range | Ā 120dB |
| Frequency Response | 10Hz ā 40kHz Ā±0.5dB |
| Crosstalk | -117dB |
| Tube Mode | |
| 4.4mm Balanced Output | |
| Output Level | Super Gain 7.5Vrms, High Gain 4.6Vrms |
| Output Power | 1500mW + 1500mW @ 32Ī© (12V DC-IN) 660mW + 660mW @ 32Ī© (Battery) |
| Frequency Response | 20Hz ā 40kHz Ā±1dB |
| 3.5mm Single-End Output | |
| Output Level | Super Gain 3.75Vrms, High Gain 2.3Vrms |
| Output Power | 400mW + 400mW @ 32Ī© (12V DC-IN) 150mW + 150mW @ 32Ī© (Battery) |
| Frequency Response | 20Hz ā 40kHz Ā±1dB |
Description
AMP16

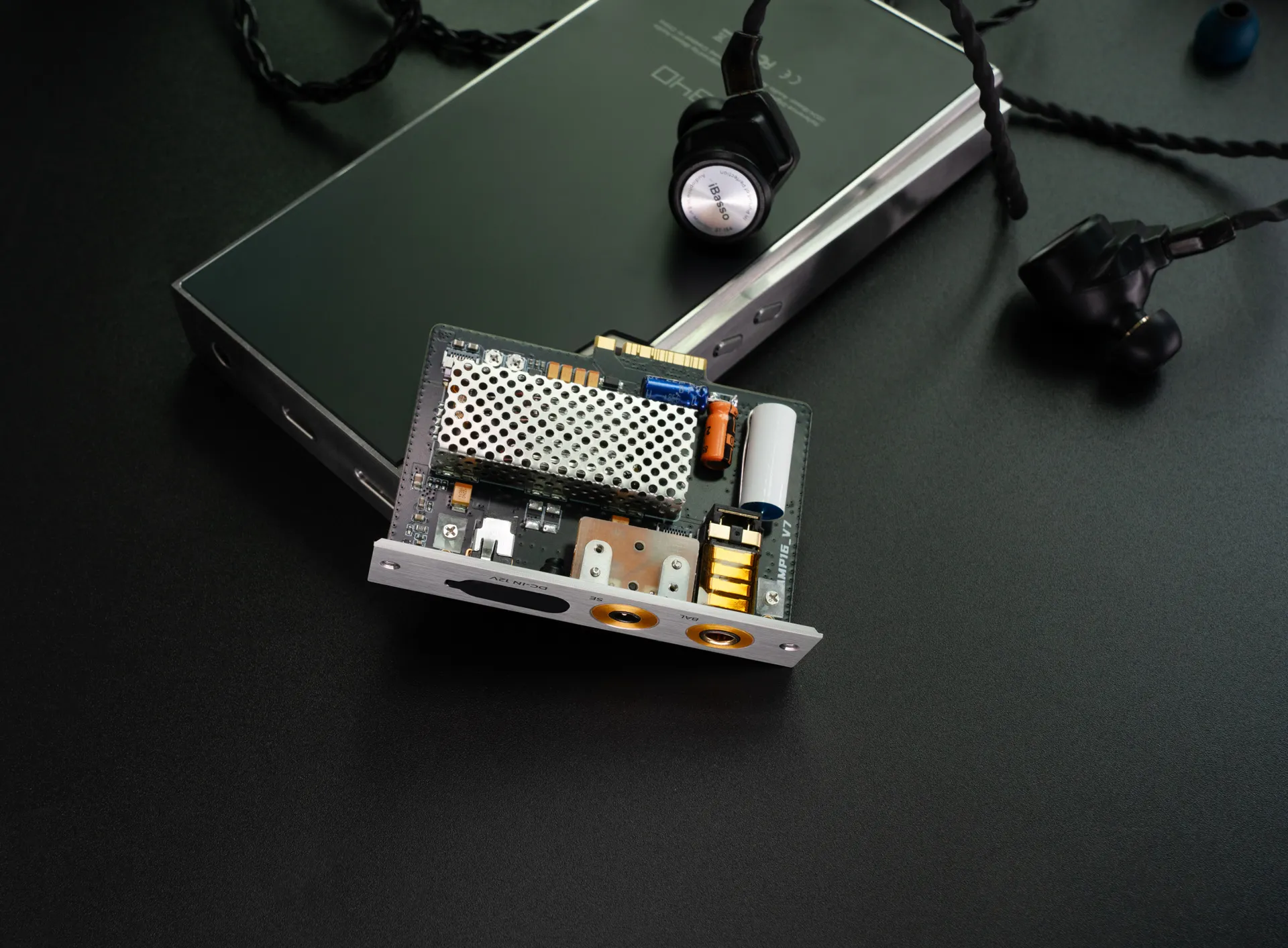

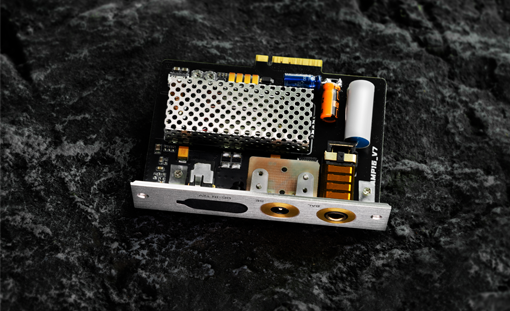

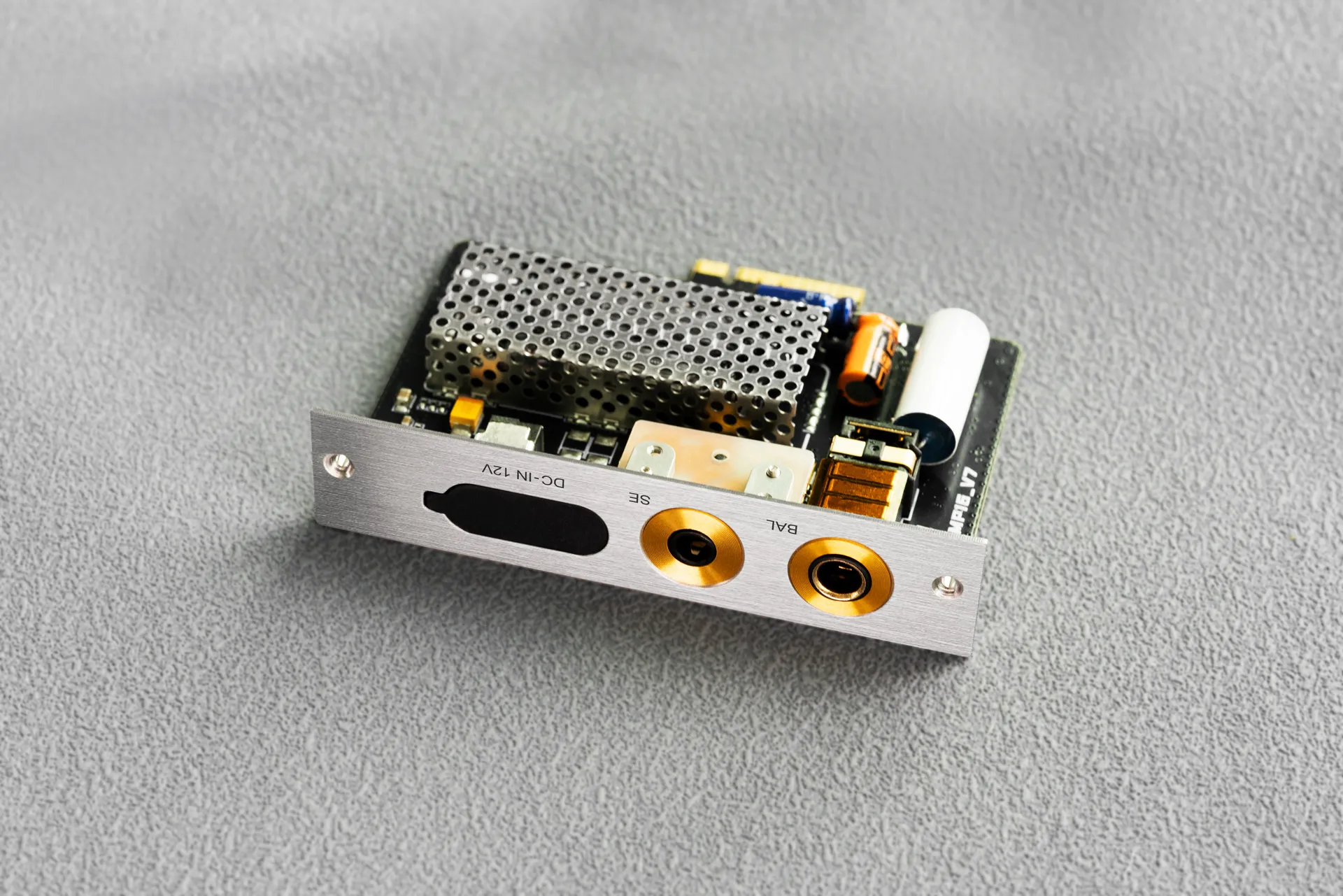

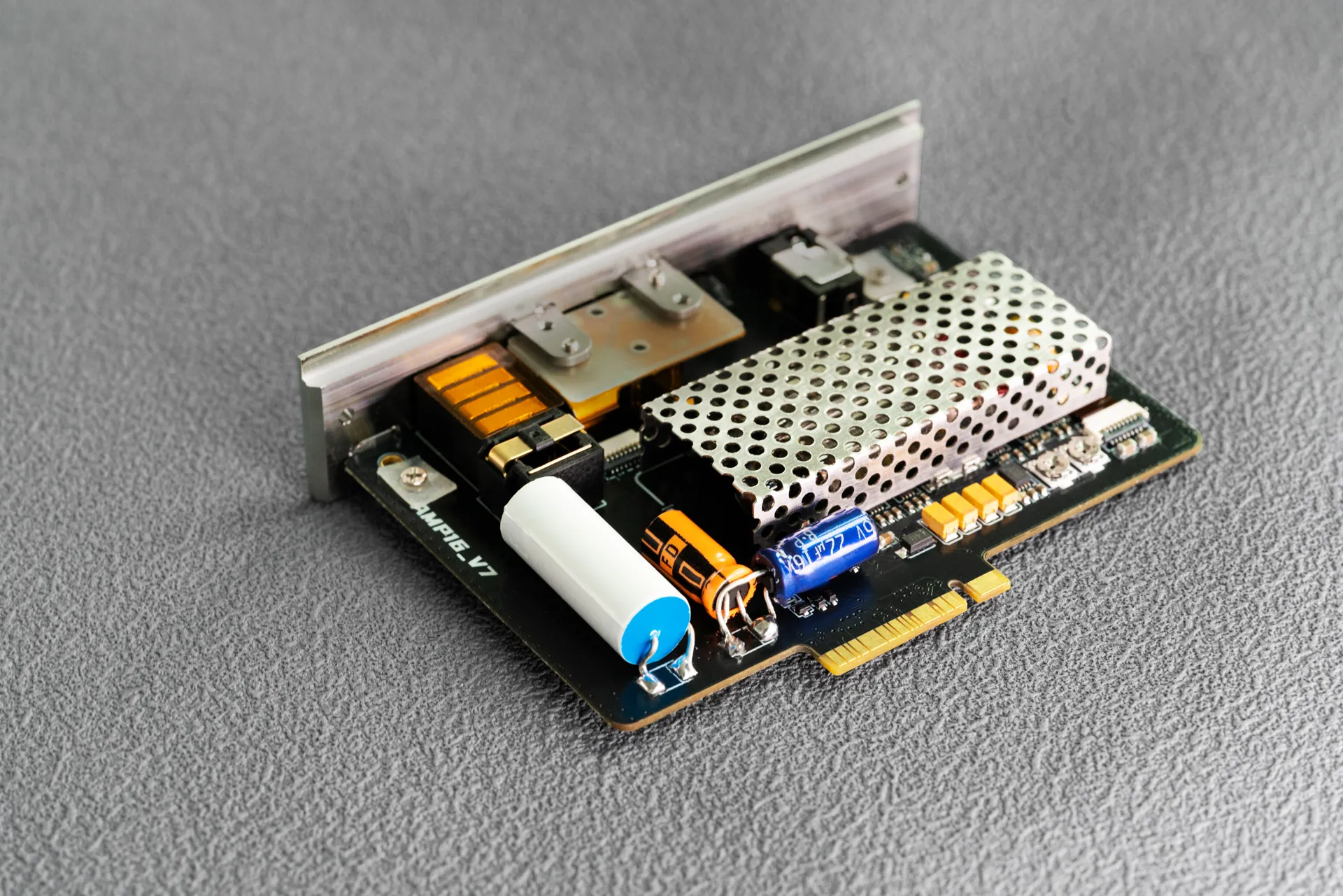

The AMP16 is the latest amp card by iBasso, specifically designed for their DX340 player. This is a hubrid tube/solid-state amplifier, designed to bolster the already impressive DX340 1-bit DSD DAC.
Tube and AB Output Modes
In addition to its TUBE output mode, the AMP16 features a Class AB amplification circuit, enabling users to seamlessly switch between these two output configurations. In TUBE mode, the sound is characterized by its sweet and warm tonal qualities, showcasing the exceptional characteristics of vacuum tubes. Conversely, Class AB mode offers enhanced resolution and excellent dynamic range.
Dual Raytheon JAN6418 Tubes
The AMP16 is engineered with two Raytheon JAN6418 directly heated vacuum tubes, which are celebrated for their compact dimensions, low power consumption, and exceptional operational stability.
100 Step JRC Control
The 100 step JRC volume control not only adjusts the volume but also simultaneously reduces the potential noise of the vacuum tubes. This effectively minimizes the background noise.
Warranty
Backed with 1-year of Manufacturer Warranty
