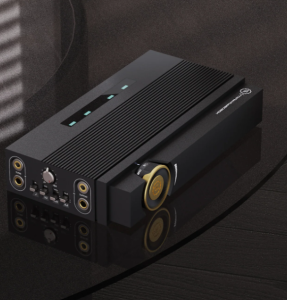

Luxury Precision EA4 Flagship Portable High-Power TubeAmp

Luxury & Precision

Luxury Precision EA4 Flagship Portable High-Power TubeAmp

Product code:
EA4
Pre-order
Availability In Stock
Available To Order
Delivery late October
1-year-warranty
Trade in product
Book a Demonstration
Available to collect immediately

£2,399

Trade In

Want to Trade In? Get in Touch.

Demonstration

Request a demo for

Luxury Precision EA4 Flagship Portable High-Power TubeAmp

Features

  • Finely tuned circuit with high voltage for tube anode
  • ILA/ILH dual modes with high/low gain for 4 tube sound styles
  • Precision constant current source with discrete components
  • 12 Panasonic film capacitors for coupling
  • Specially selected linear regulators for optimal performance
  • Discrete circuit with 16 Nichicon audio-grade capacitors
  • Selectable 13V/15V power supply voltage
  • 6 Panasonic 18650 battery cells with low internal resistance
  • Discrete large transistor emitters with 24 precision resistors
  • AB to A mode with 11 adjustable static current levels
  • CNC-machined metal dual-tube shielding and protective cover
  • Tube vibration-damping design with 8 silicone buffers
  • Two independent high-power power supplies
  • Balanced output power: 6500mW@320Ω, 1200mW@300Ω

Specifications

Circuit Finely tuned with high voltage for tube anode
Modes ILA/ILH dual modes with high/low gain for 4 tube sound styles
Constant Current Source Precision with discrete components
Coupling Capacitors 12 Panasonic film capacitors
Linear Regulators Specially selected for optimal performance
Power Supply Voltage Selectable 13V/15V
Battery Cells 6 Panasonic 18650 with low internal resistance
Transistor Emitters Discrete large with 24 precision resistors
AB to A Mode 11 adjustable static current levels
Shielding CNC-machined metal dual-tube shielding and protective cover
Vibration Damping Tube vibration-damping design with 8 silicone buffers
Power Supplies Two independent high-power power supplies
Output Power Balanced 6500mW@320Ω, 1200mW@300Ω

Description

L&P EA4 Flagship Portable High-Power Tube Amp

Maximizing Tube Sound part 1

Optimized Tube Preamp Circuit: The voltage amplification is solely handled by the tube preamp, with the anode supplied by high voltage. This design fully releases the special tone of the tubes, delivering a rich and warm tube sound. The fully discrete power amp is designed purely for power output, focusing on current amplification.

Maximizing Tube Sound part 2

The combination of ILA mode and high gain allows for additional tube amplification gain, enhancing the already rich tube sound. To actively attenuate the gain of the headphone amplifier’s input stage, rather than through simple resistive voltage division, preserving more musical details. Twelve Panasonic film capacitors are used for coupling in the tube preamp stage

Combination of multiple Tube-Tone


The ILA and ILH modes, combined
with the high and low gain settings for
the tube, offer 4 rich and sweet sound
style, unlocking various listening
experiences.

Comprehensive Reduce the Microphone Effect


A precision CNC-machined metal shield for dual tubes.
Eight high-damping silicone pads on both sides.

Resolving the Performance and
Longevity’s core problem from the “Battery core”


Panasonic Original Low-Resistance, High-Reliability Cells. Carefully Matched Cells for Voltage and Internal
Resistance. Each Cell in the Battery Pack Has an Internal Resistance Difference of Less Than 0.5 Milliohms.

An Interesting and Useful Tube Preamp /Headphone Amplifier Switching Function

Double tap the power button to switch between pure tube preamp mode / tube preamp +discrete headphone amp mode. Prevent accidental touches and sudden high volume that can occur with toggle switches or single press buttons. Maximizes the benefits of the tube preamp circuit and mechanical design.

A combination of Technology and Art in Volume Control Design

The potentiometer as same grade in the LP6 7th Anniversary Edition. The volume knob features added scale markings, making the potentiometer volume visible. Say goodbye to sudden loudness-enjoy precise and fine adjustments!

11-Level Adjustable Quiescent Current Design for Headphone Amp for Fine-tuning Sound Quality

AB class operation with a minimum quiescent current of around 10mA.A class operation with a maximum quiescent current of up to 50mA. Custom knob with smooth, tactile clicks allows you to easily adjust for different listening experiences.
