Luxury & Precision EA4 Flagship Portable High-Power Tube Amplifier
Luxury & Precision EA4 Flagship Portable High-Power Tube Amplifier
Available on demonstration in store
Available To Order
Free UK next day delivery
1-year-warranty
Trade in product
Book a Demonstration
Available to collect immediately
£2,399
Features
- Finely tuned circuit with high voltage for tube anode

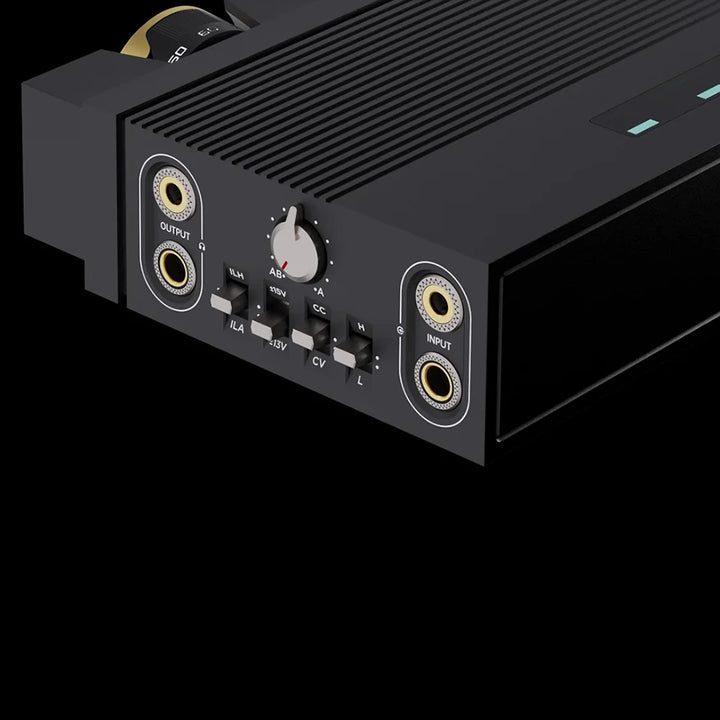

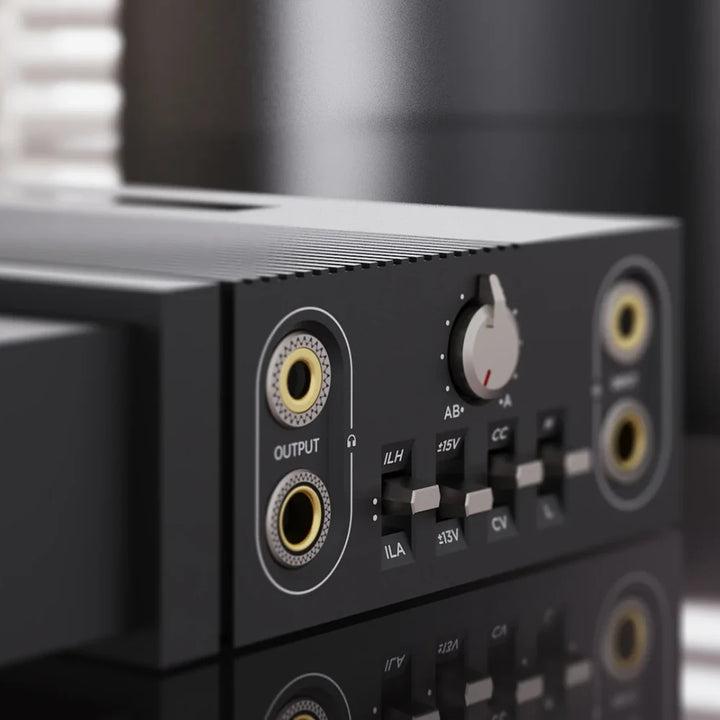

- ILA/ILH dual modes with high/low gain for 4 tube sound styles
- Precision constant current source with discrete components
- 12 Panasonic film capacitors for coupling
- Specially selected linear regulators for optimal performance
- Discrete circuit with 16 Nichicon audio-grade capacitors
- Selectable 13V/15V power supply voltage
- 6 Panasonic 18650 battery cells with low internal resistance
- Discrete large transistor emitters with 24 precision resistors
- AB to A mode with 11 adjustable static current levels
- CNC-machined metal dual-tube shielding and protective cover
- Tube vibration-damping design with 8 silicone buffers
- Two independent high-power power supplies
- Balanced output power: 6500mW@320Ω, 1200mW@300Ω
Specifications
| Circuit | Finely tuned with high voltage for tube anode |
| Modes | ILA/ILH dual modes with high/low gain for 4 tube sound styles |
| Constant Current Source | Precision with discrete components |
| Coupling Capacitors | 12 Panasonic film capacitors |
| Linear Regulators | Specially selected for optimal performance |
| Power Supply Voltage | Selectable 13V/15V |
| Battery Cells | 6 Panasonic 18650 with low internal resistance |
| Transistor Emitters | Discrete large with 24 precision resistors |
| AB to A Mode | 11 adjustable static current levels |
| Shielding | CNC-machined metal dual-tube shielding and protective cover |
| Vibration Damping | Tube vibration-damping design with 8 silicone buffers |
| Power Supplies | Two independent high-power power supplies |
| Output Power | Balanced 6500mW@320Ω, 1200mW@300Ω |
Description
L&P EA4 Flagship Portable High-Power Tube Amp
Maximizing Tube Sound Part 1
Optimized Tube Preamp Circuit: The voltage amplification is solely handled by the tube preamp, with the anode supplied by high voltage. This design fully releases the special tone of the tubes, delivering a rich and warm tube sound. The fully discrete power amp is designed purely for power output, focusing on current amplification.
Maximizing Tube Sound Part 2
The combination of ILA mode and high gain allows for additional tube amplification gain, enhancing the already rich tube sound. To actively attenuate the gain of the headphone amplifier’s input stage, rather than through simple resistive voltage division, preserving more musical details. Twelve Panasonic film capacitors are used for coupling in the tube preamp stage
Combination of multiple Tube-Tone
The ILA and ILH modes, combined with the high and low gain settings for the tube offer 4 rich and sweet sound styles, unlocking various listening experiences.
Comprehensive Reduce the Microphone Effect
A precision CNC-machined metal shield for dual tubes.
Eight high-damping silicone pads on both sides.
Resolving the Performance and
Longevity’s core problem
Panasonic Original Low-Resistance, High-Reliability Cells. Carefully Matched Cells for Voltage and Internal
Resistance. Each Cell in the Battery Pack Has an Internal Resistance Difference of Less Than 0.5 Milliohms.

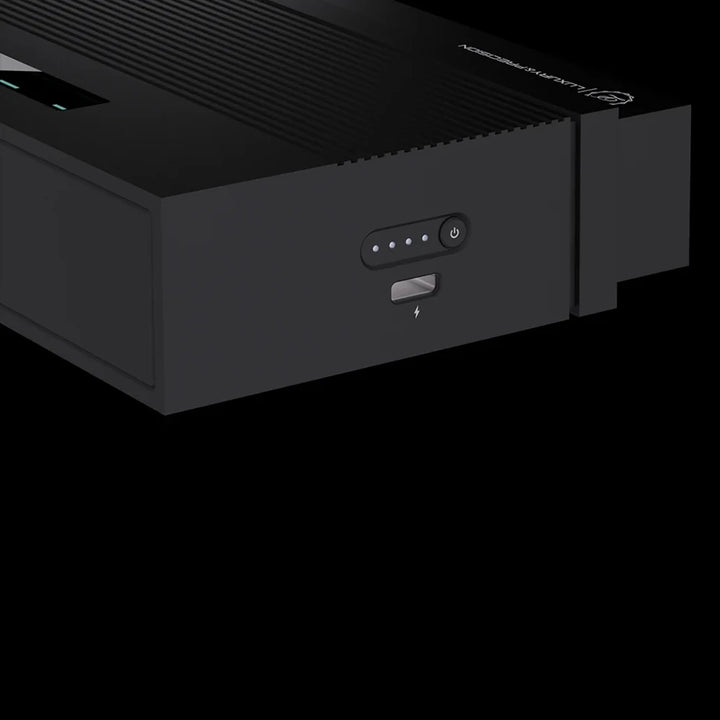

An Interesting and Useful Tube Preamp /Headphone Amplifier Switching Function
Double tap the power button to switch between pure tube preamp mode/tube preamp discrete headphone amp mode. Prevent accidental touches and sudden high volume that can occur with toggle switches or single-press buttons. Maximizes the benefits of the tube preamp circuit and mechanical design.
A combination of Technology and Art in Volume Control Design
The potentiometer is the same grade in the LP6 7th Anniversary Edition. The volume knob features added scale markings, making the potentiometer volume visible. Say goodbye to sudden loudness-enjoy precise and fine adjustments!
11-Level Adjustable Quiescent Current Design for Headphone Amp for Fine-tuning Sound Quality
AB class operation with a minimum quiescent current of around 10mA.A class operation with a maximum quiescent current of up to 50mA. Custom knob with smooth, tactile clicks allows you to easily adjust for different listening experiences.
