UM MEST MKII In Ear Monitors (IEM)

UM MEST MKII In Ear Monitors (IEM)

Product code:
MEST MKII
Available For Demonstration In Store
Availability In Stock
Guaranteed In Stock
Free Next Day Delivery
1-year-warranty
Trade in product
Book a Demonstration
Available to collect immediately

£1,199

Trade In

Want to Trade In? Get in Touch.

Demonstration

Request a demo for

UM MEST MKII In Ear Monitors (IEM)

Features

  • dBC-s Dual Sides Bone Conduction System
  • Carbon Fiber + Gold Foil
  • Quadbrid Design

Specifications

Product MEST MKII
Driver Types Dynamic + Balanced Armature + Electrostatics (EST) + Bone Conduction (Dual Sides Bone Conduction), 4-Way Quadbrid
Driver Counts 7+1 (7 Traditional Drivers + Dual Sides Bone Conduction System)
Sensitivity @1KHz 112 DBs
Frequency Response 20Hz-70KHz
Cable Sockets 2-Pin Flat
Shells One Piece Carbon Fiber + Gold Foil
Crossover 5-Way Crossover
Resistance 12.3Ω

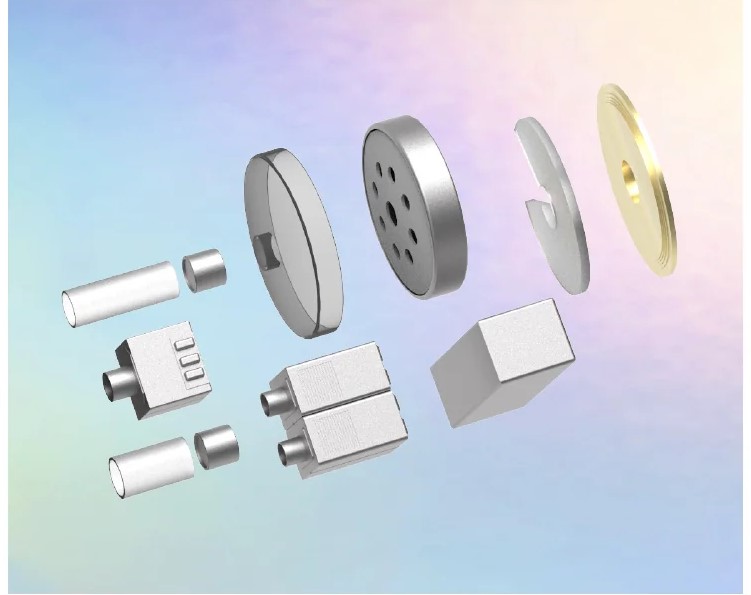

Driver Configuration 1 Dynamic Bass Driver + 2 BA Mid Drivers + 2 BA Treble Drivers + 2 EST Ultra High Drivers + 1 Full Range B2 Bone Conduction Driver
Cable UM Copper M2 Cable Custom Cable
Ear Tips AZLA SednaEarfit Xelastec SS | MS | M

Description

MEST MKII

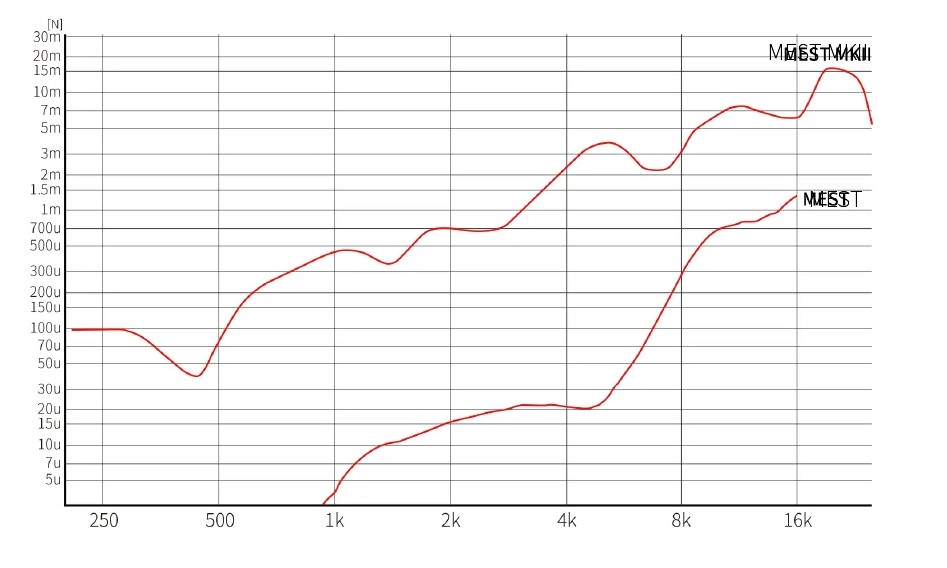

Bone Conduction Driver in the MEST. Both sensitivity and response range are significantly improved.

MEST MKII uses a double-sided piezoelectric bone conduction driver. The driver is placed in between two supporting plates. At the centre of the driver is the vibration board covered by ceramic coating on both the front and back.

The bone conduction driver now has a larger contact area with the shells (double-sided contact with the shell), which increased transmission efficiency and sensitivity.

dbc-s have an effective frequency response range from 500Hz to 20K Hz, which allows for full-range refinement.

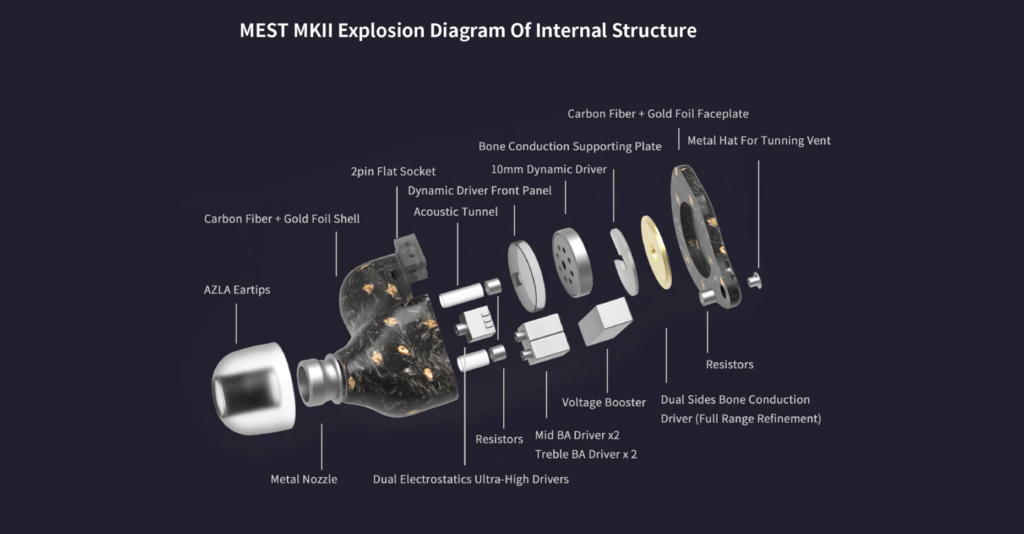

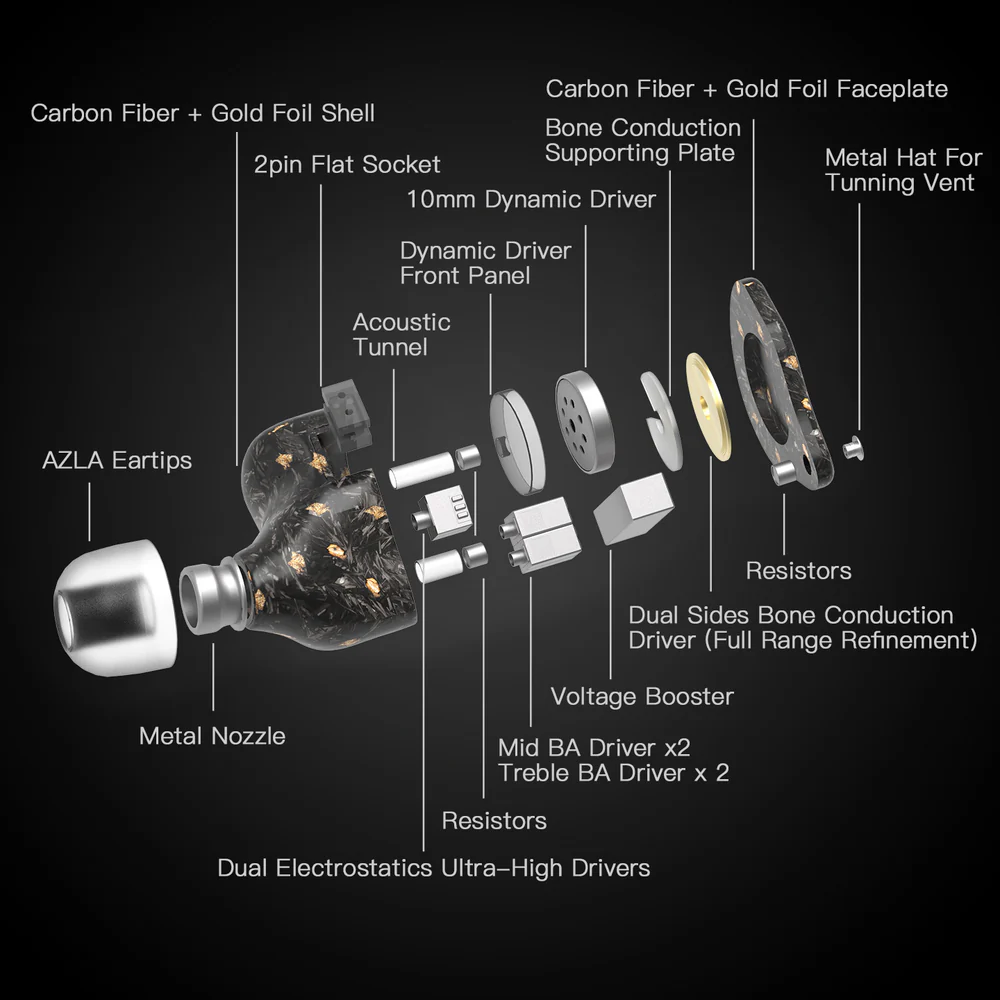

Driver Configuration Design

MEST MKII utilised a quadbrid design. It uses a dynamic driver for the bass, which usually has a more natural-sounding bass than the Balanced Armature bass solution. However, Balanced Armature drivers have advantages in resolution, especially for Mids and Treble.

Based on the DD plus BA hybrid design, we added two electrostatic drivers for Ultra-High Treble extension. Finally, the freshly upgraded dbc-S Dual Sides Bone Conduction System carries out a full-range refinement. The frequency range of MEST MKII can reach as high as 70 kHz.



The sound of bone conduction

When we eat a biscuit, we hear it crack because vibrations are transmitted through our teeth and skulls to our inner ear. Bone conduction sounds can be heard as we eat, drink or scratch our heads.

Early application:

Ludwig van Beethoven, the famous 18th-century composer who was almost entirely deaf, discovered Bone Conduction. Beethoven found a way to hear the piano’s sound through his jawbone by attaching a rod to his piano and clenching it in his teeth.

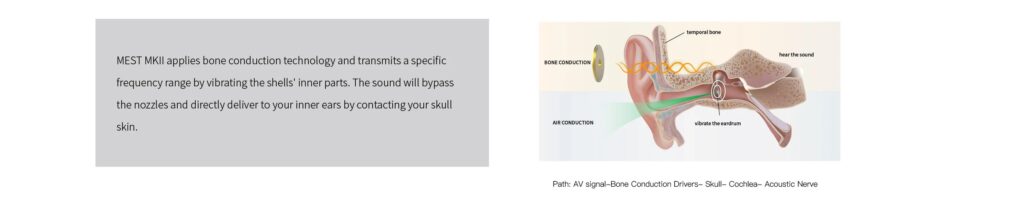

MEST MKII applies bone conduction technology and transmits a specific frequency range by vibrating the shells’ inner parts. The sound will bypass the nozzles and directly deliver to your inner ears by contacting your skull skin.

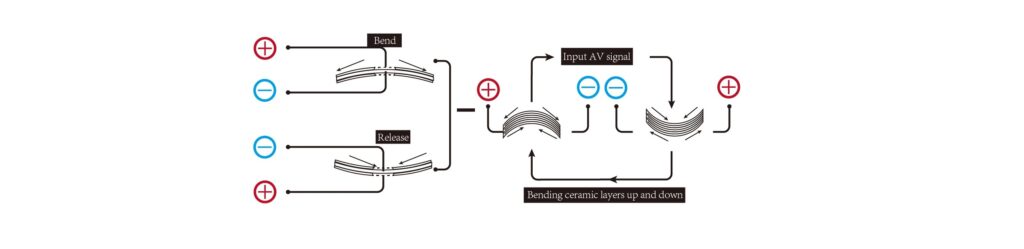

The bone conduction drivers are made of metal vibration pieces that are covered by piezoelectric ceramics. The ceramic layers will bend the metal vibration pieces to make micro-vibrations according to the changes of input alternating voltage.

More Comprehensive Hearing Experience Of Bone Conduction And Air Conduction

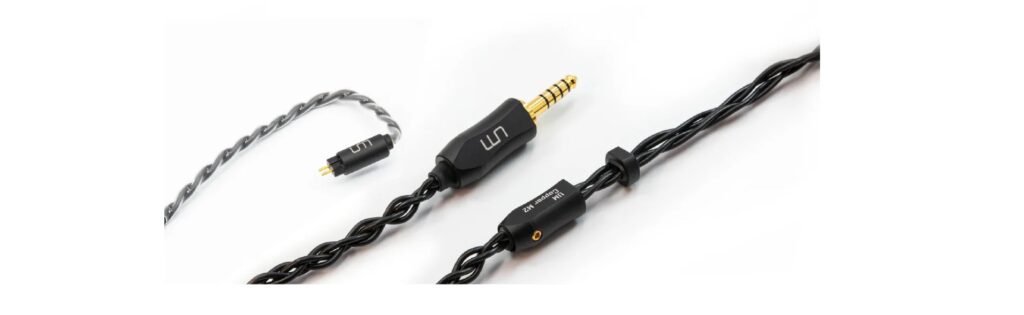

UM Copper M2 Cable

Made in copper, Excellent flexibility, Metal Y-splitter and chin-slider. Added 4.4mm termination to the options. Environmentally friendly coating material applied

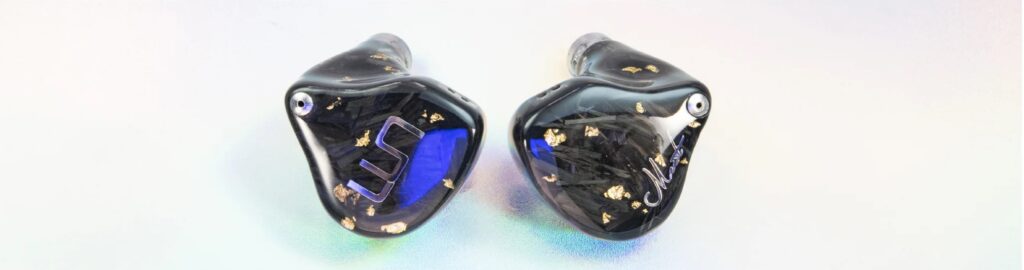

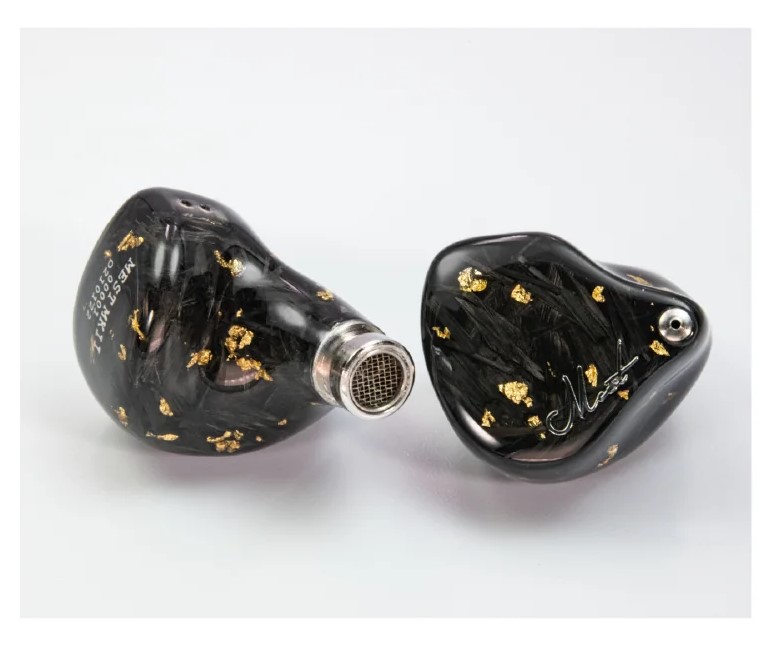

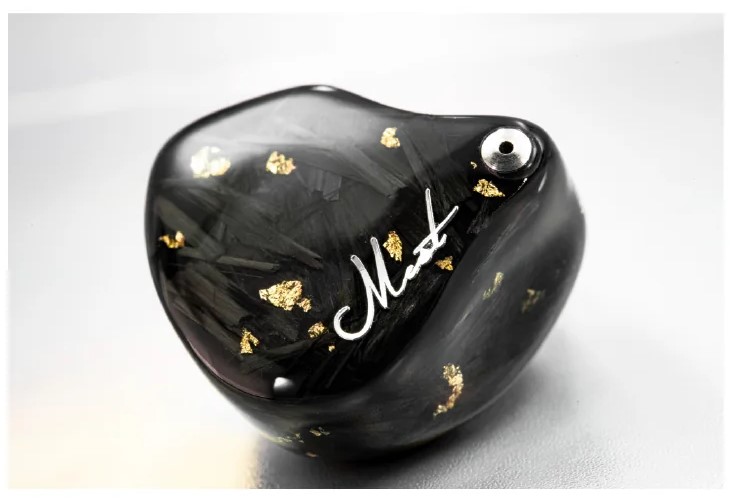

One Piece Carbon Fibre Shell

One Piece Carbon Fibre Shell—The Bone Conduction Driver’s effectiveness depends on the fitting coherence and skin contact. MEST MKII utilised an ergonomic shell design for universal shells, which improved the compactness significantly. The shell itself is also smaller and lighter.

The Upgraded Metal Vents

The upgraded metal vents with the brand-new design ensure the same amount of airflow going into the driver’s house from the back end, which reveals the full potential of the dynamic driver.

Additional information

Weight 1 kg
Dimensions 18 × 12 × 10 cm
size

4.4 Balanced

Warranty



Backed with a 1-year UM warranty
