Features
- Nine-driver quad-brid flagship IEM design
- Powerful bass with bone conduction technology
- Four electrostatic drivers for airy treble
- CNC magnesium shell with premium finish
- Exceptional staging, imaging, and detail retrieval

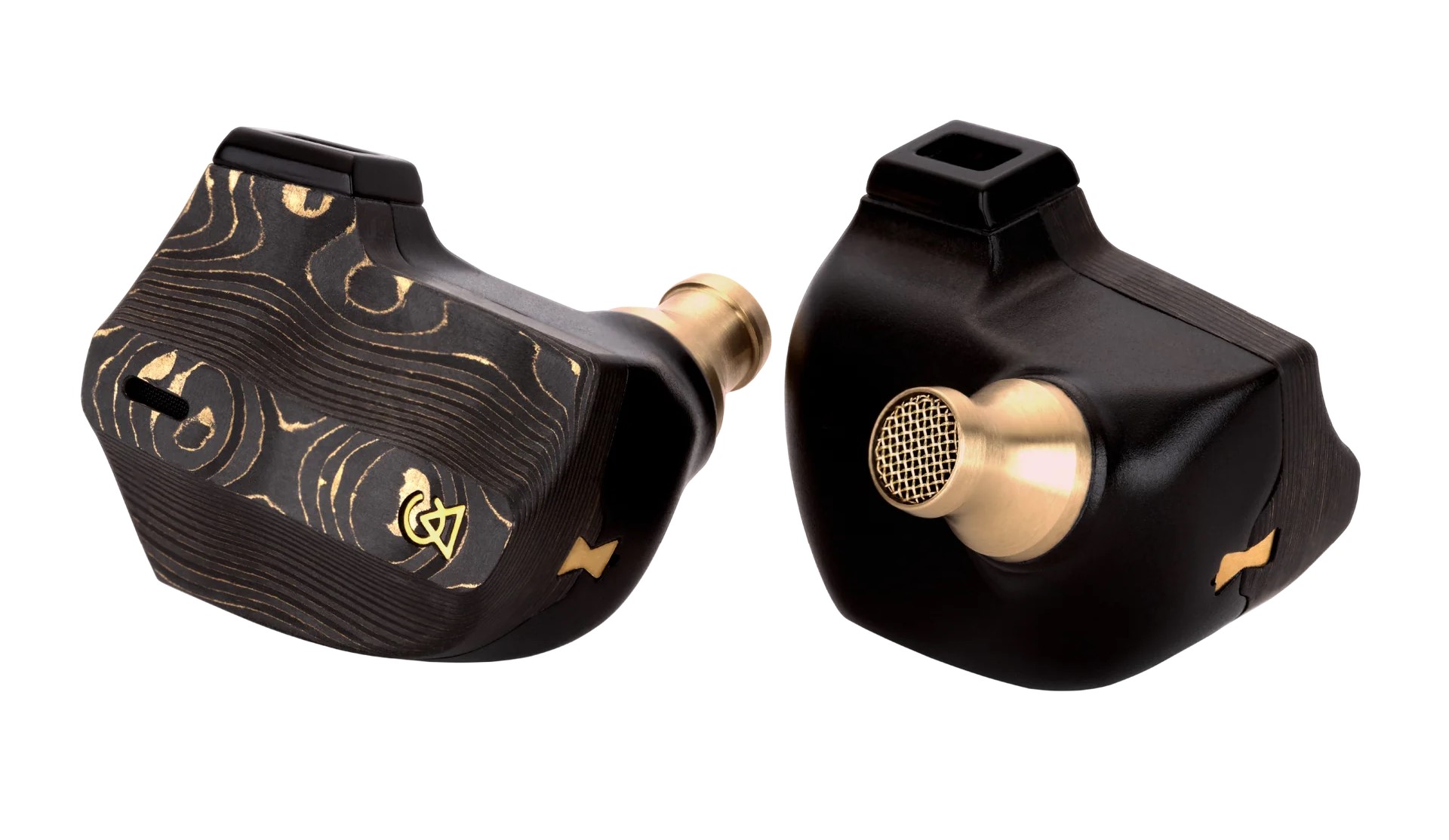

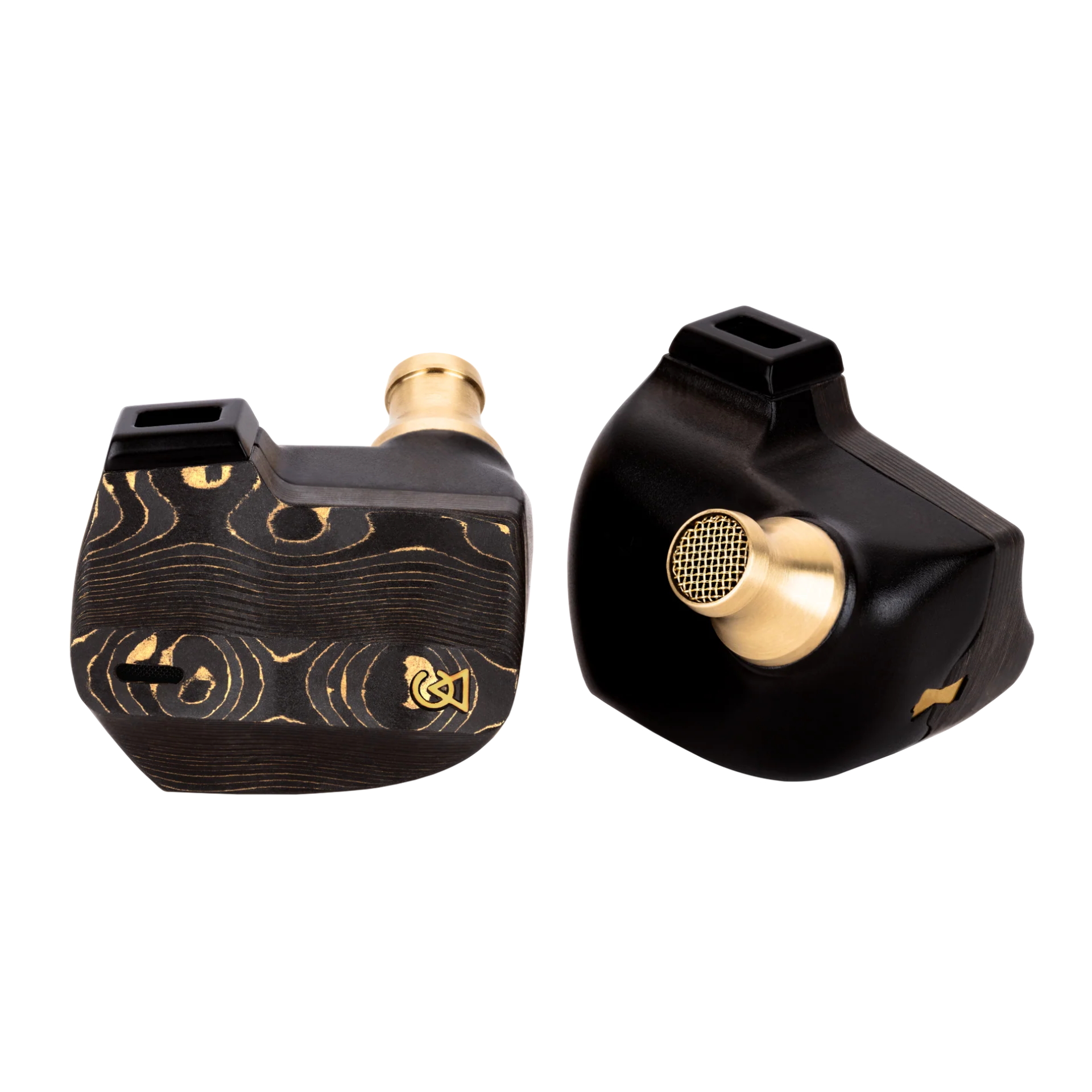

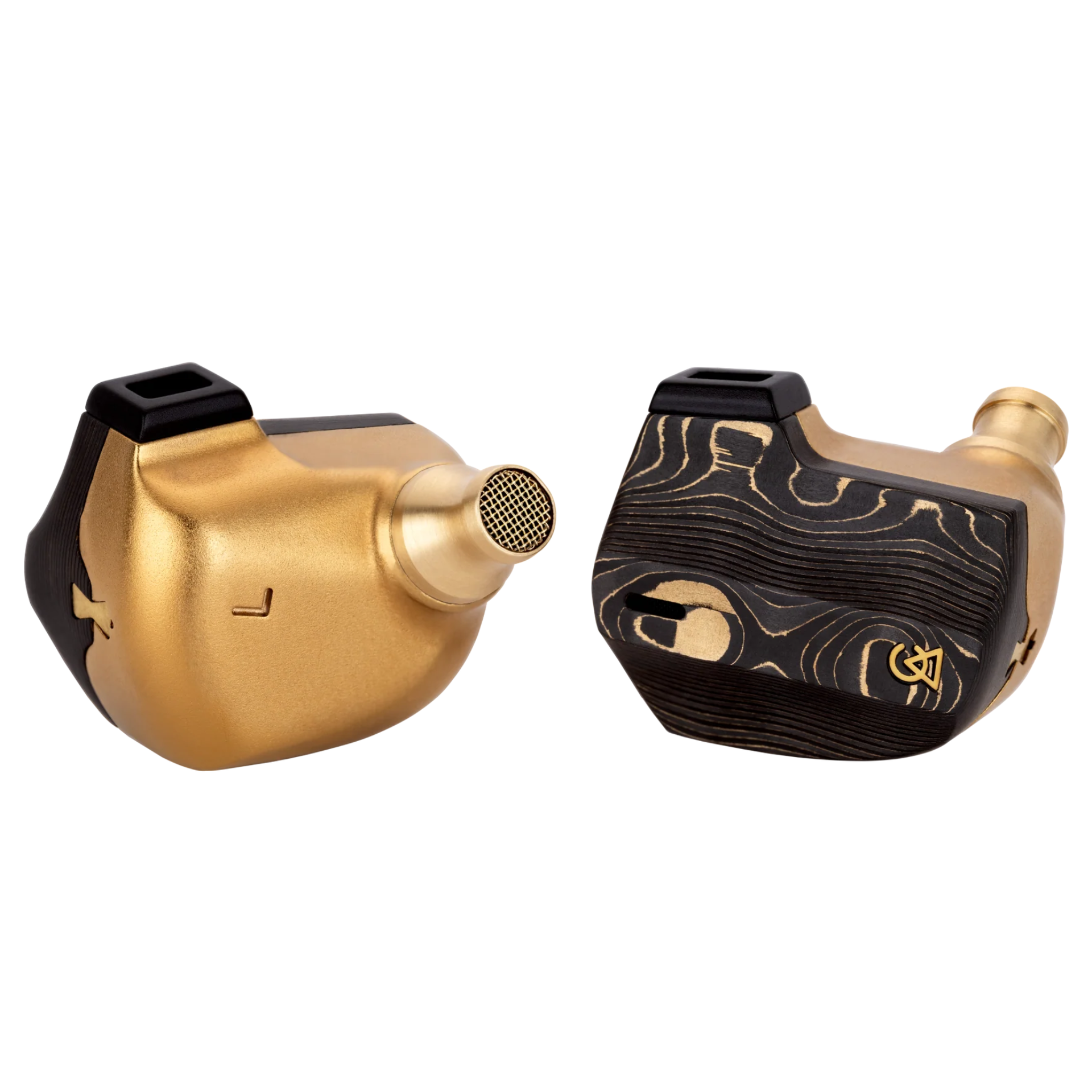

Campfire Audio Chimera – Quad-brid In-Ear-Monitor (IEM)
Campfire Audio Chimera – Quad-brid In-Ear-Monitor (IEM)
Pre-Order
Pre Order
Guaranteed In Stock
Guaranteed In Stock
Free delivery 7 - 14 daysFree delivery 7 - 14 days
1-year-warranty
Trade in productTrade in product
Book a Demonstration
Available to collect immediatelyAvailable to collect immediately£6,999
Features
Specifications
|
Specification |
Details |
|
Driver Architecture |
Nine driver, quad-brid |
|
Driver Configuration |
10mm bone conductor, 10mm True Glass dynamic driver, dual-diaphragm balanced armature, two high-frequency balanced armature, four electrostatic supertweeters |
|
Sound Profile (Headline) |
World class sound in every facet; powerful, tactile bass response – clear emotive mid frequencies – and soaring, effortless highs, accompanied by industry leading technical performance in staging, resolution, detail, and imaging |
|
Impedance / Sensitivity |
5.5Ω @ 1kHz |
|
Frequency Response / THD |
5Hz – 20kHz |
|
Housing / Shell |
Billet CNC Magnesium PVD shell (gold), vented Carbon fiber/brass Damascus lid, custom brass fasteners, brushed brass nozzle with mesh guard |
|
Included Cables |
ALO Audio Valence-6 high-purity copper & silver-plated copper blend / 4.4mm balanced termination |
|
DAC Included |
No |
|
Case & Carry |
Black leather zipper case with built-in pop-up display |
|
Tips & Extras |
Foam (sml) Silicone (sml) High & Clear silicone (sml) Breezy Bag Micro two pocket mesh bag (burgundy) Microfiber cleaning cloth IEM cleaning tool |
Description
Next evolution in premium, portable audio performance
Chimera marks the next evolution in premium, portable audio performance. Driven by a quad-brid, nine-driver internal architecture blending the best in bone conduction, dynamic driver, balanced armature, and electrostatic driver technologies with Campfire’s precision acoustic engineering, Chimera delivers a new level of technical acoustic performance.
Power, speed, & Balance
The mythological Chimera is represented by the lion, snake, and goat – it is the spirit and character of this mythological beast that is conveyed in Chimera’s astounding sonic reproduction. Bone conduction and our True Glass dynamic drivers deliver tactile, extended, and textured lows, that remain fast and accurate due to the resonant properties of Chimera’s magnesium shell and the unique structural character of the glass dynamic driver. Three premium balanced armatures and four electrostatic supertweeters create soaring detail, extension, and air with extraordinary speed and sonic richness. The natural balance of these four technologies is further emphasized through the experienced and careful acoustic treatment to effortlessly juxtapose and blend their strengths.
Driver Selection
Quad-brid driver architecture10mm Bone conduction driver
Chimera’s 10mm bone conductor is adds powerful resonance and low-frequency impact. Embedded in a custom engineered housing pocket and paired with a magnesium shell to improve conductance and create visceral physicality.
10mm True Glass dynamic driver
Powering low and low/mid frequencies, Chimera features an all-new True Glass DD. Created in partnership with Glass Acoustic Innovations this new dynamic driver uses specialize alkali glass processed for strength and acoustic performance
Two high-frequency balanced armatures
Two premium balanced armatures work in unison to deliver crisp, accurate, lightning fast high-frequency response; revealing nuance and micro-detail with astounding realism.
Quad electrostatic super-tweeters
Extending Chimera’s high frequencies to add shimmer, air, and clarity, these four drivers move with incredible precision to reproduce cymbals, reverb, delay trails, and micro detail.
components & tuning
Shell-embedded conduction
Engineered to increase surface contact and sonic transmission of Chimera’s bone conductor. Chimera’s shell features a customised internal ‘pocket’ that helps maximize surface contact and physical transmission of the bone conduction driver.
Targeted pressure valve
Backing Chimera’s True Glass dynamic driver is rear pressure valve ensuring even air pressure on each side of the diaphragm and allowing greater accuracy and even movement.
Acoustic routing and spatial tuning
Chimera’s acoustic routing and spatial engineering underwent over fifty revisions to hone and perfect its powerful sonic signature. Every nuance and detail carefully shapes driver performance to highlight and elevate driver response.
Hybrid vintage/ceramic capacitors
Aiding with Chimera’s driver cohesion is a vintage ceramic-film capacitor chosen specifically for its compatibility and synergy with Chimera’s internal architecture. This special component helps to seamlessly blend frequency compartmented driver assemblies and to elevate and unify its sonic presentation.
‘Master track’ tuning filter
Layered into Chimera’s nozzle is a final stage tuning damper that adds a cohesive overall tuning adjustment at the last stage of Chimera’s output.
Experience in craftsmanship
Campfire Audio has designed, engineered, and hand-assembled premium IEMs from our sole location in Portland, Oregon for over a decade. Chimera is meticulously crafted, individually fine tuned, with care and precision at every step.
Materials & build
CNC Electro-plated PVD Magnesium
Chimera’s magnesium housing is selected for its unique resonant quality, heightening the physicality and impact of the bone conduction low driver. Engineered with an internal ‘pocket’ to embedd the BC driver and increase surface contact.
Carbon fiber-brass Damascus lid
Beautiful, organic, durable, and unique. Layers of brass are folded into carbon fiber and CNC machined to reveal unique shapes and gradients. Each Chimera features its own special fingerprint with no two sets being the same.
Custom lid ventilation
Chimera features a vented housing design that allows for comfortable balance to internal ear pressure.
Machined brass nozzle
High quality brass is long-lasting and resilient, ensuring you can change ear tips worry free.
Standard 2-pin connectors
Chimera uses standard .78mm 2-Pin connectors, using high-quality connector pins and receivers and a recessed installment for added stability and durability.
ALO Audio Valence-6 Cable
ALO Audio returns with a new premium cable
Six High-purity conductors
The Valence-6 cable features six conductors, four high purity copper conductors paired with two 50/50 pure copper/SPC conductors.
Aluminum Hardware
Lightweight, durable aluminum hardware at cable terminations and y-split
Adjustable slider
Easily adjust and secure your cable with an aluminium cinch
2 Pin Connector
Durable recessed two-pin cable interface
Additional information
| Colour | Black, Gold |
|---|
Warranty
Backed with a 1-year manufacturer’s Warranty
