Cayin Audio N7+ Portable Digital Audio Player (DAP)
Cayin Audio N7+ Portable Digital Audio Player (DAP)
Available To Order
Free delivery 5 - 7 days
1-year-warranty
Trade in product
Book a Demonstration
Available to collect immediately
£1,299
Features
- Fully-discrete, fully-balanced design for superior performance
- Selectable Class A / AB headphone amplifier circuit operating modes
- Up to 330mW for 3.5 SE + 690mW for 4.4 BAL power output
- Independent power supply for the digital and analog circuits
- Optimized power system offering up to 13hrs of playback
Specifications
| CPU / MCU | Qualcomm Snapdragon 665 |
| Operating System | Customized Android 12 |
| Memory | 4 GB LPDDR4 RAM |
| Internal Storage | 64 GB |
| Expandable Storage | microSD up to 1 TB (not in your list, but official) |
| Display | 5.0″ FHD (1080 × 1920) TFT |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac |
| DAC | Fully balanced discrete 1-bit resistor network DSD DAC |
| Phone Out (Power Output) | 330 mW @ 32 Ω (3.5 mm SE), 690 mW @ 32 Ω (4.4 mm BAL) |
| Phone Out (Output Impedance) | 0.6 Ω (3.5 mm SE), 1.2 Ω (4.4 mm BAL) |
| Pre-Amp Out (Output Level) | 4.0 Vrms max (3.5 mm SE), 7.0 Vrms max (4.4 mm BAL) |
| Pre-Amp Out (Output Impedance) | 110 Ω (3.5 mm SE), 220 Ω (4.4 mm BAL) |
| Battery | 3.8V 9000 mAh (34.2 Wh) |
| Battery Life (Phone Out) | ~11 hr (Class A, 3.5 mm SE), ~9 hr (Class A, 4.4 mm BAL) |
| Dimensions | 142 × 77.8 × 22.2 mm |
| Weight | ~370 g |
Description
N7+
Pure 1-Bit Android-based Digital Audio Player
New Sounds, Greater Heights A Voyager to Uncharted Frontiers
Power Boost
The optimized headphone amplifier architecture delivers a significant boost in output power—up to 330mW (+32%) from the 3.5mm PoE and 690mW (+38%) from the 4.4mm PoE—making it effortlessly compatible with everything from high-sensitivity IEMs to high-impedance headphones. This upgrade ensures richer detail and greater dynamic control across a wide range of listening gear.
Enhancing the design further, the four power transistors have been upgraded to PHPT610030NPK models, improving transient current handling. Additionally, the seven OPA1612A op-amp ICs now use a SOIC-8 package, offering significantly better thermal stability. The improved pin layout and electrical characteristics reduce latency and crosstalk, resulting in cleaner signal transmission and purer audio reproduction.
Fully Discrete and Fully Balanced Portable Audio

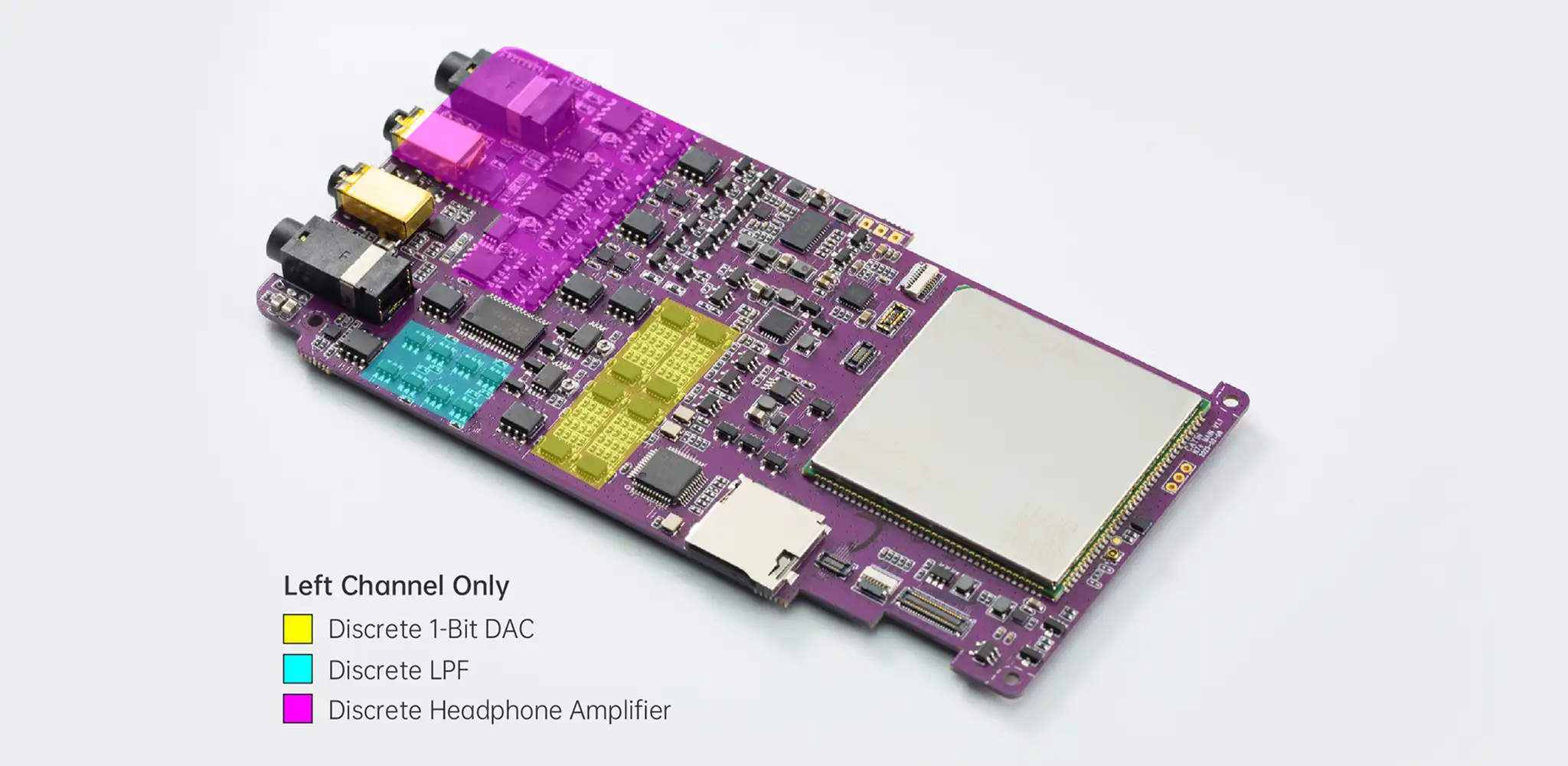

A groundbreaking product in the portable audio market, the N7’s DAC is constructed from 128 discrete resistors, with 32 resistors per channel across four channels forming a fully differential balanced structure. This truly demonstrates a 1-bit circuit architecture comprised of fully differential discrete components.
Discrete components are used throughout the LPF closed-loop gain, negative feedback level, and circuit architecture, ensuring high-performance overall circuit amplification. The AMP utilizes audio-specific field-effect transistors (JFETs) for the differential input stage, and paired-package transistors for the voltage amplifier and power output stages, resulting in low internal resistance and strong load-driving capability.
Tuned for Exceptional Sound
The power system, combined with 1-bit circuitry, provides completely independent power supply for the digital and analog circuits. Within the digital circuitry, high-level and low-level logic circuits are also completely independent, ensuring that the transmission and amplification process is free from interference from clock signals, resulting in a cleaner audio signal
MQA (Master Quality Authenticated)
MQA (Master Quality Authenticated) is a new end-to-end technology that allows studio-quality music to be transmitted and stored using a new audio processing method called Music Origami. This technology allows files to be fully expanded into the highest-quality source upon playback.
The N7+ features MQA technology, allowing users to enjoy the original master audio experience when playing MQA audio files and using apps that stream MQA music. The N7+ is capable of full 16x MOA decoding.
Fast and Smooth System
Powered by a Qualcomm Snapdragon 665 octa-core 64-bit processor, this device combines 4GB of RAM with 64GB of internal storage, plus support for up to 1TB via TF card expansion. Running on Android 12 with DTA lossless output support, it ensures high-quality audio performance across Android devices.
Dual-band 2.4GHz/5GHz Wi-Fi is enabled by a specially designed metal-frame antenna, delivering strong signal strength and reduced interference for fast, stable streaming. It also supports OTA firmware updates and app installations for a customizable and future-ready experience.
Long-Lasting Battery
The N7+ features an optimized internal power system design. In PoE mode (Class AB), a single-ended battery life of 3.5″ allows for up to 13 hours of full-day music playback, ensuring you never have to worry about running out of power. It supports PD2.0 fast charging.
Upgraded Look and Feel
The N7+ has been comprehensively upgraded in both appearance and craftsmanship. The new titanium-colored housing is crafted from aircraft-grade aluminum-magnesium alloy using a CNC process, balancing lightweight design with high-strength protection. It visually displays a delicate metallic luster, ensuring “at first sight, at first grip, you’ll fall in love.”
Cayin N7 vs N7+
| Feature | Cayin N7 | Cayin N7+ |
| DAC Architecture | Fully balanced discrete 1-bit DSD DAC | Same architecture, refined implementation |
| Amplifier Output (3.5 mm SE) | ~250 mW @ 32 Ω | ~330 mW @ 32 Ω (+32%) |
| Amplifier Output (4.4 mm BAL) | ~500 mW @ 32 Ω | ~690 mW @ 32 Ω (+38%) |
| Battery Life (3.5 mm SE) | ~10 hours | ~13 hours |
| Battery Life (4.4 mm BAL) | ~8.5 hours | ~9 hours (Class A) |
| Charging | Standard PD 2.0 | Faster, optimized PD 2.0 |
| Processor & Memory | Snapdragon 665, 4 GB RAM, 64 GB storage | Same Snapdragon 665, 4 GB RAM, 64 GB storage |
| Expandable Storage | microSD up to 1 TB | microSD up to 1 TB |
| Display & OS | 5″ TFT, 1080p, Android 12 | 5″ FHD TFT, 1080p, Android 12 |
| Build & Weight | CNC aluminum, ~380 g | Magnesium-aluminum alloy, titanium finish, ~370 g |
| Connectivity | USB-C, I²S, SPDIF (USB), Bluetooth 5.0, Wi-Fi | USB-C, I²S, SPDIF (USB), Bluetooth 5.0, Wi-Fi |
| MQA Support | Full 16× decoding | Full 16× decoding |
| Other Enhancements | — | Upgraded transistors, op-amps, better stability |
In The Box
- User manual
- Cayin N7+ DAP
- N7+ leather case
- 4.4mm to 2.5mm (F) adapter
- 3.5mm to 2.5mm (F) adapter
- USB-C cable
- Temper glass screen protector
Additional information
| Colour | Black |
|---|
