£419
| Component | Specification |
| Digital Audio Processor | High-performance digital audio processor supporting ultra-high-resolution format and sample rate conversion. |
| DAC | R-2R DAC: Fully discrete 24-bit balanced R-2R DAC built with 192 × 0.1% ultra-precision thin-film resistors (48 × 4 configuration). 1-Bit DAC: Fully discrete 1-bit balanced DAC built with 128 × 0.1% ultra-precision thin-film resistors (32 × 4 configuration). |
| OP-AMP IC | OPA1612 × 4, OPA1662 × 2 |
| Volume Control | NJW1195 full-balanced analog volume controller |

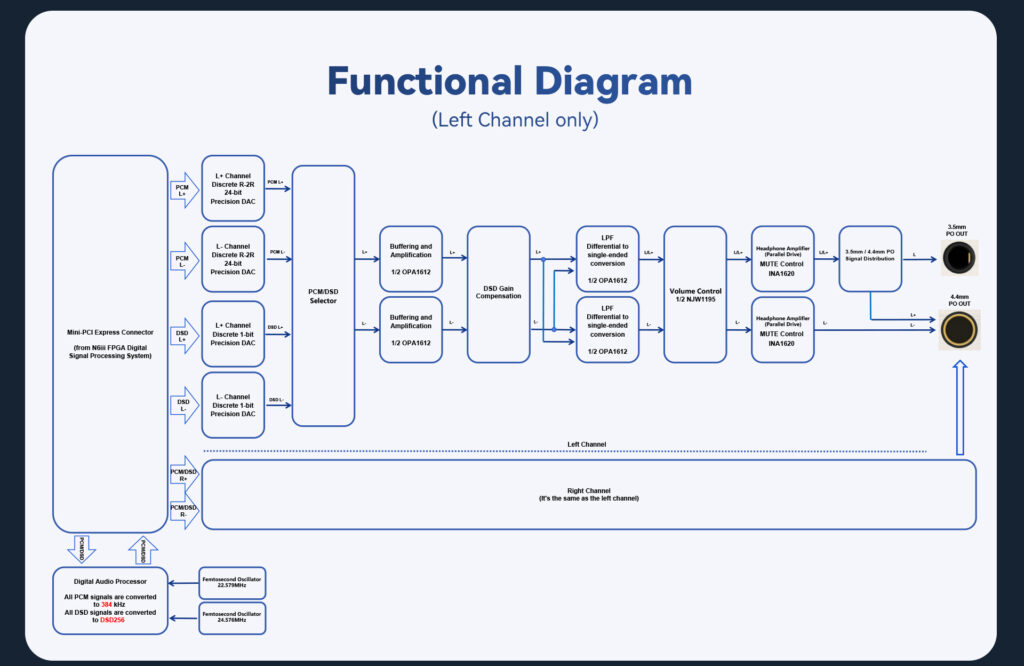

| Headphone Amplification Circuit | 4 × INA1620 dual-channel op-amps, with internal channel parallel drive. Forms a quad-channel fully balanced headphone amplifier architecture. |

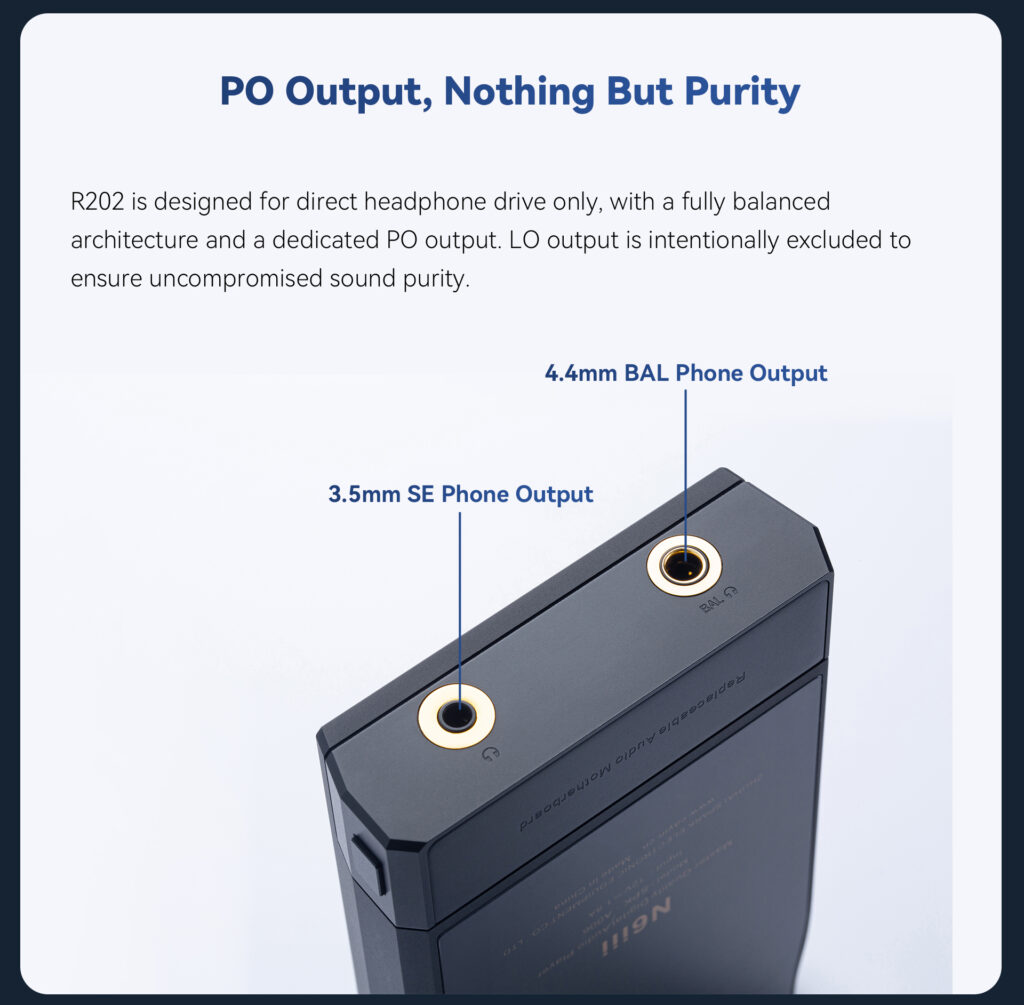

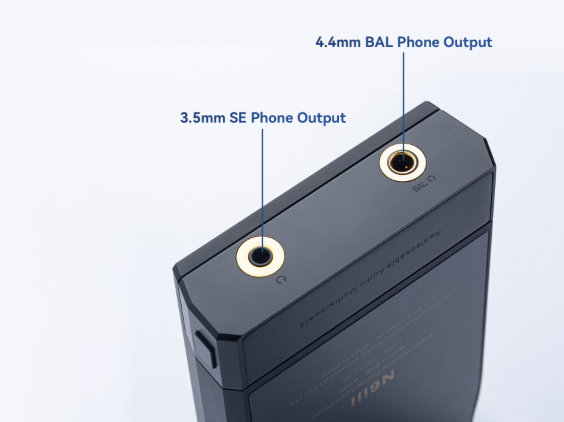

| Output Interface | 3.5mm Single-Ended PO 4.4mm Balanced PO |

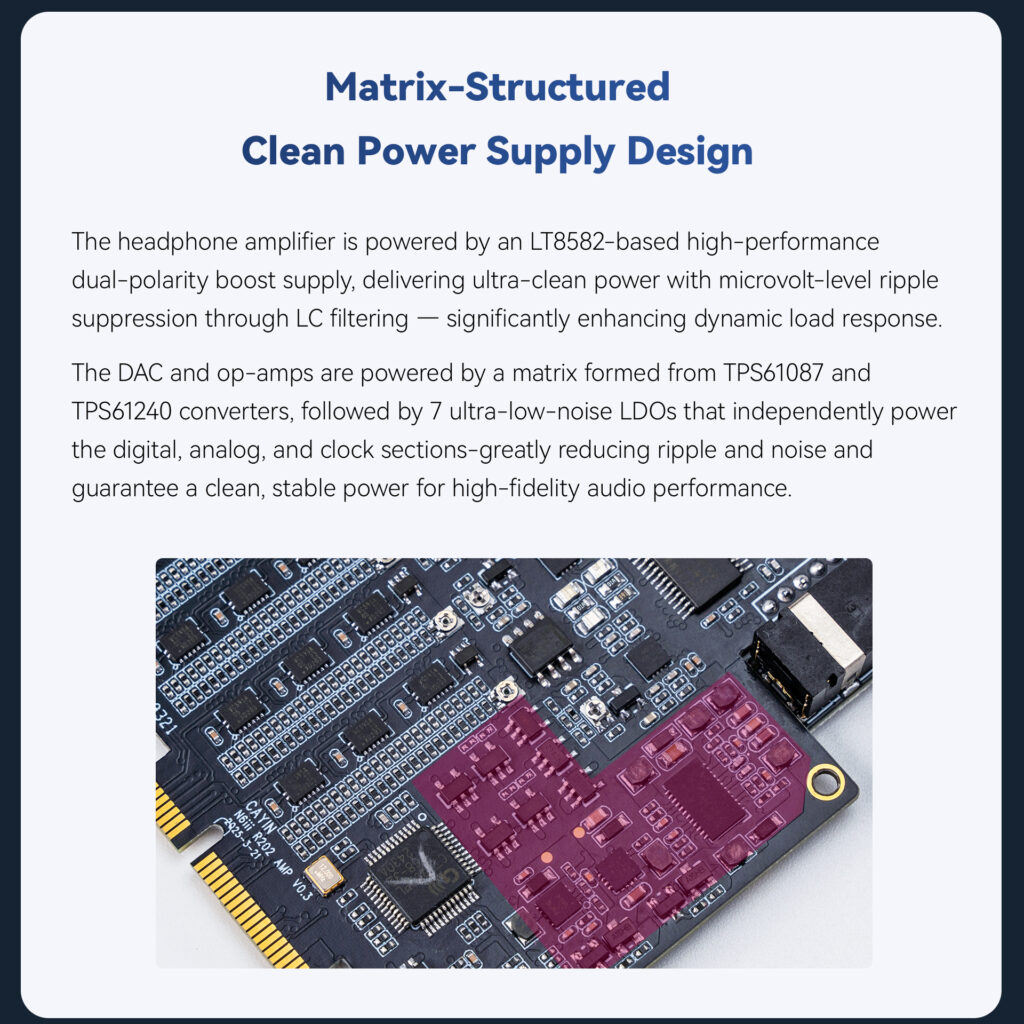

| Headphone Amp Power Supply | LT8582 |
| DAC Power Supply | TPS61087 + TPS61240 matrix 5 ultra-low-noise LDOs |
| LPF (Low-Pass Filter) Power Supply | 2 ultra-low-noise LDOs |
| Audio Motherboard Net Weight | 62g |
| N6iii Net Weight (with R202 installed) | 350g |
Battery Life (Tested with N6iii Main Unit)
| Mode | Auto | R–2R | 1Bit |
| 3.5mm SE PO / 4.4mm BAL PO | 15 hrs | 16 hrs | 14 hrs |

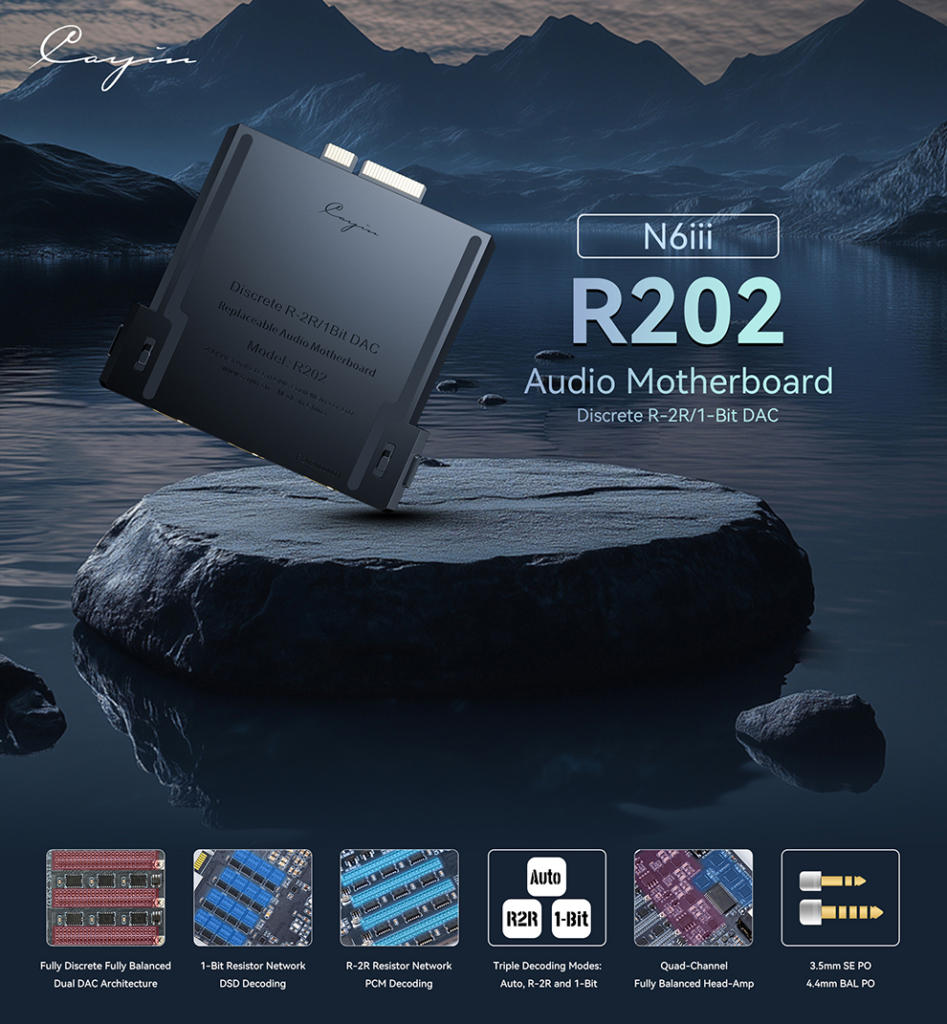

R202 Specifications
| 1–Bit DAC (@DSD128) | R–2R DAC (@24bit 192kHz) | |
| 3.5mm SE PO | ||
| Output Impedance | 0.5Ω (@32Ω load) | 0.5Ω (@32Ω load) |
| Output Power | 250mW (32Ω) | 250mW (32Ω) |
| Frequency Response | 20Hz–20kHz (± 0.2dB) | 20Hz–20kHz (± 0.1dB) |
| THD+N | 0.007% | 0.013% |
| Dynamic Range | 115dB | 90dB |
| Signal–to–Noise Ratio | 117dB | 115dB |
| Channel Separation | 78dB (1kHz,32 Ω) | 78dB (1kHz,32 Ω) |
| 4.4mm BAL PO | ||
| Output Impedance | 0.8Ω (@32Ω load) | 0.8Ω (@32Ω load) |
| Output Power | 550mW (32Ω) | 550mW (32Ω) |
| Frequency Response | 20Hz–20kHz (± 0.2dB) | 20Hz–20kHz (± 0.1dB) |
| THD+N | 0.005% | 0.013% |
| Dynamic Range | 115dB | 90dB |
| Signal–to–Noise Ratio | 117dB | 115dB |
| Channel Separation | 110dB (1kHz,32 Ω) | 90dB (1kHz,32 Ω) |
Change to a New Audio System “Just Like That
Built-in dedicated microcontrollers interact with the 665 MCU to enable comprehensive audio adjustments and independently track the operation status of the Audio Motherboards.

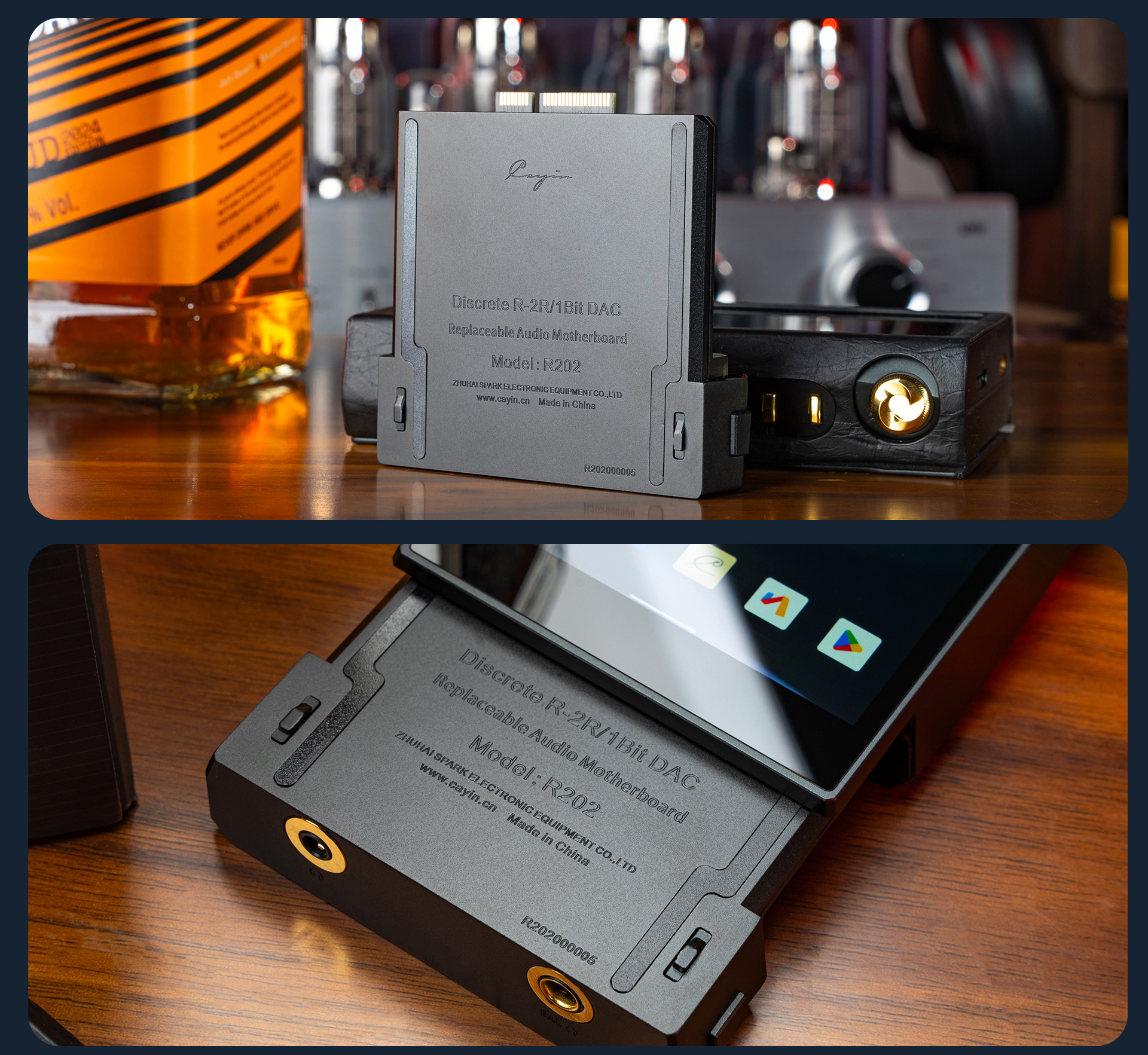

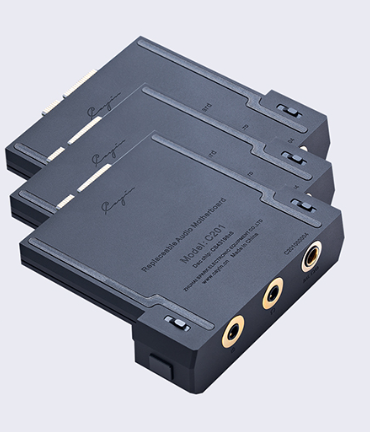

Fully modularised the audio system in the DAP, a complete replacement of both the DAC and analogue circuits.

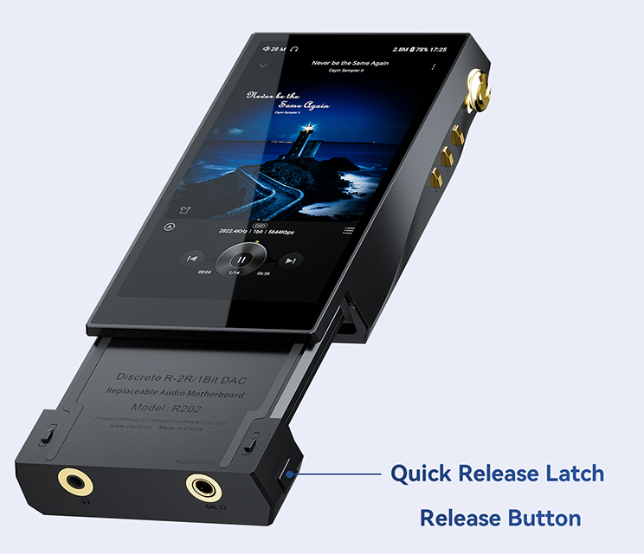

The Gen2 Audio Mainboards feature a completely reimagined tool-free, quick-release self-locking latch.
Changing the Audio Motherboard will be as simple as:
Press > Pull > and Push > Click
Every Audio Motherboard is a fully optimised solution from the ground up, with every swap becoming an entirely new auditory experience — you will unlock limitless possibilities.

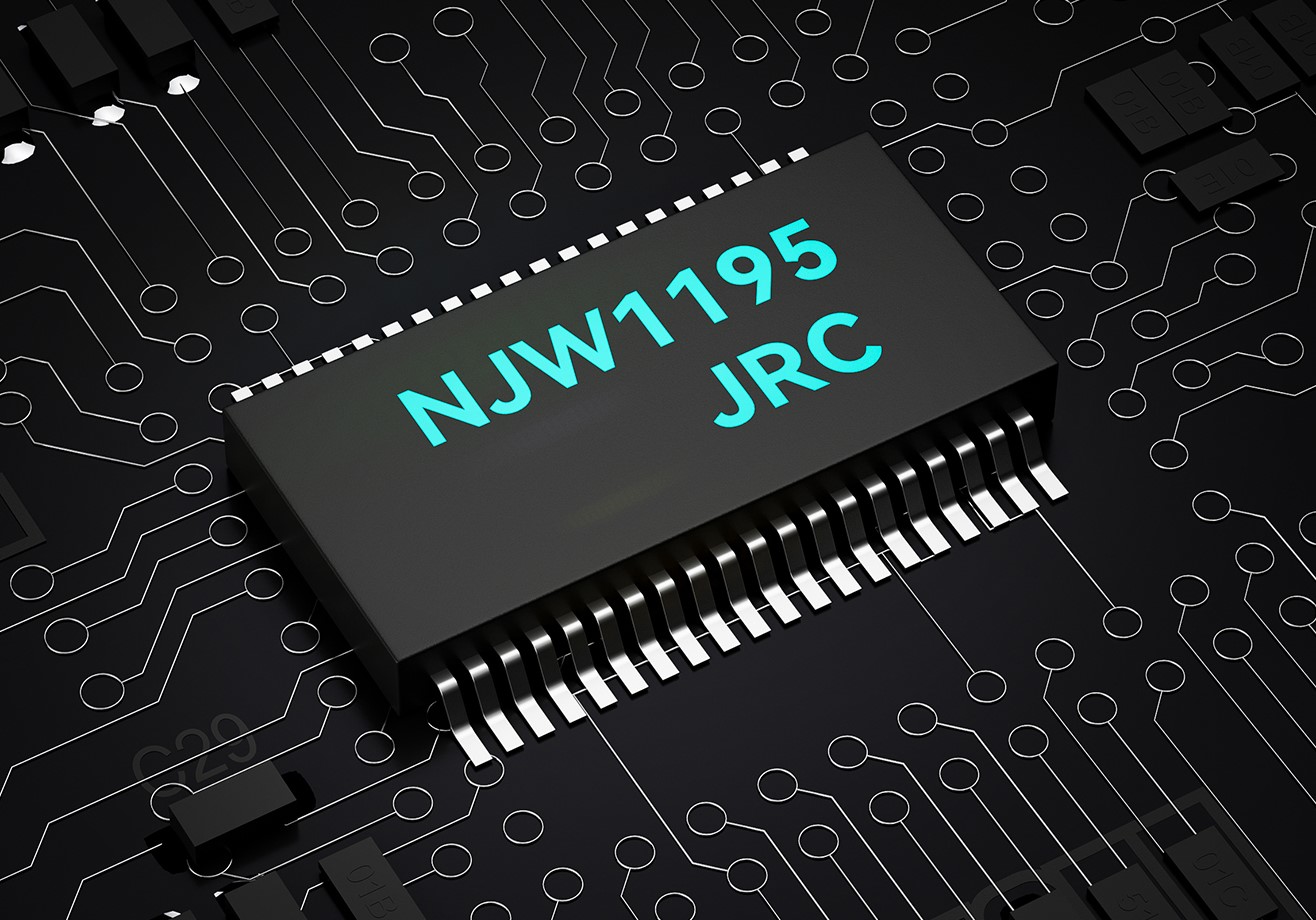

Equipped with the NJW1195 controller, R202 offers 256-step, 0.5dB volume control across four fully balanced channels. It ensures ultra-low distortion, accurate channel tracking, and smooth, high-resolution volume adjustment.
NJW1195 JRC
