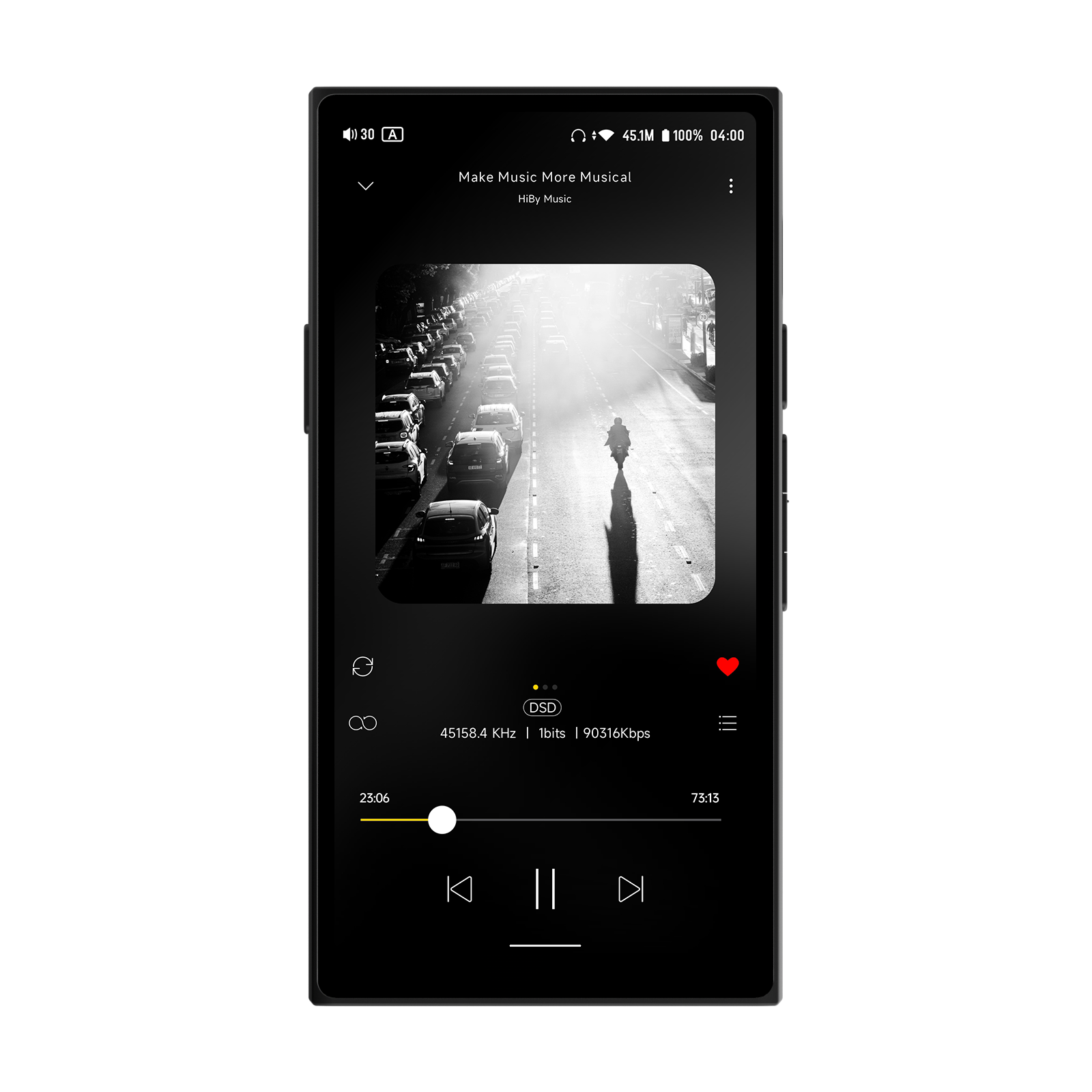

HIBY R8 II Aluminum Alloy – Flagship Digital Hi-End Audio Player (DAP)

HIBY R8 II Aluminum Alloy – Flagship Digital Hi-End Audio Player (DAP)

Product code:
HIBY R8 II - blackHIBY R8 II - redHIBY R8 II - Silver
Available on demonstration
Available on demonstration
Available on demonstration
Product codeN/A
Availability In Stock
Available To Order
Available To Order
Available To Order
Free delivery 2 - 4 days
Free delivery 2 - 4 days
Free delivery 2 - 4 days
1-year-warranty
Trade in product
Trade in product
Trade in product
Book a Demonstration
Available to collect immediately
Available to collect immediately
Available to collect immediately

£1,149

Trade In

Want to Trade In? Get in Touch.

Demonstration

Request a demo for

HIBY R8 II Aluminum Alloy - Flagship Digital Hi-End Audio Player (DAP)

Features

  • Exclusive Darwin-MPA Architecture (Multiphase PWM Array)
  • 16-Way Current Mode DAC
  • Asymmetrical Design with Elegant Craftsmanship
  • Ultimate Level Flagship Audio Player
  • High-Gloss Stainless Steel Chassis

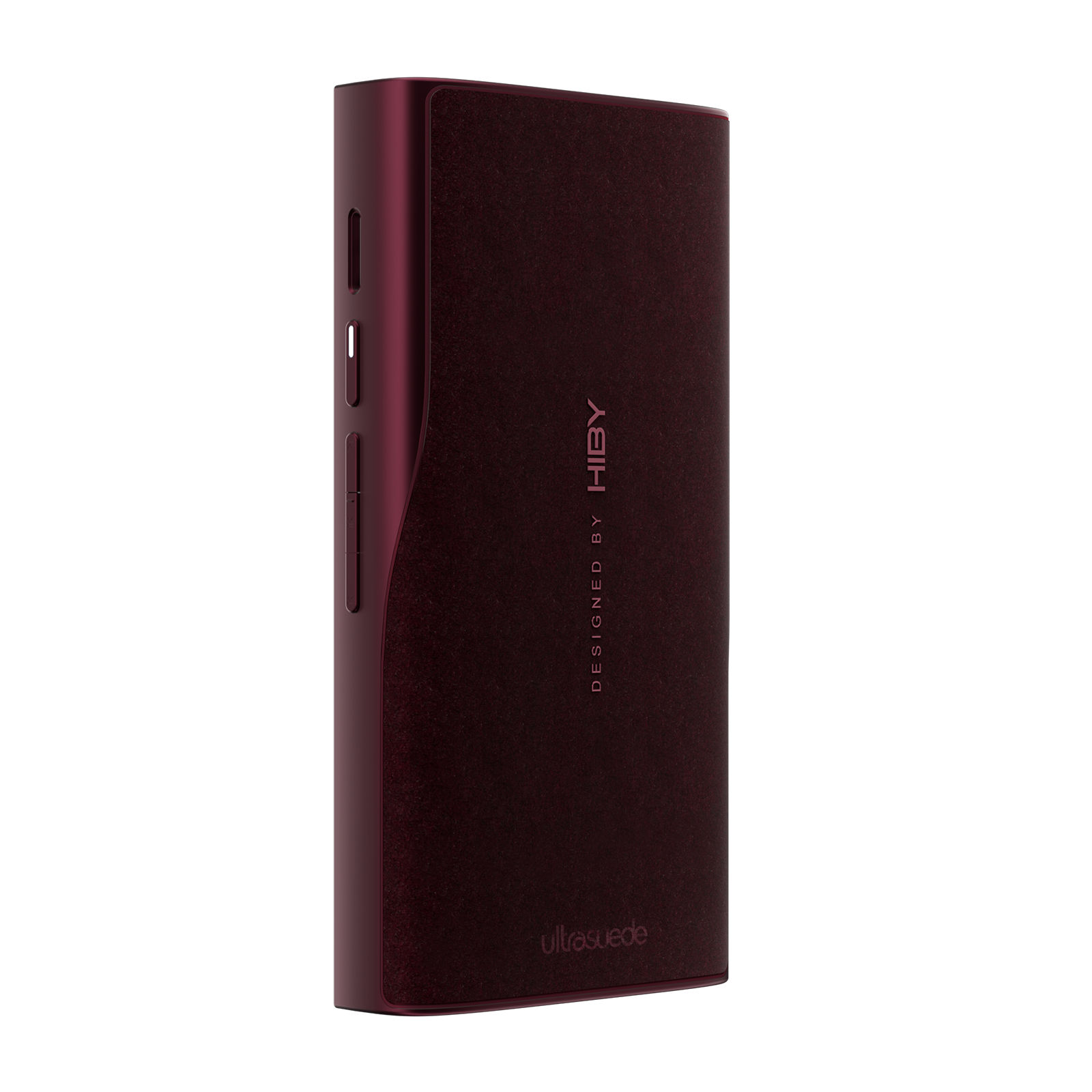

  • Premium ALCANTARA Back Panel
  • Class A/AB Dual Headphone Amplification Circuit
  • Dual ADA4625-2 High-Current Output OPAmp Chips
  • 16 Customized Transistors
  • Precise Volume Adjustment with NJW1195 Chipset
  • Accurate and Pure Sound Reproduction With Lowest Distortion
  • Unleash True Power with Turbo Mode
  • Flagship-level Analog Circuit Components
  • Dual Independent High-Frequency Precision Crystal Oscillators
  • Extended Battery Life With 12000mAh Battery
  • Independent Power Supply Design
  • High-Efficient Pure Copper Battery Frame
  • Qualcomm 665 SoC
  • 8GB RAM+256GB Internal Storage

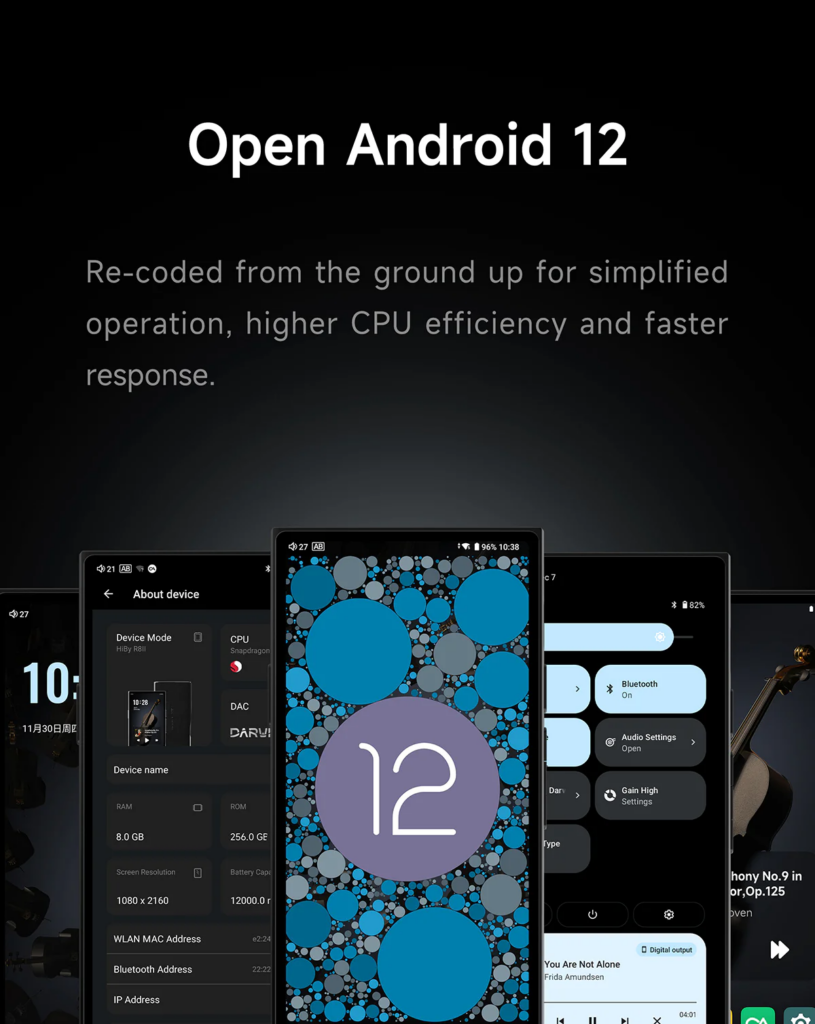

  • Open Android 12 OS

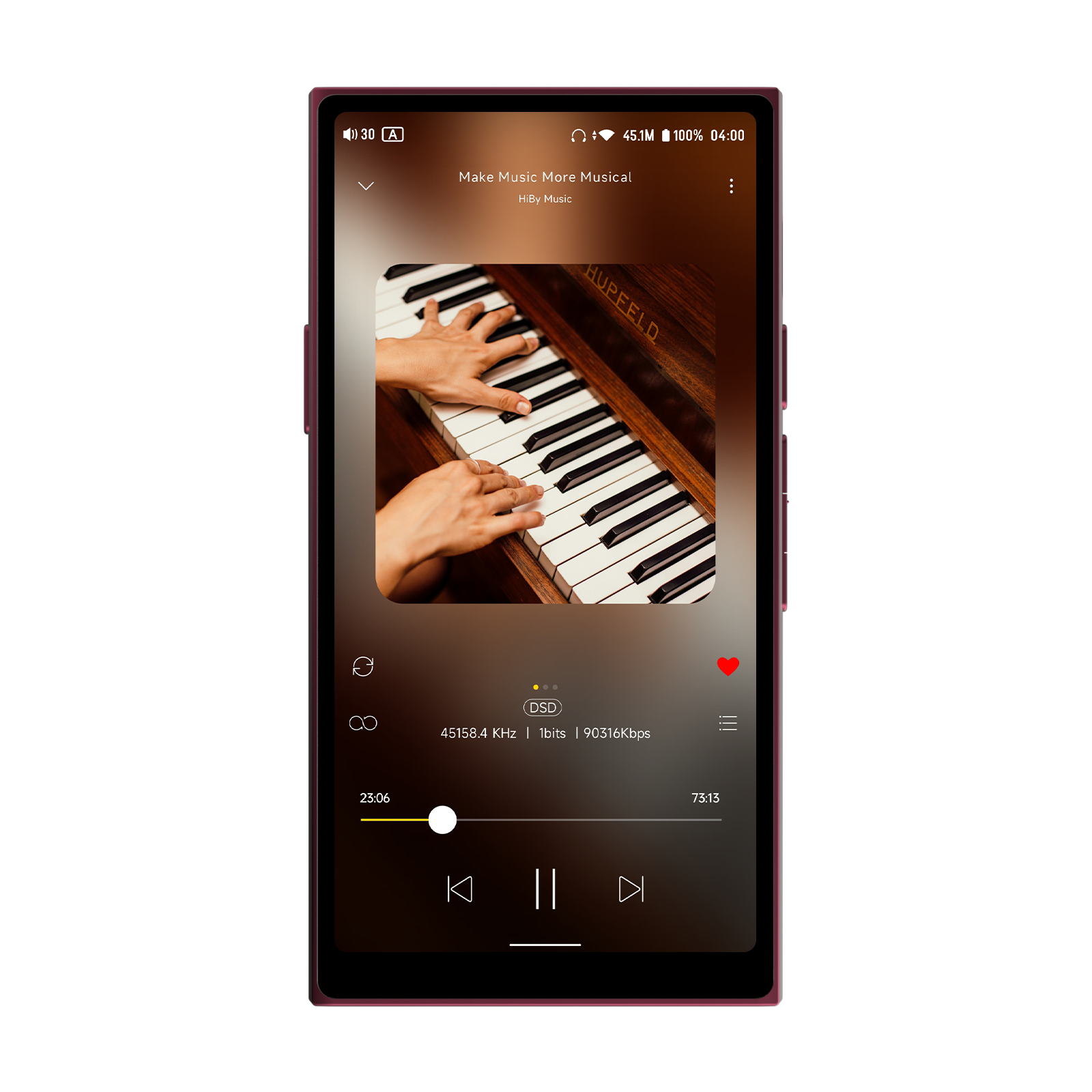

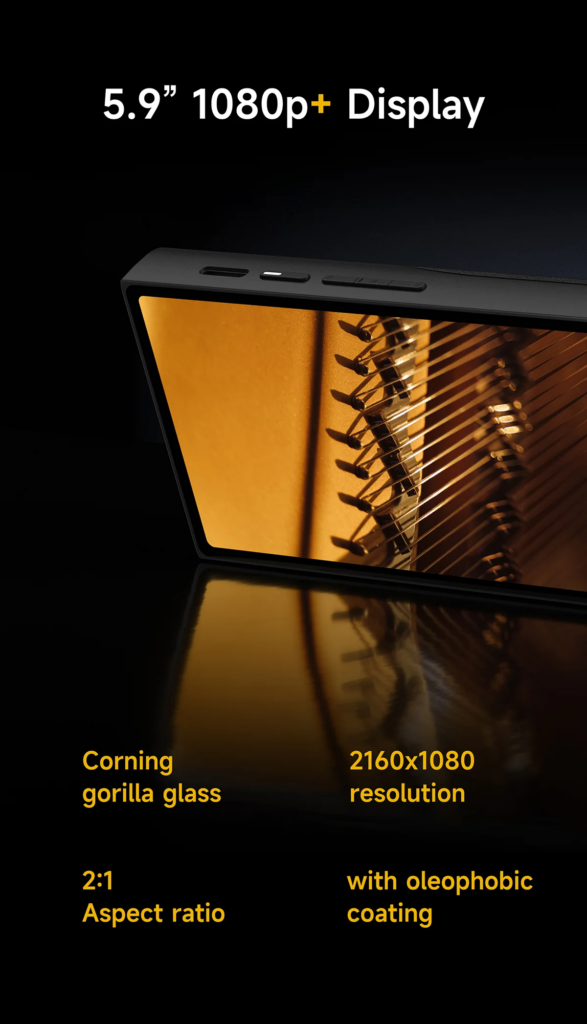

  • 5.9” Large Display with 1080p+ Resolution
  • USB Type-C 3.2 Gen2 Port
  • Systemwide Bit-Perfect Audio
  • Systemwide HiByCast Support
  • Industry-Leading PCM, DSD, and 16x MQA Decoding Support
  • Dual-independent 3.5mm and 4.4mm Outputs
  • Dual-Band WiFi, Bluetooth V5.0 Connectivity

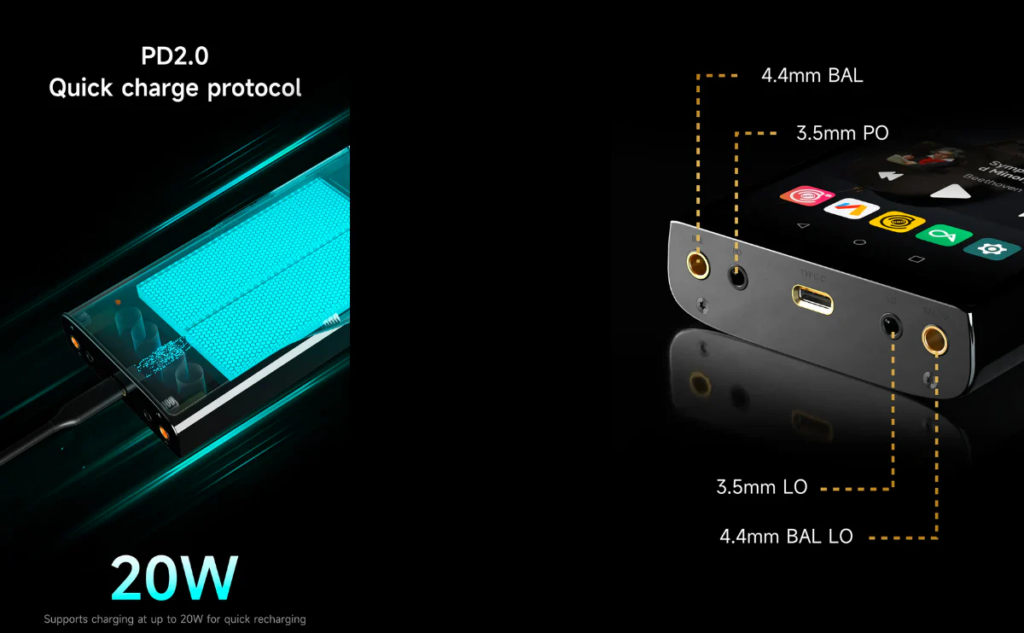

  • 20W PD2.0 Quick Charging Support

Specifications

Audio specifications
4.4mm PO@32Ω 4.4mm LO
Output impedance 10K
Output level 4.7Vrms 4Vrms
Output power 710mW /
THD 0.0008% 0.0004%
Channel separation 93dBr 103dBr
Bottom noise 5.4uVrms 3.3uVrms
SNR 116dB 123dB
Dynamic range 117dB 116dB
3.5mm PO@32Ω 3.5mm LO
Output impedance 10K
Output level 2.6Vrms 2Vrms
Output power 225mW /
THD 0.0008% 0.0003%
Channel separation 76dBr 101dBr
Bottom noise 3.2uVrms 2.1uVrms
SNR 115dB 120dB
Dynamic range 116dB 116dB
Detailed parameters
Main
Item Specification
Model HiBy R8 II
Operating System Android 12
Logic SoC Snapdragon 665
DAC Darwin-MPA architecture
Connectivity
Item Specification
WiFi Supports 2.4 and 5GHz
Bluetooth Bluetooth 5.0
USB USB 3.2 Gen2
Display
Item Specification
Size 5.9”
Type IPS
Resolution 1080*2160
Storage
Item Specification
RAM 8GB
Data storage 256GB
Micro SD 2TB
External
Item Specification
Colour choices Aluminium alloy silver, aluminium alloy black, aluminium alloy red
Body material aluminum alloy
Dimensions 1497823 mm
Weight 440g
Power
Item Specification
Charging power 20W
Battery capacity 12000mAh/3.8V
Charge time 5h
Misc
Item Specification
Firmware updates Supports OTA updates over WiFi
APP Third-party apps Unlimited installation and use

Description

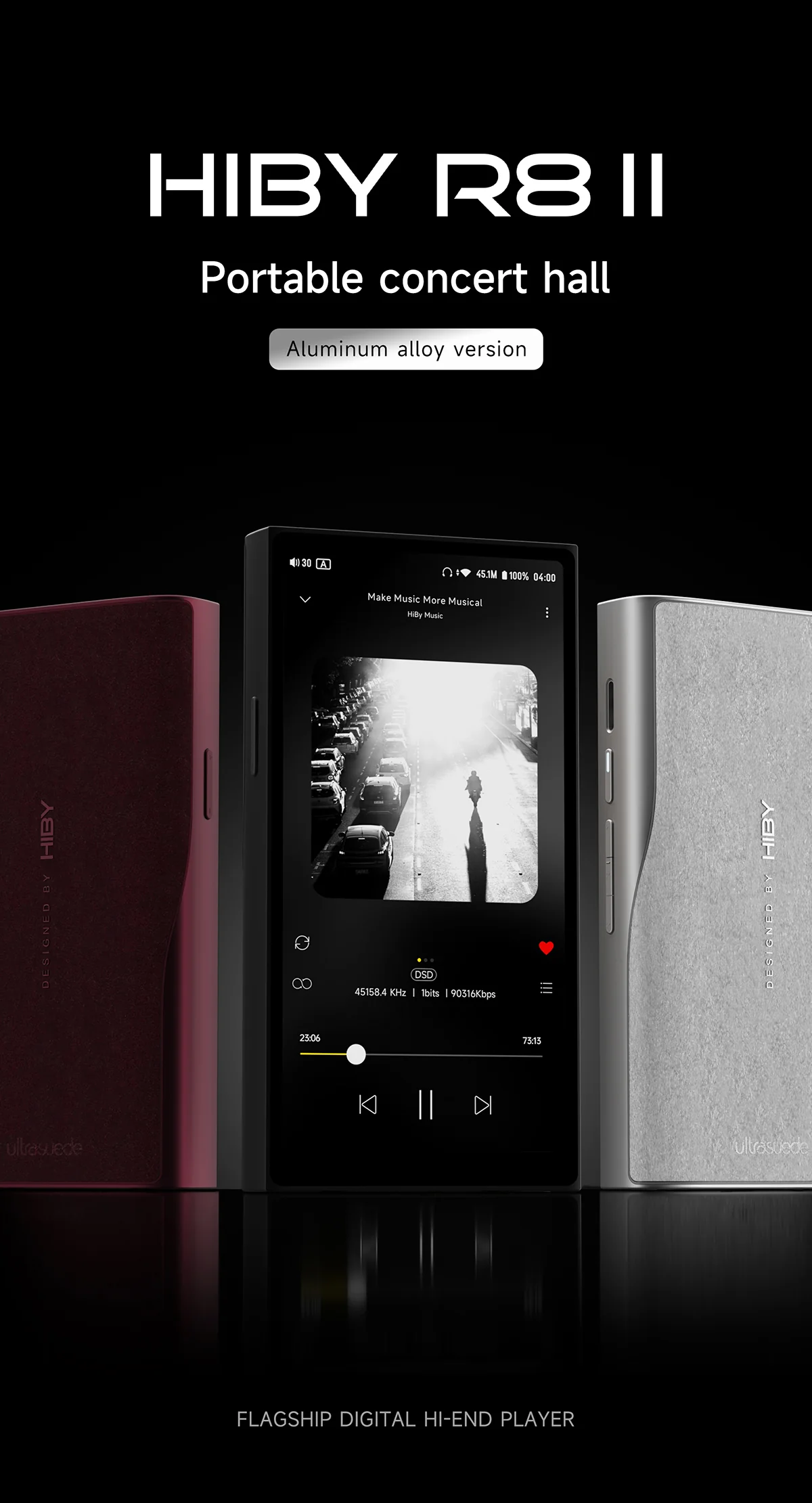

Experience The Sound Of A Concert Hall With The All-new Portable Digital Audio Player – The Hiby R8 II

Hiby introduces the portable concert hall, flagship digital audio player, and the all-new R8 II. HiBy has upgraded the original R8 and has launched the R8 II with the “Portable Concert Hall” ethos. R8 II takes one step further in filling out the large soundstage projected by the series with a new level of sound detail and density. The HiBy R8 aims to bring out the openness and power of an orchestral performance into a portable listening environment, all thanks to the all-new flexible Darwin-MPA architecture. The Multiphase PWM Array design of the HiBy R8 II adopts a 16-way current mode DAC paired with I/V conversion and LPF output stage. This design aims to create a detailed and crisp sound, which lets you experience a massive concert-hall-type feeling. HiBy has designed the R8 II with top-quality hardware aiming to deliver top-level sound performance, suitable for enthusiasts like you who look forward to experiencing hi-res sound. The HiBy R8 has intricate design details showcasing the exquisite craftsmanship of HiBy with a curvy stainless steel frame and a premium Alcantara back panel. Let’s discover the excellent performance of the HiBy R8 II.



Mobile Concert Hall


The R8 II Tuned in seeping with the “Portable Concert Hall” ethos of the original but takes one step further, in filling out the target soundstage projected by the Sartus Atha new level of detail and dynamics, truly wettentral performance into a portable listening environment, all thanks to the all-new Darwin MPA-Architecture.

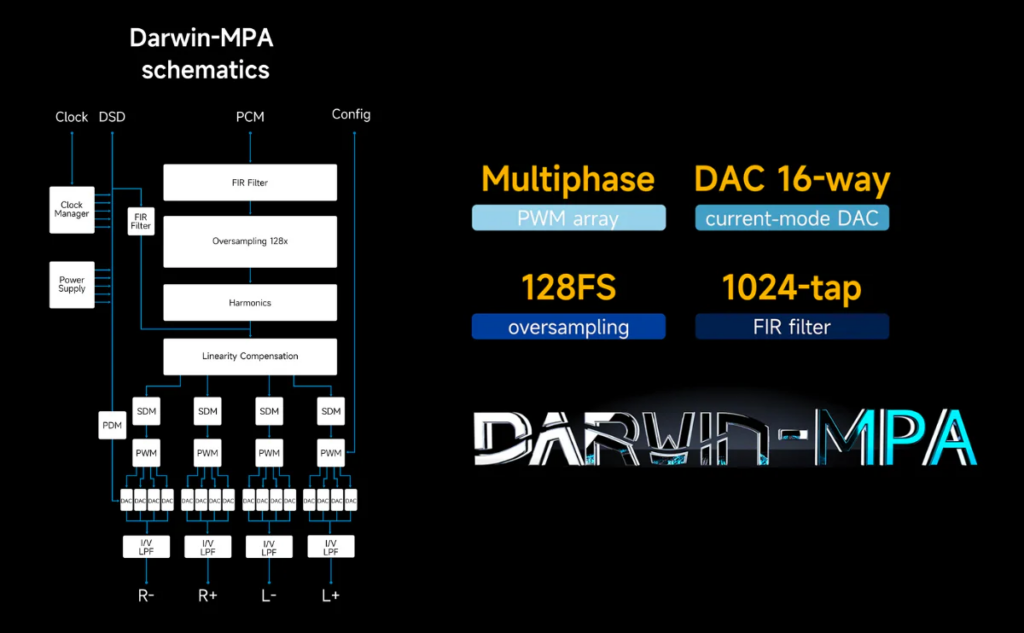

Darwin-MPA Technology Unleashed

The Darwin-MPA (Multiphase PWM Array) continues the flexible design of Darwin-R2R, having most of the same distinguishing features as Darwin-R2R. To work with the internal delta-sigma modulators, input signals are oversampled to 128x via the flexible Darwin v2 filter system (which may optionally emulate various types of non-oversampling DAC functionality via the 3 built-in NOS filters or follow a hybrid approach via the built-in Darwin Ultra filter). The oversampling (or non-oversampling) processing follows a cascaded FIR design with a highly precise 1024-tap opening stage.

16-way current mode DAC coupled with I-V conversion and lowpass of output stage creates a more detailed soundstage with good power efficiency.



Generation family design lines

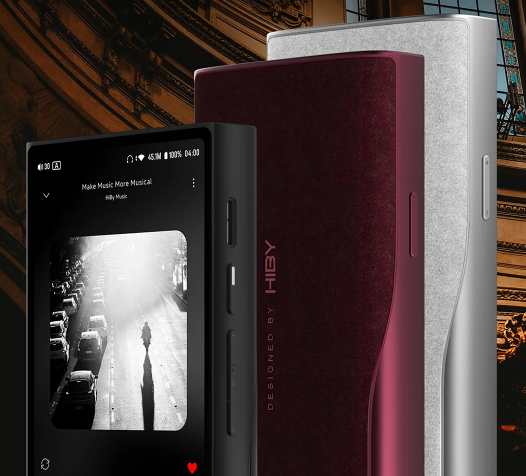

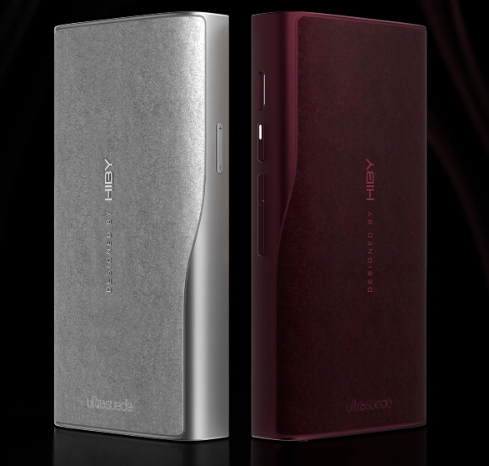

An asymmetrical design language of dual curves realizes an elegant curved surface that is at once visually stunning and comfortable to hold.Light dances along its curves just like how music dances through its circuits!
A chassis made of surgical-grade stainless steel material befitting the surgical precision of its audio quality. Possesses high tensile strength, exemplary resistance to rusting, wear and tear, able to retain its stunning visuals through long-term use.



Dual independent headamp circuitry, software switchable.

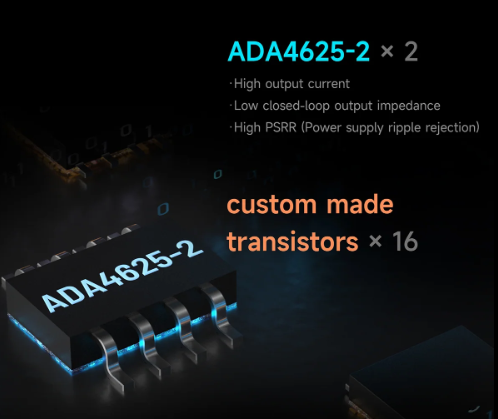

Universally acclaimed class-A amplification powered by 2 ADA4625-2 driver op-amps and 16 custom transistors for zero crossover distortion and fast transient response.

Unlock extra control over the earphones with Class A mode, increasing the sense of power, density of presentation, at the same time increasing control / “grip over the drivers for the kind of detailed, nuanced sound befitting a flagship no matter how complex the passage.

Class AB mode yields better battery life, less heat, at a sound quality level that will already satisfy most earphones on the market.



Dual Headphone Amplification with Turbo Mode

Experience universally acclaimed class-A amplification with the ADA4625-2 driver opamps and 16 custom transistors, ensuring zero crossover distortion and fast transient response. The R8 II offers Class A mode for detailed, nuanced sound and Class AB mode for improved battery life. Turbo mode, with a 25% power boost, provides a full-throttle audio experience.

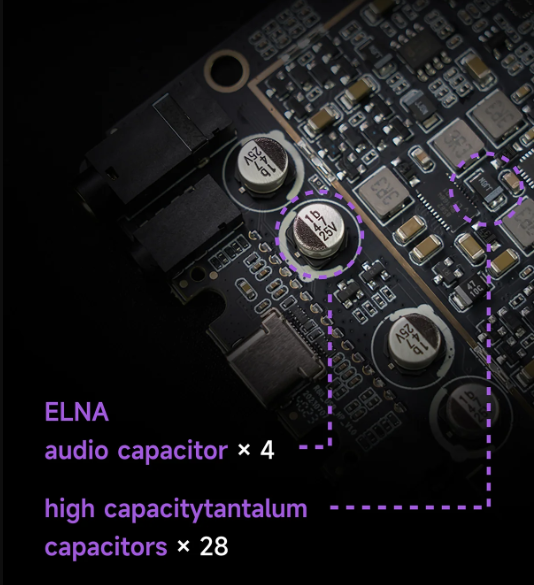

Flagship-grade analog circuit components


Including 4 tube-like Elna audio capacitors for an analogue, detailed sound character. Also, 28 high-density, high-capacity tantalum capacitors, a loadout befitting a king (of audio)!

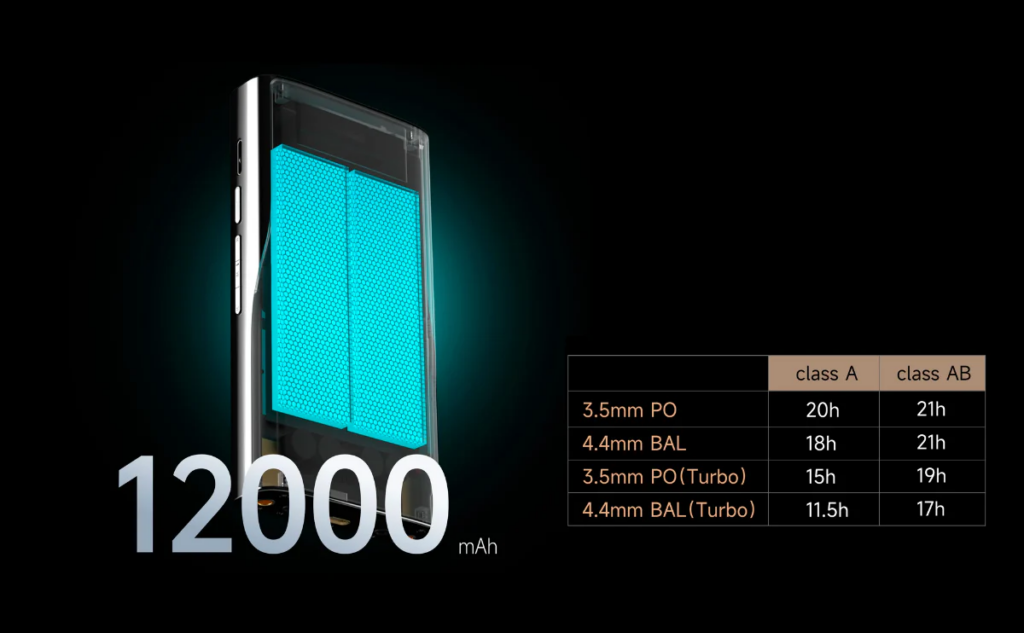

12000mAh huge battery Huge battery custom-made for shocking levels of power consumption ensures adequate room for using class A and turbo modes;

21 hours SE/ 11 hours balanced battery life comfortably powers through long trips, ensuring music accompanies you all the time!



Independent power supplies


Digital, D/A, preamp and postamp circuits are individually supplied with electricity with no cross-over.

Headphone amplifier circuit


Headphone amp is powered by a low-ripple DC/DC transformer + 3 high-flux, low-IR, fully shielded high-power inductors.

The ultrasonic lowpass

Lowpass filters are powered by a DC/DC transformer + 6 high PSRR +/-LDOs independently supplying left and right channels.

DAC power supply


The DAC is powered by a DC/DC transformer and 2 ultra-low ripple LDOs supplying left and right channels independently.



12000mAh huge battery


Huge battery custom-made for shocking levels of power consumption ensures adequate room for using class A and turbo modes.

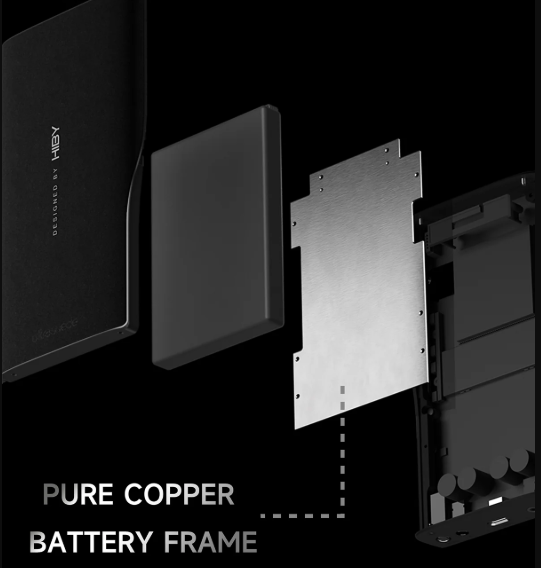

A HiFi firebrand that keeps its cool


Pure copper battery case is substantial in the hand, highly efficient in heat dissipation and keeps your player’s internals cool in the hottest situations

HiByOS-exclusive DTA technology circumvents Android SRC from the roots of the system, enabling bit-perfect audio from third-part apps simply from plugging your earphones in. Also enabling bit-perfect audio on the USB audio output



HiByCast Systemwide HiByCast remote control


Breaking boundaries, allowing remote control of all functions of the R8 II on smartphones and tablets alike, HiByCast allows you to control opening and operation of even third party apps on the R8 II remotely on your other smart devices, opening the door to using the R8 Il in home entertainment, connected to audio receivers etc. while controlling its operation from your couch using e.g your smartphone.
