£1,949
| Analogue input parameter | |
| Inputs (stereo) | 2 x RCA, unbalanced |
| Max. input voltage | + 21 dBu, Input impedance: 10 kohm |
| Digital input parameter | |
| Digital PCM inputs | 1 x optical up to 24 bit, 192 kHz |
| 1 x coaxial up to 24 bit, 192 kHz | |
| Digital USB input | PCM up to 32 bit, 384 kHz |
| DSD 64 – 256 | |
| D/A converters | 2 x 4 paralleled channels |
| 32 bit | |
| -110 dB THD+N | |
| 124 dB dynamic range | |
| Analogue line out parameter | |
| Line outputs (stereo, analogue) | 1 x XLR male, Balanced |
| 1 x RCA unbalanced | |
| Max. output voltage | + 21 dBu, Output impedance : 1 Ohm |
| Headphone amp parameter | |
| Nominal input sensitivity | +6 dBu |
| Feedback gain | 0 dB unbalanced / +6 dB balanced |
| Pre-Gain | -18 / -12 / -6 / 0 / +6 / +12 / +18 dBr |
| Frequency range | 5 Hz … 250 kHz (- 0.5 dB) |
| Output impedance | 0.15 Ohm unbalanced |
| 0.3 Ohm balanced | |
| Damping factor (Load 50 Ohm) | 320 unbalanced |
| 160 balanced | |
| Dynamic range | > 131 dB (A-wtd) |
| Noise | < -102 dBu (A-wtd) |
| THD+N (1kHz/2x10V/100R = 1W) | < -102 dB / < 0.0008 % |
| THD+N (1kHz/2x4V/32R = 0.5W) | < -100 dB / < 0.001 % |
| Crosstalk | -105 dB (1 kHz) / -100 dB (15 kHz) |
| Headphone outputs | 1 x 4-pin XLR balanced |
| 1 x Pentaconn balanced | |
| 1 x 6.3 mm TRS jack | |
| General | |
| Supply voltage | 230 V AC / 115 V AC max. 25 VA |
| Front, Back | 6 mm / 3 mm Aluminum, black anodized |
| Case | 3 mm / 4 mm Aluminum, black anodized |
| Case dimensions | 290 x 80 x 254 mm (W x H x D) |
| Overall dimensions | 290 x 90 x 282 mm (W x H x D) |

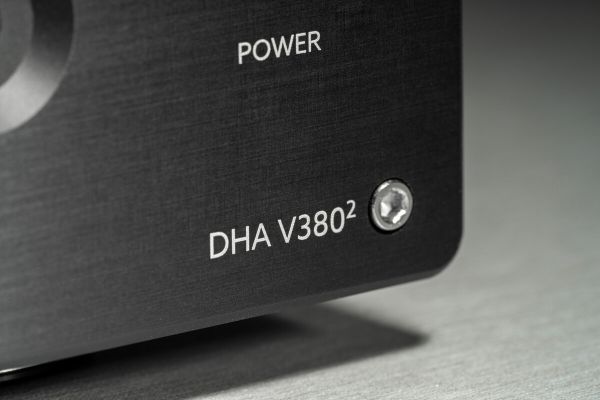

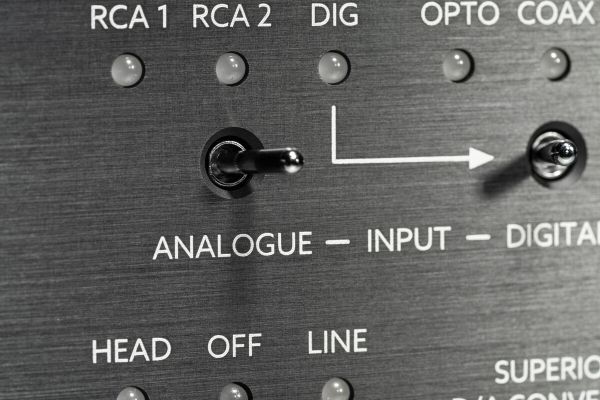

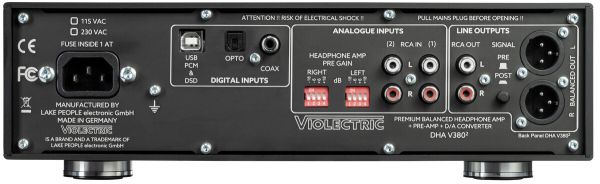

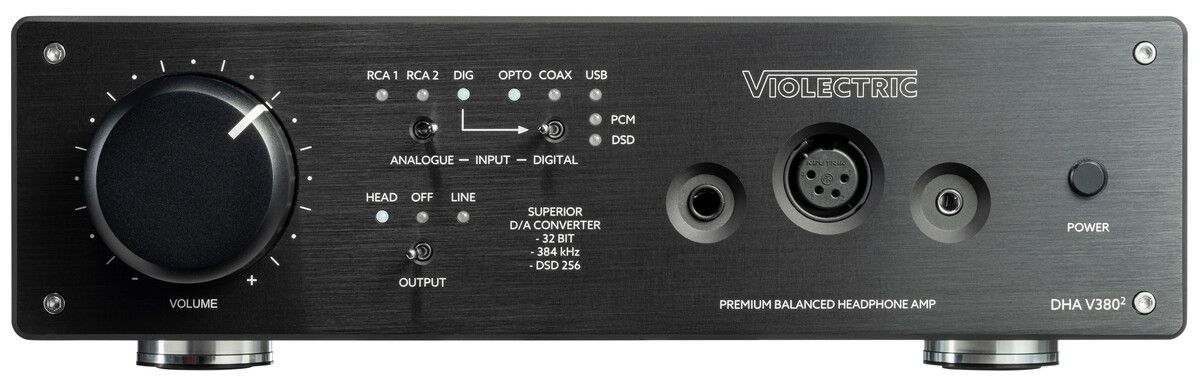

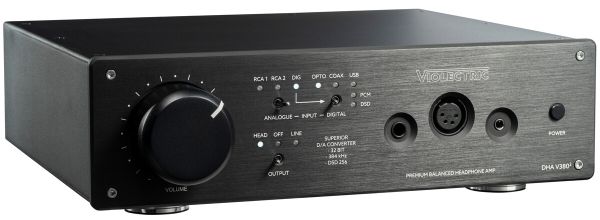

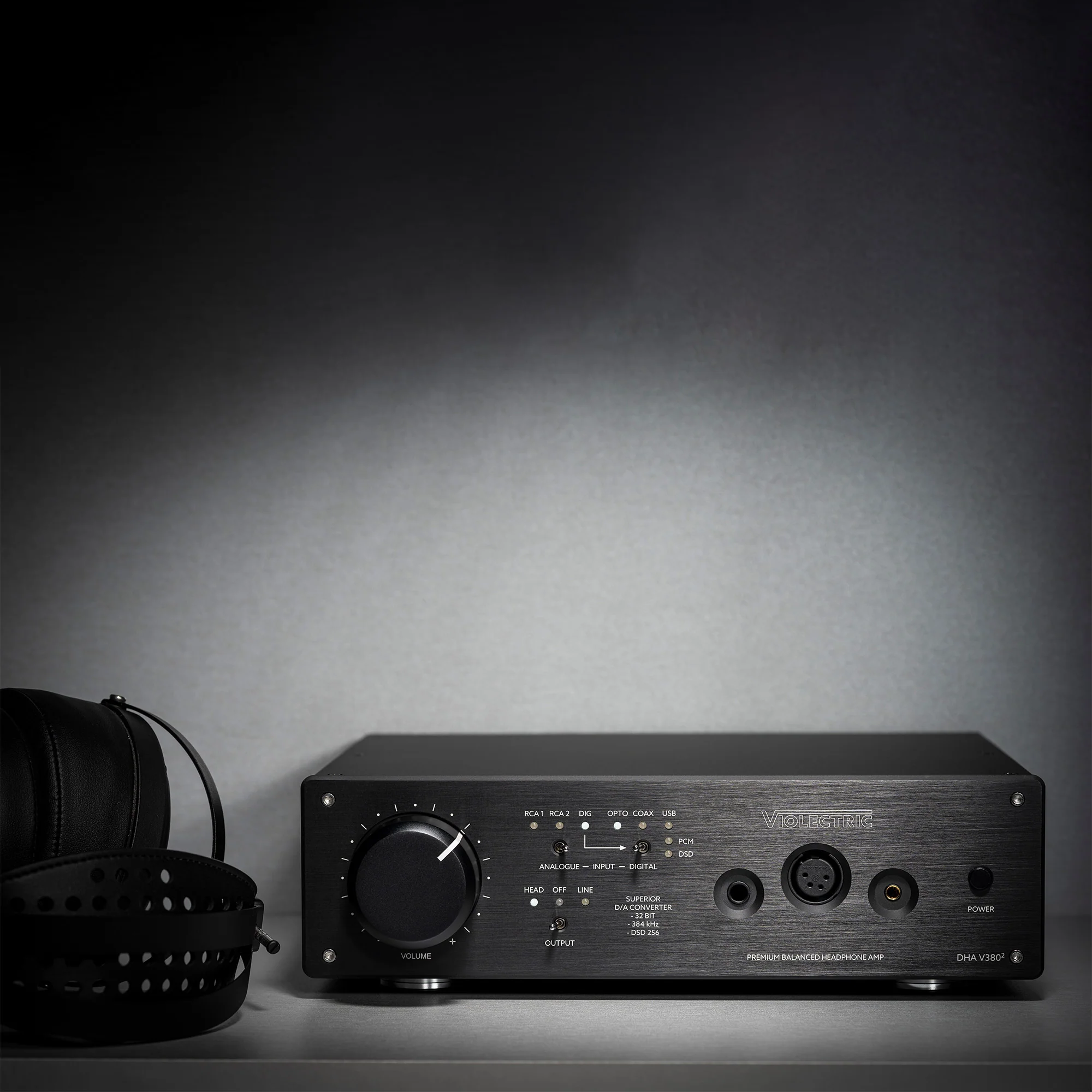

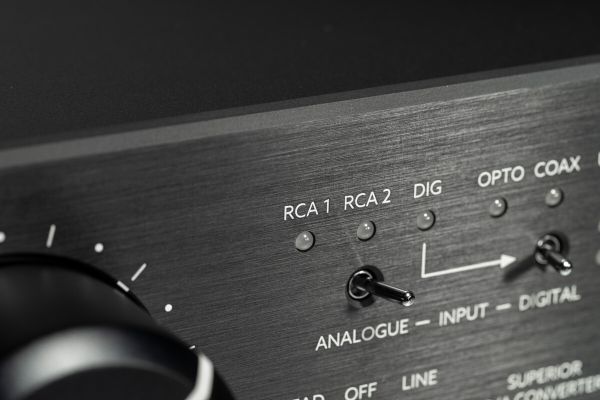

The Violectric DHA V380 is a new top device in the Violectric range. It offers a state-of-the-art DAC and a balanced headphone amplifier and a pre-amp function.
The DAC is a new development and includes a 32-bit resampler / reclocker and two 32-bit DACs per channel.
The latest findings from the multiple test winners from Lake People, Violectric and Niimbus were implemented in the headphone amplifier.
Through a very small amount of internal gain. This makes the amplifier’s self-generated noise inaudible.
Through 50 V internal operating voltage. Therefor ideally suited for high-impedance headphones deserving high output voltage swing.
Thanks to powerful amplifiers that offer far more power even the most demanding headphones would need. So best suited for headphones with low impedances as well as magnetostatic headphones !!
Due to lowest output impedance. Therefor the ideal match for difficult to drive headphones without negative side effects and with the guarantee for a uncompromising frequency response.
| Colour | Black |
|---|
