Features
- Flagship desktop DAC & headphone amplifier
- Dual AK4499EX DACs with AK4191EQ processors
- Supports DSD512 & PCM up to 768 kHz
- High-power balanced headphone output
- Multiple digital & analogue connectivity options

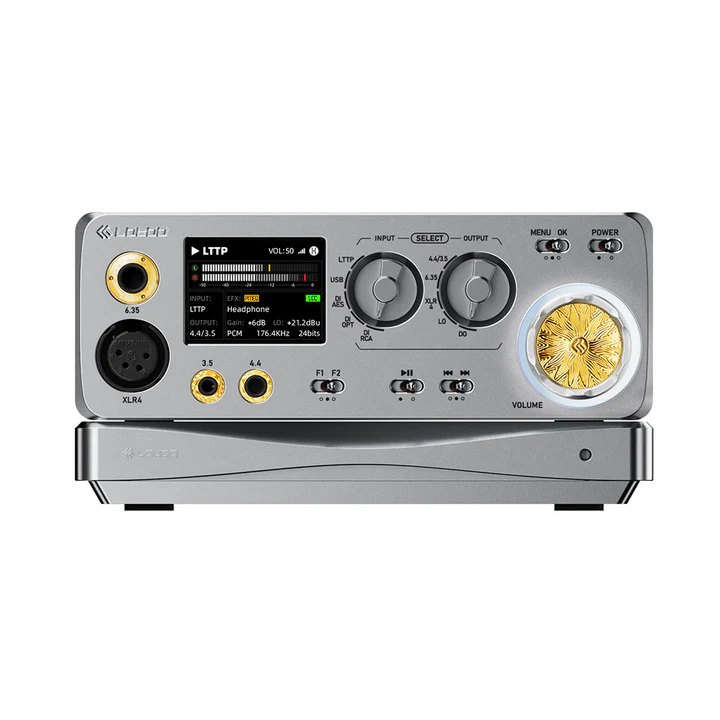

Lotoo Gungnir Desktop DAC/Amp
Lotoo Gungnir Desktop DAC/Amp
Now on demonstration in store
Now on demonstration in store
Guaranteed In Stock
Guaranteed In Stock
Free Deliver 7 - 14 daysFree Deliver 7 - 14 days
1-year-warranty
Trade in productTrade in product
Book a Demonstration
Available to collect immediatelyAvailable to collect immediatelyPrice range: £2,699 through £2,999
Specifications
Core Hardware
| Category | Specification |
|---|---|
| Display | 2.0″ TFT LCD |
| Processor | ADI Blackfin BF706 DSP |
| DAC Chips | 2 × AK4499EX + 2 × AK4191EQ |
| SRC (Sampling Rate Converter) | AK4137EQ |
| Amplifier Chips | BUF634A × 12 |
| Playback Sampling Rates | DSD512 / PCM 768 kHz |
| Wireless Audio | Lotoo LTTP (lossless) |

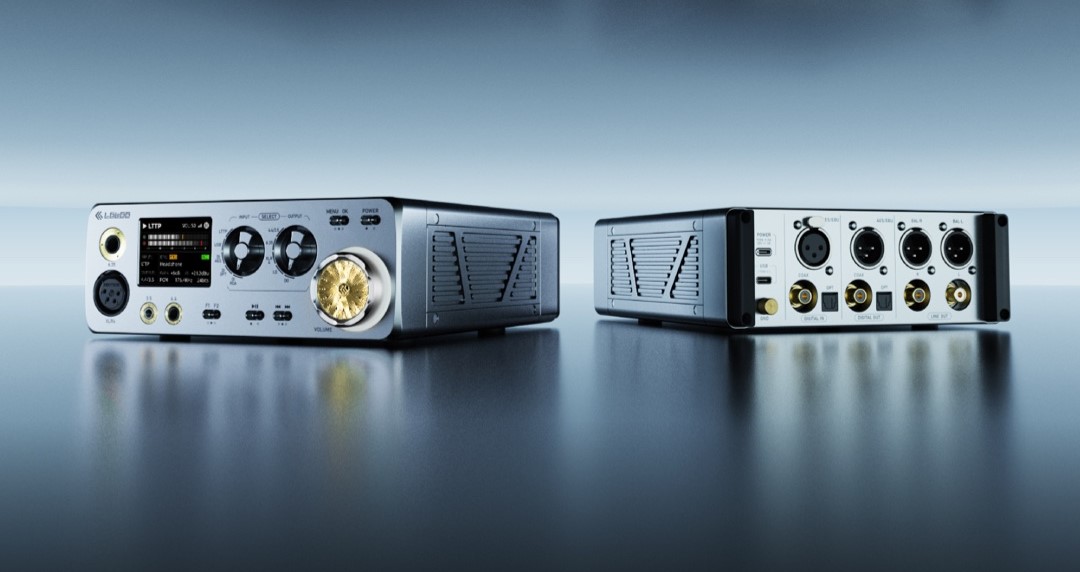

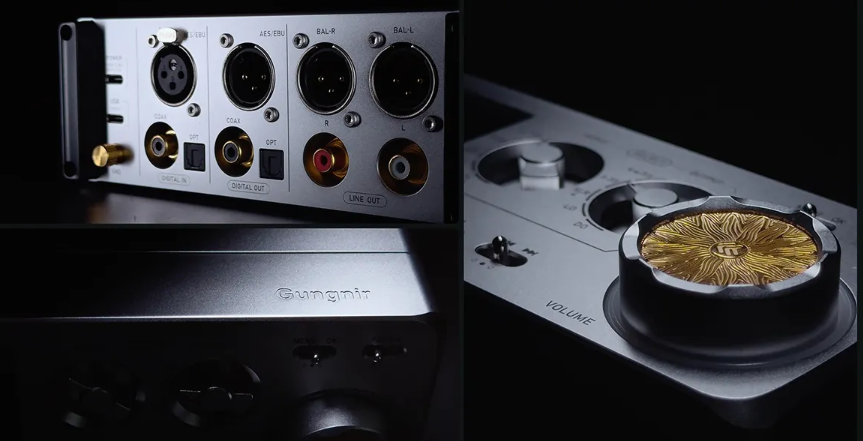

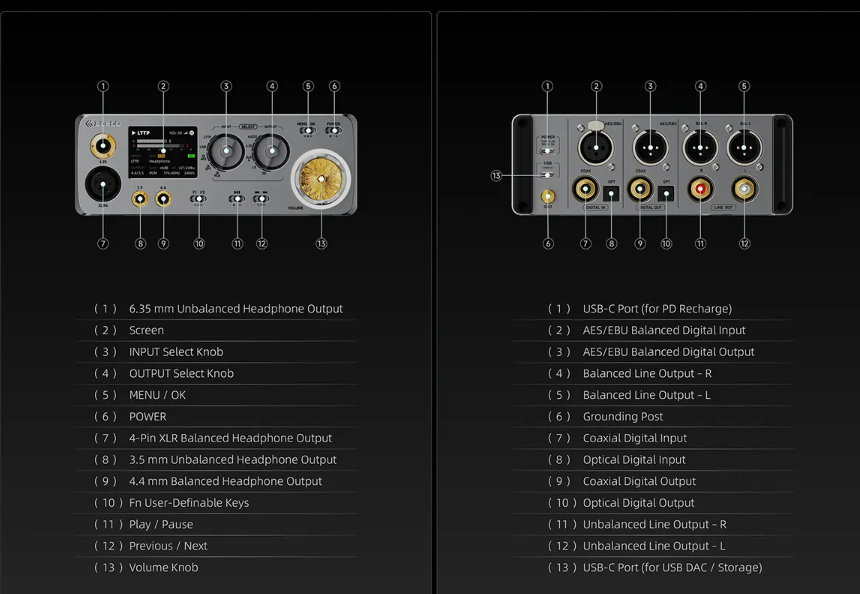

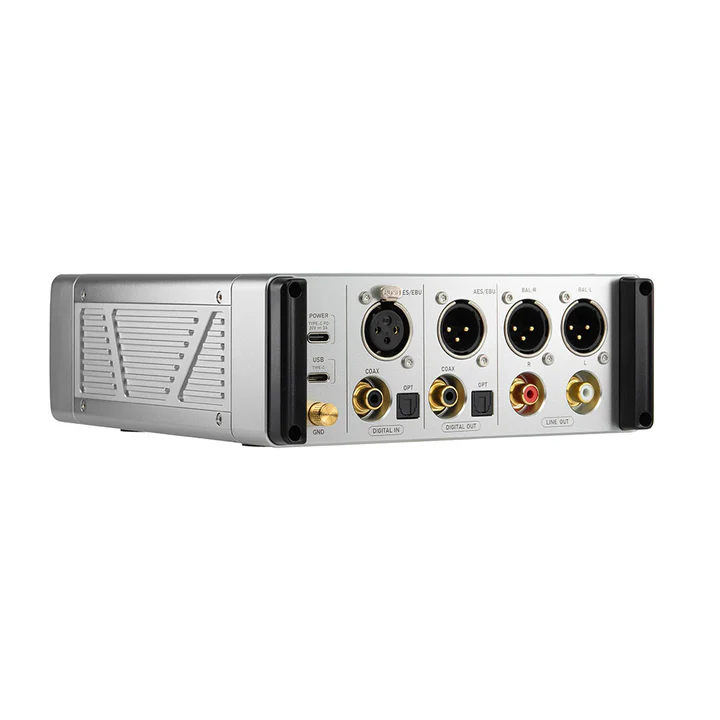

Inputs & Outputs
| Type | Connections Supported |
|---|---|
| USB | USB Type-C |
| Digital Input | XLR (AES/EBU), Coaxial (SPDIF), Optical (SPDIF) |
| Digital Output | XLR (AES/EBU), Coaxial (SPDIF), Optical (SPDIF) |

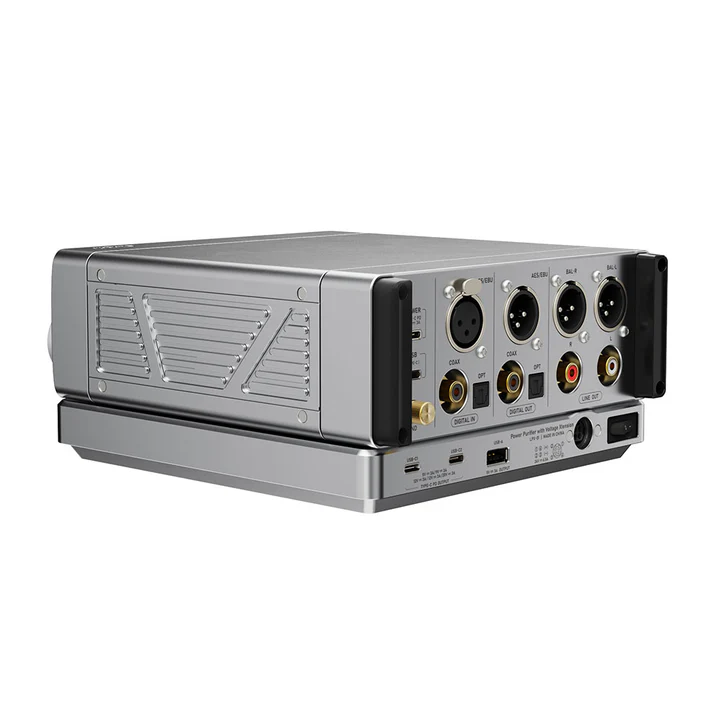

| Line Output | XLR Balanced, RCA Unbalanced |
| Headphone Outputs | 3.5mm, 6.35mm (unbalanced); 4.4mm & 4-pin XLR (balanced) |
Power & Physical
| Feature | Specification |
|---|---|
| Power Supply | USB Type-C PD3.0 20V / 3A |
| Size | 183 × 175 × 63 mm (excluding protrusions) |
| Weight | 1800 g |
| Firmware Upgrade Support | Yes |
Balanced (4.4mm) Headphone Output – Audio Specs
| Specification | Value |
|---|---|
| Frequency Response | +0.03 / −0.07 dB (20–20 kHz) |
| THD+N | 0.00025% @ 1 kHz (no load) |
| S/N Ratio | 132 dB (A-weighted) |
| Max Output Level | +27.0 dBu (High Gain) / +4.0 dBu (Low Gain) |
| Max Output Power | 8100 mW @ 32Ω, 3100 mW @ 100Ω, 1000 mW @ 300Ω, 520 mW @ 600Ω |
| Channel Separation | 131 dB |
| Dynamic Range | 132 dB |
| Noise Floor | 1.2 µV |
Single-Ended (3.5mm) Headphone Output – Audio Specs
| Specification | Value |
|---|---|
| Frequency Response | +0.03 / −0.01 dB (20–20 kHz) |
| THD+N | 0.00037% @ 1 kHz |
| S/N Ratio | 130 dB |
| Max Output Level | +21.0 dBu (High Gain) / −2.0 dBu (Low Gain) |
| Max Output Power | 2200 mW @ 32Ω, 780 mW @ 100Ω, 260 mW @ 300Ω, 130 mW @ 600Ω |
| Dynamic Range | 130 dB |
| Noise Floor | 1.4 µV |
Description

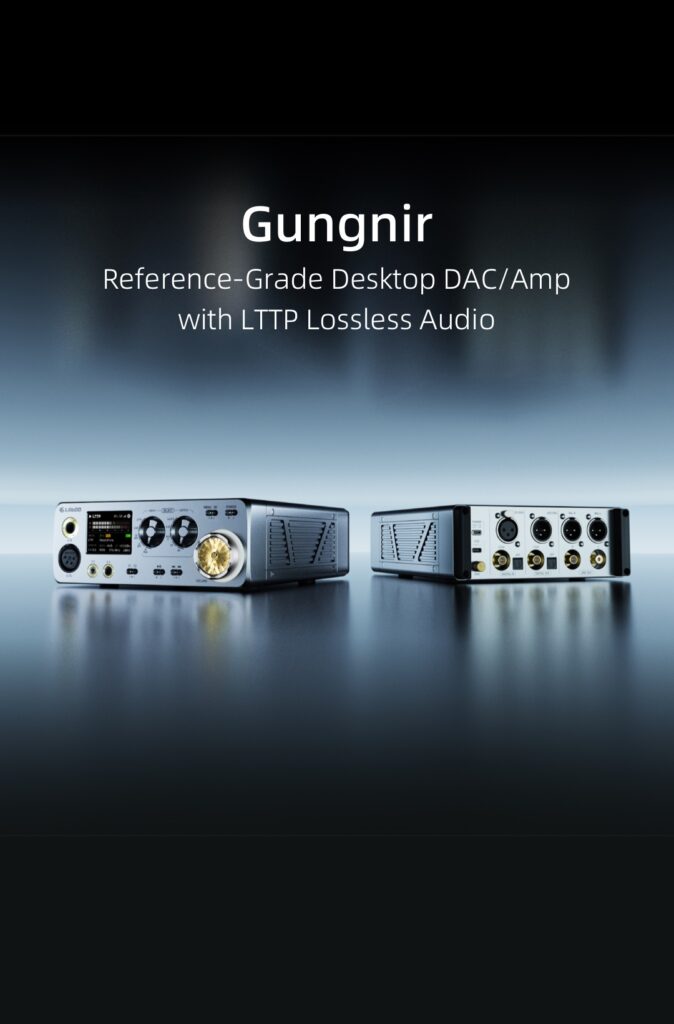

Gungnir
Reference-Grade Desktop DAC/Amp with LTTP Lossless Audio

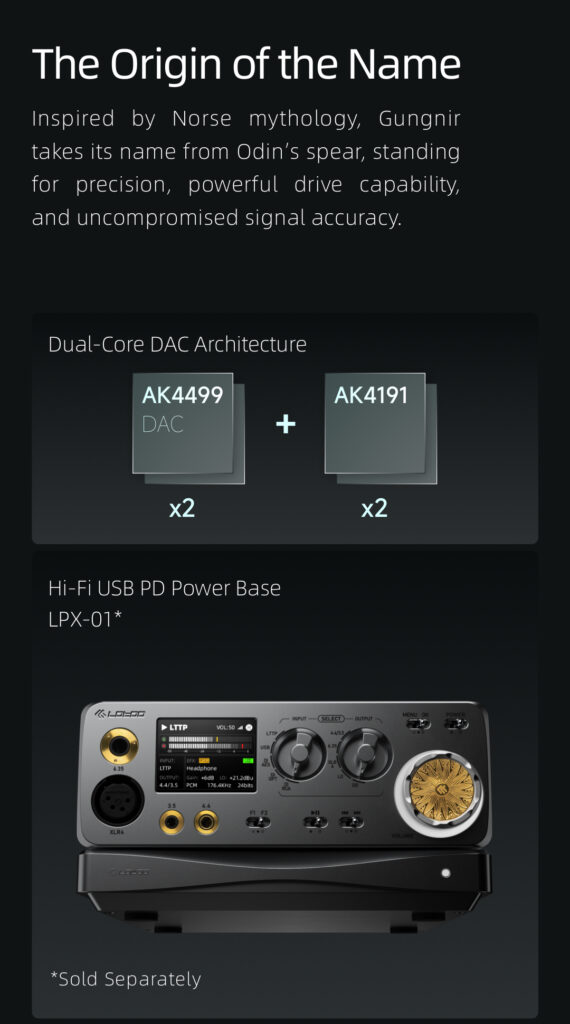

The Origin of the Name
Inspired by Norse mythology, Gungnir takes its name from Odin’s spear, standing for precision, powerful drive capability, and uncompromised signal accuracy.

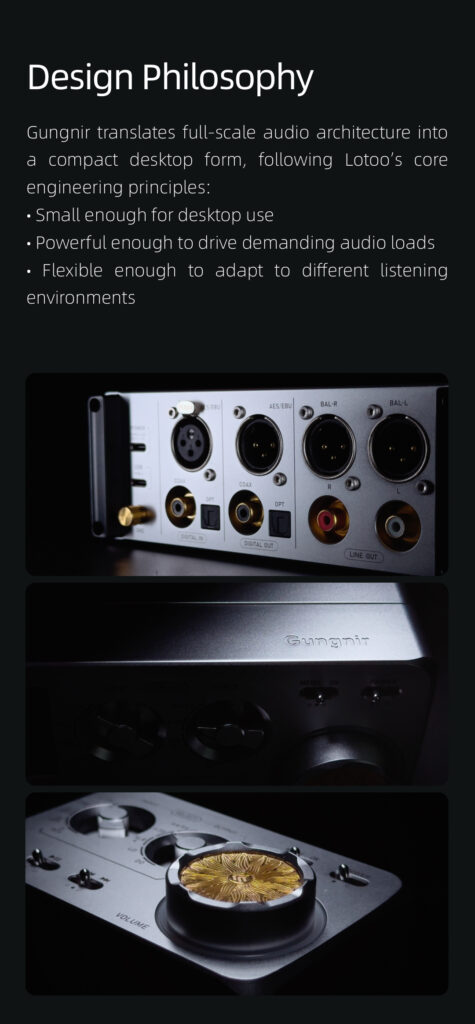

Design Philosophy
Gungnir translates full-scale audio architecture into a compact desktop form, following Lotoo’s core engineering principles:
Small enough for desktop use
Powerful enough to drive demanding audio loads
Flexible enough to adapt to different listening environments
Dual-Core DAC Architecture
Gungnir adopts a dual AK4499 + AK4191 DAC topology, operating in full-performance balanced differential mode.
Supports high-bit-rate PCM and native DSD playback, preserving details, dynamics, and fine layering.

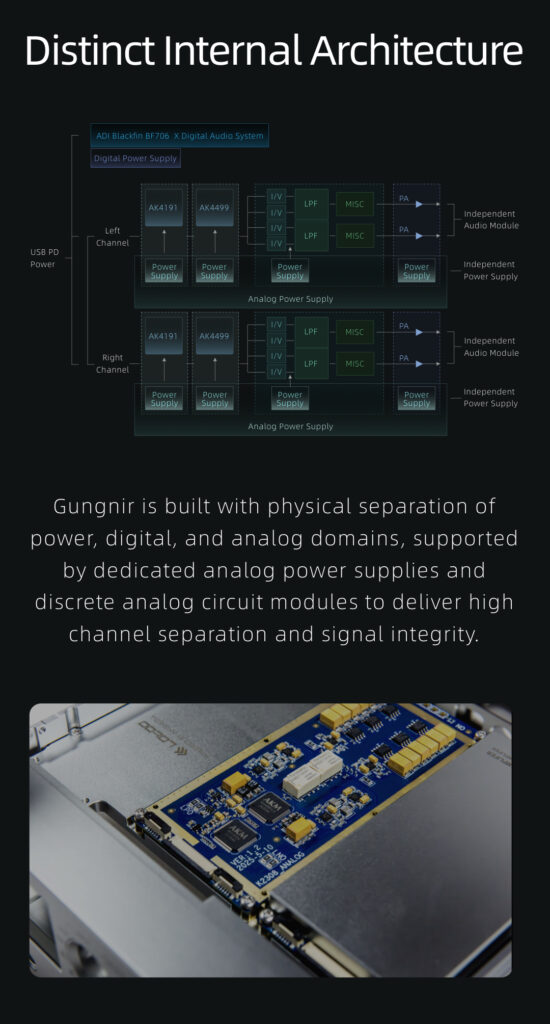

Distinct Internal Architecture
Gungnir is built with physical separation of power, digital, and analog domains, supported by dedicated analog power supplies and discrete analog circuit modules to deliver high channel separation and signal integrity.

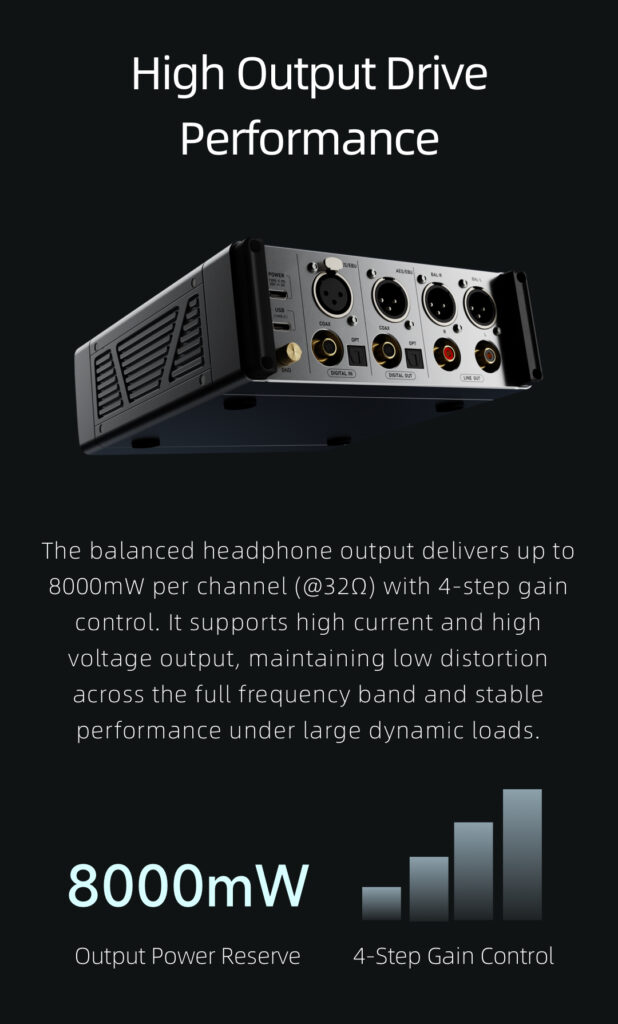

The balanced headphone output delivers up to 8000mW per channel (@320) with 4-step gain control. It supports high current and high voltage output, maintaining low distortion across the full frequency band and stable performance under large dynamic loads.
LCC, PMEQ II and ATE Enhanced Sound System
Gungnir integrates Lotoo’s proprietary LCC (Load Capacitance Compensation) for headphone load matching, along with ATE (Acoustic Transient Enhancement filter algorithm) and PMEQ II (2nd-Gen Parametric EQ), forming a complete system-level sound tuning solution from hardware compensation to digital signal shaping.

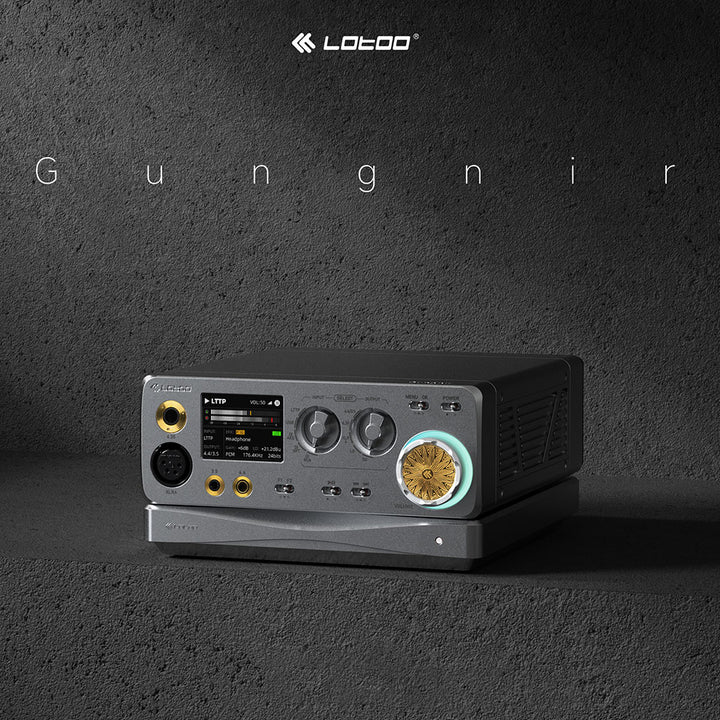

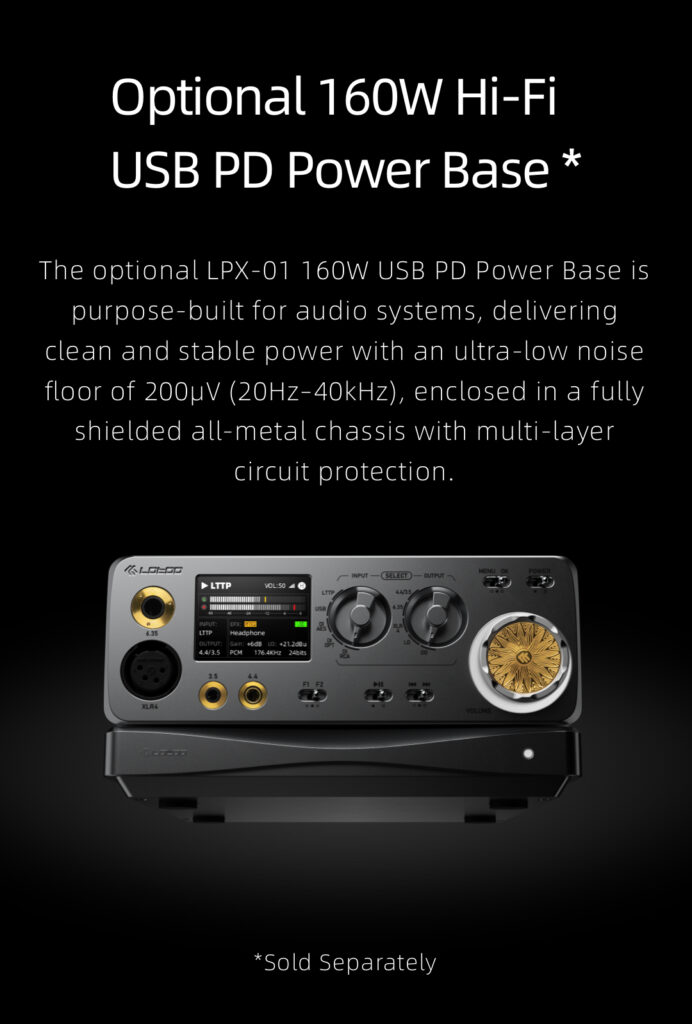

Optional 160W Hi-Fi USB PD Power Base *
The optional LPX-01 160W USB PD Power Base is purpose-built for audio systems, delivering clean and stable power with an ultra-low noise floor of 200μν (20Hz-40kHz), enclosed in a fully shielded all-metal chassis with multi-layer circuit protection.
Fully Supports
LTTP Lossless Wireless Streaming
Gungnir supports the LTTP wireless protocol, powered by Adaptive Bandwidth Management and High-Precision Clock Control for stable, bit-accurate streaming. It handles up to 96kHz/24-bit Hi-Res audio and up to 48kHz/24-bit true lossless streaming. Playback stays native, with no SRC conversion required. Built-in data verification ensures bit-perfect consistency.

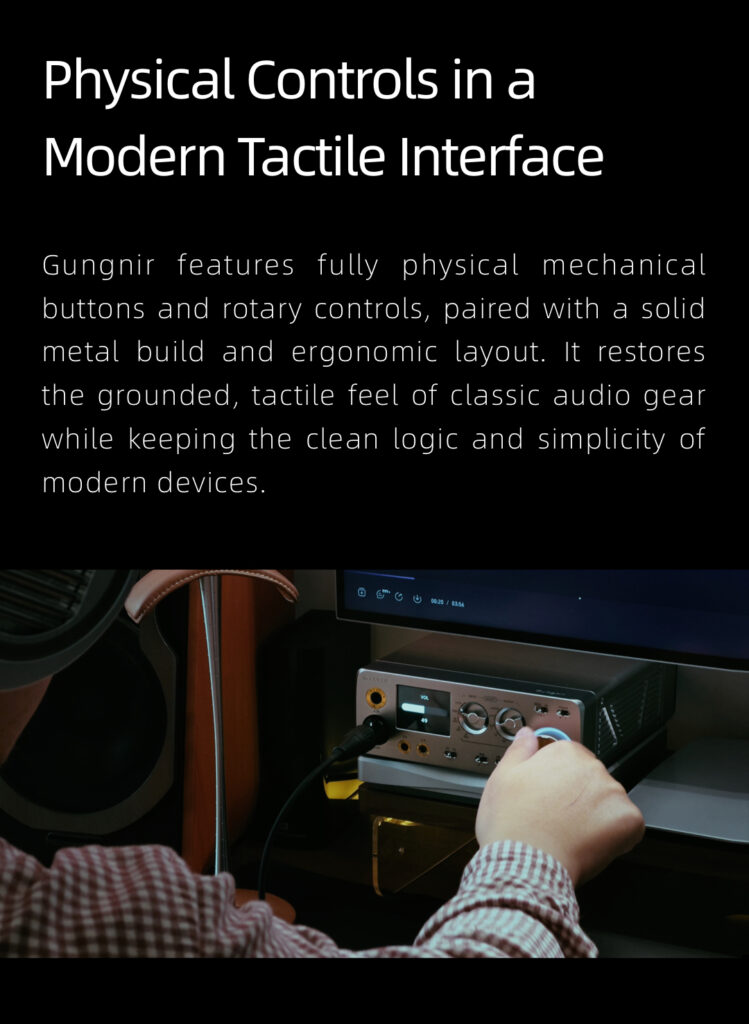

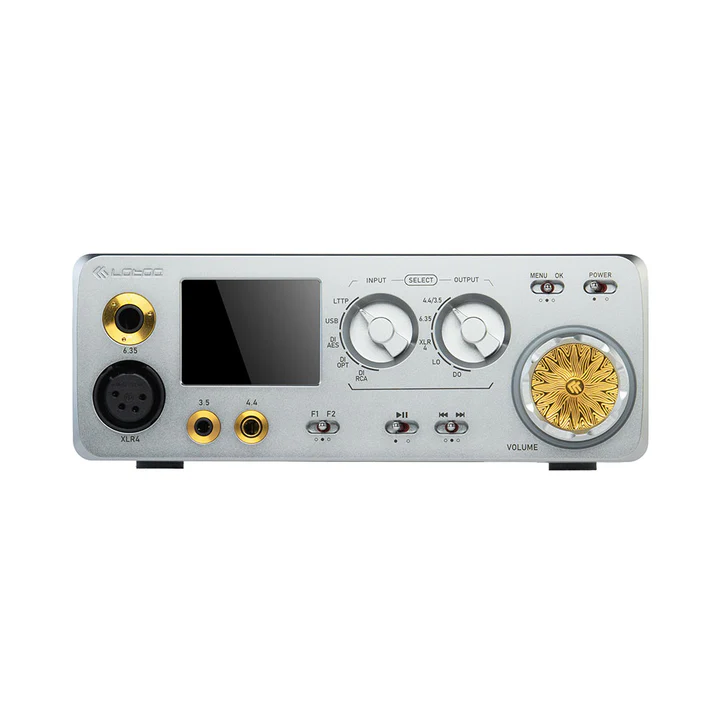

Physical Controls in a Modern Tactile Interface
Sungnir features fully physical mechanical buttons and rotary controls, aired with a solid metal build and ergonomic layout. It restores the rounded, tactile feel of classic audio gear while keeping the clean ogic and simplicity of modern devices.

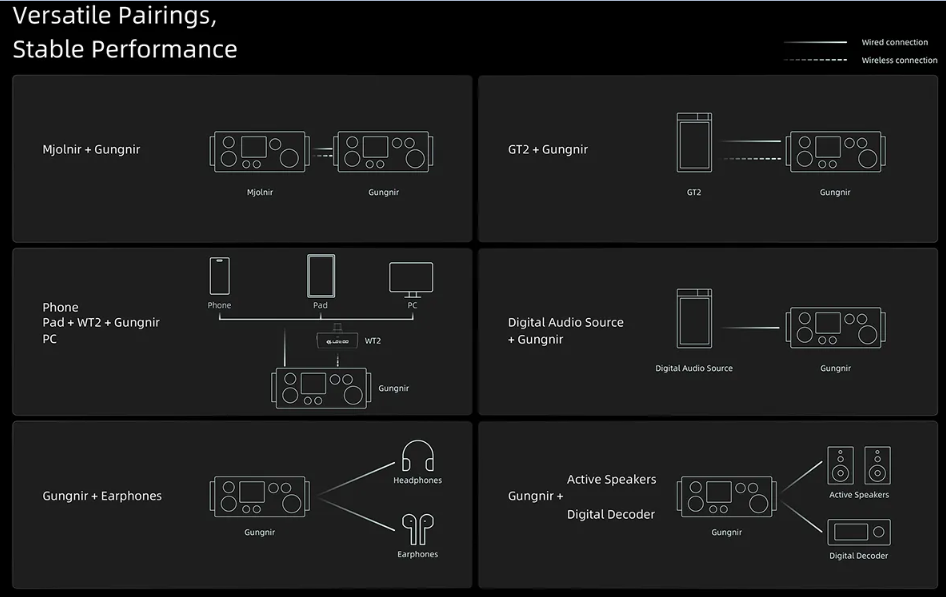

Versatile Options
Additional information
| Adapter Option | with PD Power Supply, without PD Power Supply |
|---|
Warranty
Backed with a 1-year Lotoo warranty
